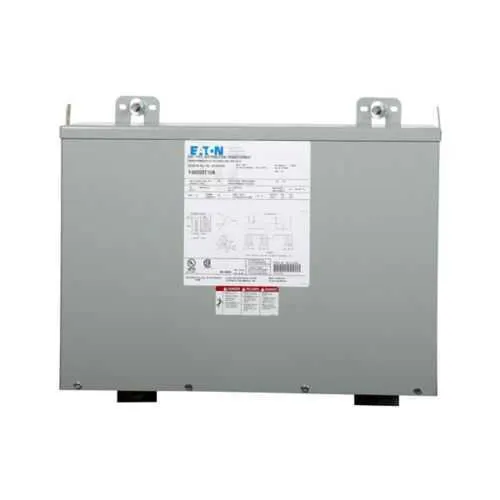

Eaton Y85N22F09XES General-Purpose Transformer - UL Listed
Part Number: Y85N22F09XES
Quick Summary
Eaton general-purpose encapsulated transformer provides reliable power conversion for industrial control panels and automation equipment. In the field, space, heat, and maintenance demands can compromise uptime and safety. This UL Listed, NEMA 3R enclosure transformer supports indoor-outdoor installation and corrosion-resistant aluminum coils, delivering consistent performance. It is designed for 9 kVA, three-phase systems at 50–60 Hz with a primary range of 380–480 V and secondary outputs of 120/240 V. This combination helps minimize wiring complexity and improves panel power quality, supporting efficient distribution in power management applications and machine automation programs.
Product Information
Extended Description
Y85N22F09XES Eaton: Eaton General purpose encapsulated transformer, EPT, aluminum, NEMA 3R, 96, 50-60 Hz, three-phase, 380 V, 400 V, 415 V, 440 V, 460 V, 480 V, 240 V, 120 V, NONE, 115 °C rise, 9 KVA, indoor-outdoor, S452L9C
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
Y85N22F09XES
UPC
786685199108
Product Length/Depth
9.42 in
Product Height
16.19 in
Product Width
29.68 in
Product Weight
310 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Coil material
Aluminum
Design
EPT
Enclosure
NEMA 3R
Frame
96
Tap size
None
Type
General-Purpose Encapsulated Transformer
Wiring connection
S452L9C
Frequency rating
50-60 Hz
Phase
Three-phase
Primary voltage
380 V, 400 V, 415 V, 440 V, 460 V, 480 V
Secondary Voltage
240 V, 120 V
Temperature rise
115 °C rise
Volt ampere rating
9 kVA
Special features
Electrostatically shielded
Weathershield
Indoor-Outdoor
Feature: General-purpose encapsulated transformer with NEMA 3R indoor-outdoor enclosure. Business Impact: Enables reliable operation across variable environments while protecting critical windings and connections. Application: Ideal for control panels and outdoor equipment enclosures in process and manufacturing settings. Feature: Aluminum coil construction. Business Impact: Improves heat dissipation and corrosion resistance, extending service life in harsh plants. Application: Suitable for dusty or humid facilities where EMI management is important. Feature: 9 kVA three-phase rating and 50–60 Hz operation. Business Impact: Supports substantial load transfer with improved efficiency and reduced size for panel layouts. Application: Powering medium-load automation equipment and motor control centers. Feature: Primary 380–480 V and secondary 120/240 V. Business Impact: Simplifies integration with standard industrial power systems and downstream distribution. Application: Wiring for machine tools, conveyors, and process equipment. Feature: Electrostatics shielding and UL certification. Business Impact: Reduces EMI and ensures regulatory compliance for panel installations. Application: Compliance-focused installations in regulated environments. Feature: S452L9C wiring and 96-frame configuration. Business Impact: Supports robust, repeatable installations with clear wiring documentation. Application: Field retrofits and new builds in established Eaton downstream ecosystems. Feature: Indoor-Outdoor capability with 115 °C rise rating. Business Impact: Provides generous thermal margin and long-term reliability in mixed environments. Application: Utility rooms, plant floors, and outdoor equipment enclosures where weather exposure is a concern.
Get a Quick Quote for a Eaton Y85N22F09XES
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Y85N22F09XES?
Enquire Now
FAQs
For panel installations, plan for a 96-frame enclosure with three-phase 380–480 V primary and 120/240 V secondary outputs. Use the S452L9C wiring designation for connections and accommodate the NEMA 3R indoor-outdoor enclosure. Ensure adequate clearance for heat dissipation at 115 °C rise and verify UL Listed compliance before commissioning.
Key specs include a 9 kVA volt-ampere rating, three-phase configuration, 50–60 Hz frequency, primary voltages of 380–480 V, and secondary voltages of 120/240 V. The unit uses aluminum coil material, features a NEMA 3R enclosure, and is designed for indoor-outdoor service with an electrostatically shielded construction.
Yes. The transformer comes with a NEMA 3R enclosure suitable for indoor-outdoor use, and its aluminum winding plus electrostatic shielding support EMI control in outdoor environments. Ensure mounting clearances and ambient conditions meet the catalog specifications and that UL listing is maintained in the field.
The unit is UL Listed, indicating recognized safety compliance for industrial use. It features a NEMA 3R enclosure suitable for outdoor exposure and is designed for 50–60 Hz, three-phase operation with 9 kVA rating, aligning with typical industrial control and distribution standards.
Routinely inspect for enclosure integrity, verify winds and connections, and monitor winding temperatures given the 115 °C rise rating. The 3R enclosure and aluminum coil reduce corrosion risk, improving service life. The one-year Eaton warranty (or 18 months from shipment) provides initial protection, supporting TCO optimization in panel builds.
