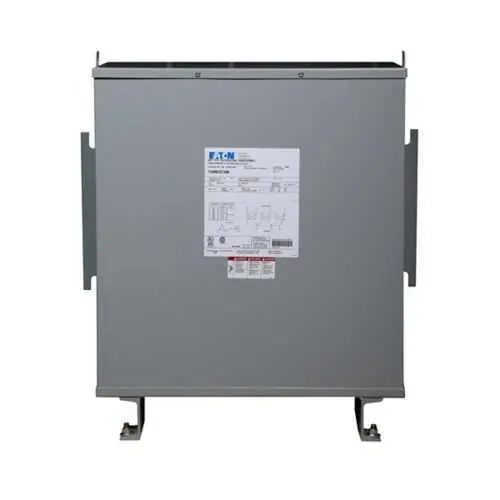

Z48G28T30S64X Eaton General-Purpose Transformer - NEMA 4X
Part Number: Z48G28T30S64X
Quick Summary
The Z48G28T30S64X is an Eaton three-phase, general-purpose encapsulated transformer designed for hazardous locations. In harsh plants and chemical facilities, standard transformers often struggle with safety, enclosure integrity, and uptime, driving costly downtime. This unit carries UL Listed certification and a rugged NEMA 4X enclosure, plus Class I, Division 2 compliance for Groups A–D. With a 480 V primary and 208Y/120 V secondary, it streamlines power distribution in retrofit projects while meeting safety standards. Its rugged construction and indoor-outdoor suitability translate to reduced maintenance, safer operation, and faster, code-compliant deployments across demanding industrial environments.
Product Information
Extended Description
Z48G28T30S64X Eaton: Eaton Hazardous location encapsulated transformer, 30 KVA Class 1 Division 2 Groups A, B, C, D Hazardous Location Transformer, 3PH, 480V Delta -208Y/120V, 115C Rise, Aluminum windings, 316SS NEMA 4X Enlosure
Product Name
Eaton General purpose encapsulated transformer
Catalog Number
Z48G28T30S64X
UPC
786680232862
Product Length/Depth
12.69 in
Product Height
22.72 in
Product Width
21.18 in
Product Weight
540 lb
Compliances
Class I, Div. 2, Groups A, B, C, D
Certifications
UL Listed
Catalog Notes
NEMA 4X 316SS Enclosure
Area classification
Hazardous/Classified Locations
Coil material
Aluminum
Design
EPTZ
Enclosure
NEMA 4X
Frame
2434X
Insulation
180 °C
Type
General-Purpose Encapsulated Transformer
Wiring connection
66A
Frequency rating
60 Hz
Kva Rating
30 kVA
Phase
Three-phase
Primary voltage
480 V
Secondary Voltage
208Y/120 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Special features
316SS NEAM 4X Enclosure
Weathershield
Indoor-Outdoor
Encapsulated design with a 316SS NEMA 4X enclosure provides robust protection against dust, moisture, and corrosive atmospheres, delivering longer service life and lower maintenance in hazardous plants. Feature: encapsulation and corrosion-resistant enclosure → Business Impact: improved uptime and reduced service calls in harsh environments → Application: chemical processing, oil & gas, and mining facilities needing reliable power distribution. Feature: 30 kVA rating with 480 V delta primary and 208Y/120 V secondary → Business Impact: efficient, scalable step-down for control panels and motor feeders, minimizing phase imbalance and voltage drop → Application: switchgear, control rooms, and machine rooms. Feature: aluminum windings and 180 °C insulation → Business Impact: lighter weight for easier installation and superior thermal performance under load → Application: space-constrained panels and high-ambient factories. Feature: Class I, Division 2 compliance for Groups A–D → Business Impact: compliant operation in hazardous locations reduces risk and speeding permit approvals → Application: chemical plants, refineries, and offshore platforms. Feature: UL Listed and precise enclosure specs (NEMA 4X, 316SS) → Business Impact: known reliability, simplified procurement, and consistent installation standards → Application: end-to-end power distribution in rugged outdoor and indoor environments.
Get a Quick Quote for a Eaton Z48G28T30S64X
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Z48G28T30S64X?
Enquire Now
FAQs
The transformer is designed for hazardous locations with Class I, Division 2 compliance (Groups A–D) and a rugged NEMA 4X, 316SS enclosure suitable for indoor-outdoor use. It supports 60 Hz, three-phase service with a 480 V primary and 208Y/120 V secondary, making it compatible with control panels, switchgear, and outdoor electrical housings in demanding industrial settings.
With a 30 kVA rating, a 480 V delta primary, and a 208Y/120 V secondary, the unit efficiently steps down mains to usable control and auxiliary voltages. This reduces transformer count, minimizes voltage drop, and enhances motor start-up performance in distributed plant networks, while preserving power quality in harsh environments.
Yes. The Z48G28T30S64X is UL Listed and designed for hazardous locations with Class I, Division 2 compliance. It uses a NEMA 4X enclosure and a 316 stainless steel (316SS) enclosure surface, providing reliable protection against dust, water ingress, and corrosive atmospheres in demanding facilities.
The transformer employs aluminum windings and a 180 °C insulation class, offering good thermal stability under load. Routine checks should include insulation integrity, enclosure seals, and cooling pathways. Its encapsulated design reduces dust ingress, while the rugged enclosure minimizes corrosion risk, extending service intervals in harsh environments.
The unit delivers improved safety and reliability in hazardous locations, lowering unplanned downtime and compliance-related delays. Although upfront costs are higher than standard transformers, the UL Listing, Class I, Division 2 certification, and NEMA 4X enclosure translate to faster permitting, reduced maintenance, and longer intervals between replacements in demanding facilities.
