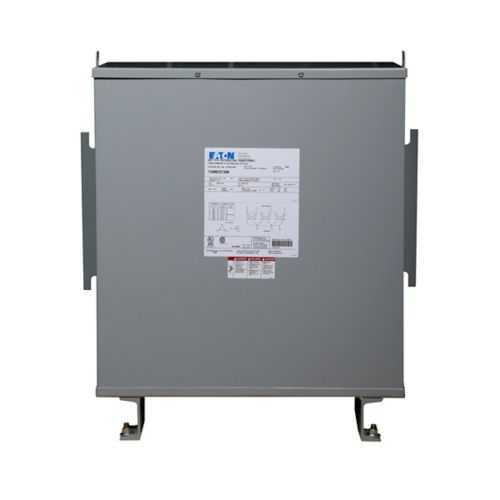

Eaton Z60G28T45 Hazardous Location Transformer - UL Listed
Part Number: Z60G28T45
Quick Summary
Eaton Hazardous location encapsulated transformer provides safe, three-phase power for Class I Division 2 industrial environments. Operators in hazardous sites confront risk, heat, and regulatory complexity that can delay projects and drive up costs. This unit earns UL Listed certification and complies with Class I Division 2, Groups A-D, offering reliable protection in demanding conditions. By combining rugged enclosure, robust insulation, and precise voltage regulation, it supports steady uptime. With indoor-outdoor versatility and aluminum windings, it integrates with standard power-distribution schemas while helping you reduce maintenance and total cost of ownership. This makes it a practical choice for engineered systems requiring safety, performance, and predictable operation.
Product Information
Extended Description
Z60G28T45 Eaton: Eaton Hazardous location encapsulated transformer, Class 1 Division 2 Groups A, B, C, D Hazardous Location Transformer, Three-phase, PV: 600V, Taps: 2 at -5% FCBN, SV: 208Y/120V, 115°C, 45 kVA, Al windings, Frame: 244H, Indoor-Outdoor
Product Name
Eaton Hazardous location encapsulated transformer
Catalog Number
Z60G28T45
UPC
786680235696
Product Length/Depth
14.66 in
Product Height
26.49 in
Product Width
28.17 in
Product Weight
706 lb
Compliances
Class I, Div. 2, Groups A, B, C, D
Certifications
UL Listed
Type
Class 1 Division 2 Groups A, B, C and D, Hazardous Location Transformer
Coil material
Aluminum
Frequency rating
50/60 Hz
Kva Rating
45 kVA
kVA
45 kVA
Phase
Three-phase
Primary voltage
600 V
Secondary Voltage
208Y/120 V
Sound Level
NEMA ST-20
Temperature rise
115 °C rise
Area classification
Hazardous/Classified Locations
Design
EPTZ
Enclosure
NEMA 3R
Frame
244H
Insulation
180 °C
Tap size
2 at -5% FCBN
Volt ampere rating
45 kVA
Weathershield
Indoor-Outdoor
Wiring connection
66K
Encapsulated construction isolates windings from the surrounding environment, reducing moisture ingress and contamination. This delivers higher reliability and longer service life in Class I Division 2 facilities, where harsh conditions are common. It directly supports safer operation and lower maintenance costs for hazardous-location power distribution. Three-phase, 45 kVA power rating provides scalable load handling from a 600 V primary to 208Y/120 V secondary. The aluminum windings offer a lighter, corrosion-resistant solution with excellent electrical performance and reduced material cost. This combination improves overall system efficiency and simplifies budgeting for larger plant upgrades. Two taps at -5% FCBN allow fine-tuning to maintain output under voltage fluctuations or supply variations. This reduces stress on downstream devices and speeds commissioning without disassembly. Enclosure features a NEMA 3R rating for indoor-outdoor installation, enabling flexible placement and easier cable routing. Compliance with Class I, Div 2 Groups A-D and UL Listed supports rapid approvals and audit readiness, while a 66K wiring connection and Weathershield indoor-outdoor design simplify integration with existing power-distribution networks and future upgrades. Overall, the solution delivers safer operation, lower lifecycle costs, and predictable performance in hazardous environments.
Get a Quick Quote for a Eaton Z60G28T45
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Z60G28T45?
Enquire Now
FAQs
The Z60G28T45 is an encapsulated, three-phase transformer designed to meet Class I Division 2 requirements with UL Listed certification. Its rugged NEMA 3R enclosure protects the windings from dust, moisture, and chemical exposure, while aluminum windings and robust insulation ensure reliable operation in hazardous environments.
Yes. With a NEMA 3R enclosure and an indoor-outdoor rating, this transformer can be mounted in either protected interiors or outdoor cabinets. This flexibility simplifies site planning and reduces the need for additional housing, saving space and installation time.
The unit provides a 600 V primary and a 208Y/120 V secondary for three-phase power distribution. It features aluminum windings for efficiency and reliability, and a 66K wiring connection with two taps at -5% FCBN to accommodate minor voltage variations on site.
Installation benefits include adjustable taps (-5% FCBN) to stabilize secondary voltage, a rugged NEMA 3R enclosure for versatile placement, and a 244H frame with aluminum windings that support straightforward mounting and service access. The unit is designed for hazardous locations, minimizing retrofits and compliance hurdles.
The transformer is UL Listed and compliant with Class I, Division 2, Groups A-D hazardous locations standards. These certifications facilitate regulatory approvals, supplier qualification, and safer operation in regulated environments, reducing risk during audits and inspections while supporting uptime and reliability.
