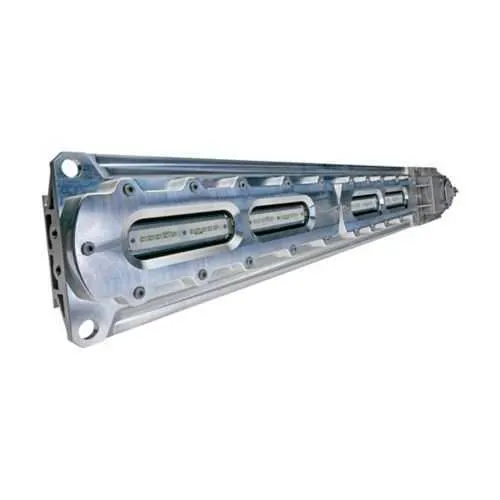

Eaton ZPLA4-UNV1-EM-P Linear LED Light Fixture - IP66

Part Number: ZPLA4-UNV1-EM-P
ZPLA4-UNV1-EM-P
Manufacturer
Eaton
Part number
ZPLA4-UNV1-EM-P
Category

Quick Summary

ZPLA4-UNV1-EM-P is a hazardous-location linear LED light fixture designed for industrial environments. Its purpose-built design delivers reliable illumination in areas with explosive atmospheres while meeting stringent NEC/CEC standards. Power loss can threaten safety and uptime; the emergency back-up helps maintain essential visibility. The luminaire carries certification for Class I, Division 1; Class II, Division 1; Class III, plus IP66 and NEMA 4X protection, ensuring resilience against dust, water, and impact in harsh locations. For engineers, this translates to fewer outages, simpler compliance reporting, and straightforward installation with a 4 ft form factor and a 73 W, high-efficiency footprint.

Product Information

Extended Description

ZPLA4-UNV1-EM-P Eaton: Eaton Crouse-Hinds series Pauluhn ZPLA linear LED light fixture, Cool white, 700 lm emergency mode, 4 ft, Glass lens, 7000 lm, 102 lm/W, Copper-free aluminum, Emergency battery back-up, 120-277 Vac, 127-300 Vdc, 73W
Product Name
Eaton Crouse-Hinds series Pauluhn ZPLA linear LED light fixture
Catalog Number
ZPLA4-UNV1-EM-P
UPC
662276959088
Product Length/Depth
48.2 in
Product Height
4.56 in
Product Width
6.5 in
Product Weight
37.8 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Color temperature
Cool white
Lamp length
4 ft
Lumens
7000
Emergency mode lumens
700
Lumens per watt
102
Voltage rating
120-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Lens material
Glass
Material
Copper-free aluminum
Wattage
73 W
Power factor
> 0.90
Special features
Emergency battery back-up
Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Pauluhn ZPLA Linear LED catalog page Pauluhn ZPLA Explosionproof Linear LED Light Fixtures UL certification Pauluhn ZPLA Explosionproof Linear LED Light Fixtures UL certification Pauluhn ZPLA Explosionproof Linear LED Light Fixtures UL certification Pauluhn ZPLA Explosionproof Linear LED Light Fixtures UL certification IF 1906 - Pauluhn Linear ZPLA LED Fixtures with EM IF 1906 - Pauluhn Linear ZPLA LED Fixtures with EM Pauluhn ZPL LED Explosionproof Linear Pauluhn ZPL LED Explosionproof Linear
The ZPLA4-UNV1-EM-P combines high brightness with energy efficiency to support safe, productive operations. Feature → Business Impact → Application: 7000 lumens at 73 W (102 lm/W) delivers strong task lighting across large work zones, reducing dark spots and improving operator performance in duty-critical areas such as chemical processing and machining cells. Feature → Emergency battery back-up provides 700 lumens of emergency illumination, ensuring safe egress during outages and supporting compliance with emergency lighting requirements in hazardous locations. Feature → IP66, NEMA 4X housing, and glass lens offer rugged protection against dust, water, and impact, extending service life in wash-down zones and outdoor-rated installations. Feature → 120-277 Vac / 127-300 Vdc compatibility and 50/60 Hz operation simplify integration with existing power systems, lowering installation time and risk. Feature → Copper-free aluminum construction delivers corrosion resistance in challenging environments, contributing to lower maintenance costs over the fixture’s life.

Get a Quick Quote for a Eaton ZPLA4-UNV1-EM-P

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton ZPLA4-UNV1-EM-P? Enquire Now

FAQs

When installing the ZPLA4-UNV1-EM-P in hazardous locations, ensure compliance with NEC/CEC classifications, specifically Class I Division 1, Class II Division 1, and Class III. The fixture is constructed for rugged environments with IP66 and NEMA 4X protection, so mount and enclosure selections should maintain those ratings. Verify voltage compatibility (120-277 Vac or 127-300 Vdc) and provide appropriate wiring methods per local electrical codes. Plan for emergency battery back-up wiring to maintain emergency lumens during power loss.
Key specs include a 73 W power draw with 7000 lumens total output and 102 lm/W efficacy. Voltage rating covers 120-277 Vac and 127-300 Vdc, with a 50/60 Hz frequency. The luminaire offers an emergency mode delivering 700 lumens and features a high power factor (>0.90). Lens material is glass, housing is copper-free aluminum, and the unit has IP66 and NEMA 4X protection for demanding environments.
Yes. The ZPLA4-UNV1-EM-P is designed for hazardous/classified locations with NEC/CEC compliance and protection suitable for explosive atmospheres. Its 4 ft length, epoxy-free construction, glass lens, and IP66/NEMA 4X rating make it well-suited for oil & gas, chemical or petrochemical processing, and other harsh environments where reliable, durable emergency lighting is required.
The emergency back-up provides 700 lumens of illumination during mains loss, supporting safe egress and visibility along escape routes. This capability helps meet safety codes for emergency lighting in hazardous locations and reduces downtime-related risk during power interruptions. The feature pairs with a robust power supply that accepts both AC and DC input, simplifying system design and ongoing maintenance.
The ZPLA4-UNV1-EM-P uses copper-free aluminum and a glass lens to resist corrosion and wear in harsh environments, reducing maintenance cycles. With high efficacy (102 lm/W) and a durable housing, it delivers long service life under continuous operation. DLC-listed options further support energy-efficiency incentives and project compliance, while the emergency battery back-up minimizes replacement frequency for critical lighting paths.
