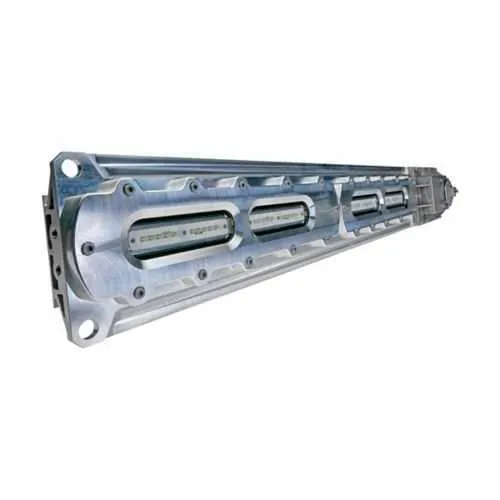

Eaton ZPLA4-UNV1-S891-P Linear LED Light - IP66
Part Number: ZPLA4-UNV1-S891-P
Quick Summary
The Eaton ZPLA4-UNV1-S891-P linear LED light fixture provides rugged illumination for hazardous locations in industrial facilities. Engineers often face costly downtime and frequent maintenance in harsh environments. This model carries NEC/CEC compliance, Class I, Division 1; Class II, Division 1; Class III ratings, IP66 ingress protection, and NEMA 4X enclosure, ensuring safe operation in demanding sites. Designed for universal voltage, its 120-277 VAC and 127-300 VDC input supports flexible installation across global facilities. With 8000 lumens at 59 watts and a high color rendering cool white output, it reduces energy use while improving visibility and safety.
Product Information
Extended Description
ZPLA4-UNV1-S891-P Eaton: Eaton Crouse-Hinds series Pauluhn ZPLA linear LED light fixture, Cool white, Painted gray epoxy finish, 4 ft, Diffused glass lens, 8000 lm, 139 lm/W, Copper-free aluminum, 120-277 Vac, 127-300 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Pauluhn ZPLA linear LED light fixture
Catalog Number
ZPLA4-UNV1-S891-P
UPC
662276935624
Product Length/Depth
48.2 in
Product Height
4.56 in
Product Width
6.5 in
Product Weight
27 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Color temperature
Cool white
Lamp length
4 ft
Lumens
8000
Lumens per watt
139
Voltage rating
120-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Lens material
Diffused glass
Finish
Painted gray epoxy
Material
Copper-free aluminum
Wattage
59W
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Pauluhn ZPLA Linear LED catalog page
Pauluhn ZPLA Explosionproof Linear LED Light Fixtures Canadian certification
Pauluhn ZPLA Explosionproof Linear LED Light Fixtures Canadian certification
Pauluhn ZPLA Explosionproof Linear LED Light Fixtures Canadian certification
Pauluhn ZPLA Explosionproof Linear LED Light Fixtures Canadian certification
IF 1910 - Pauluhn Linear ZPLA LED Fixtures
Eaton Specification Sheet - ZPLA4-UNV1-S891-P
Eaton Specification Sheet - ZPLA4-UNV1-S891-P
High-output, energy-efficient illumination drives productivity while reducing energy costs. With 8000 lumens at 59 watts and a luminous efficacy of 139 lm/W, the ZPLA4-UNV1-S891-P delivers bright, uniform light for broad-area coverage in manufacturing and process areas. Universal voltage input simplifies electrical design and reduces the need for multiple transformers, enabling faster installs across regional facilities. The fixture’s IP66 and NEMA 4X enclosure provide washdown-ready, dust- and water-resistance, extending service life in chemical, oil-and-gas, and mining environments. Copper-free aluminum construction paired with a diffused glass lens delivers corrosion resistance and glare control, lowering maintenance costs and improving worker comfort. NEC/CEC compliance and Hazardous Location ratings ensure safe operation in Class I, II, and III zones, supporting compliant upgrades and safer production lines.
Get a Quick Quote for a Eaton ZPLA4-UNV1-S891-P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ZPLA4-UNV1-S891-P?
Enquire Now
FAQs
When installing the ZPLA4-UNV1-S891-P in Class I Division 1 zones, ensure mounting to compliant support structures and provide proper enclosure sealing to maintain IP66/NEMA 4X integrity. The unit supports universal voltage (120-277 VAC, 127-300 VDC), allowing coordination with existing power feeds without additional transformers. Verify local wiring codes and maintain clear access for routine maintenance while ensuring the diffused glass lens remains unobstructed for optimal light distribution.
The fixture operates at 120-277 VAC and 127-300 VDC, across a 50/60 Hz input. It delivers 8000 lumens at 59 watts with a power factor > 0.90, providing efficient, bright illumination. The universal voltage range supports multi-region deployments, reducing inventory complexity and simplifying electrical design during plant upgrades or new builds.
Yes. The ZPLA4-UNV1-S891-P is engineered for hazardous and classified locations, meeting NEC/CEC requirements with Class I, Division 1; Class II, Division 1; Class III ratings. Its IP66 protection and NEMA 4X enclosure resist dust, water, and washdown exposure typical in oil and gas facilities, while its 4 ft length and diffused glass lens support consistent, glare-free illumination along pipelines and work zones.
This luminaire meets NEC/CEC standards and is certified for Hazardous/Classified Locations with Class I Division 1, Class II Division 1, and Class III ratings. It carries an IP66 ingress protection rating and a NEMA 4X enclosure, ensuring robust performance in corrosive environments and washdown areas. These certifications support compliant upgrades and safer operation in demanding industries.
The ZPLA4-UNV1-S891-P delivers long LED life and high energy efficiency, reducing annual energy consumption by comparison with traditional luminaires. Its durable copper-free aluminum construction, diffused glass lens, and sealed enclosure lower maintenance costs by resisting corrosion and minimizing replacement cycles. In hazardous locations, this translates to fewer outages, lower labor costs, and improved operational uptime.
