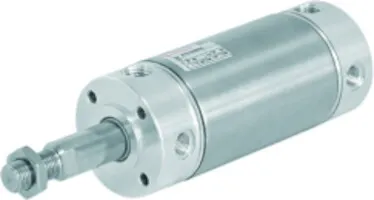

Norgren RT/57250/M/80 Roundline Cylinder - 50 mm bore
Part Number: RT/57250/M/80
Quick Summary
Norgren RT/57250/M/80 Roundline cylinder provides compact, high-force pneumatic actuation for automated handling. In dense automation lines, space constraints and wear can throttle performance, making a longer stroke or oversized cylinder a bottleneck. This model omits those issues with a 50 mm bore and 80 mm stroke, delivering robust, long-life operation. Typical standards relevant to this class include CE compliance, SIL-ready control compatibility, and durable corrosion-resistant construction for challenging environments. The combination of magnetic sensing, buffer cushioning, and stainless steel components supports seamless integration with existing manifolds and sensors, reducing integration time. Overall, it delivers reliable automation performance with a smaller footprint, helping you improve uptime and throughput while controlling lifecycle costs.
Product Information
Extended Description
RT/57250/M/80 Norgren: Saves 20% space over the basic length of a corresponding ISO/VDMA cylinder | Low friction, long life seals | High strength, double crimped end cap design | Standard magnetic piston for full control system versatility
Medium
Compressed air
Operating Temperature
-10 ... 80 °C, 14 ... 176 °F
Operating Pressure
1 ... 10 bar, 15 ... 145 psi
Port Size
Rc1/4
Cylinder diameter
50 mm
Stroke Length
80 mm
Operation
Double acting
Cushioning
Buffer cushioning
Magnetic/Non-magnetic
Magnetic
Theoretical Force
1178 N
Materials - Barrel
Stainless steel (austenitic)
Materials - Piston Rod
Stainless steel (martensitic)
Dimensions - Height
52.5 mm
Dimensions - Length
199 mm
Dimensions - Width
52.5 mm
Weight
0.638 kg
Country of Origin
Czechia
Range
RT/57200/M
Series
Roundline
Brand
IMI Norgren
C01250828
Pneufit C Push-in fitting, Adaptor, Straight, External/Internal hex, 8mm, R1/4
C0TA00828
Pneufit C Push-in fitting, Banjo flow control, Out, 8mm, R1/4
C01470828
Pneufit C Push-in fitting, Adaptor, 90° Swivel elbow, 8mm, R1/4
QM/8040/38
AK - Piston Rod Swivel Mounting 40mm/50mm bore
QM/57040/25
F - Piston Rod Clevis Mounting 40mm bore
QM/55240/28
H - Trunnion Mounting 40mm bore
QM/57050/21
C - Foot Mounting 50mm bore
M/P1501/90
Nut Style N
QM/8040/32
UF - Universal Piston Rod Mounting 40mm bore
M/50/LSU/5V
M/50 magnetically operated reed switch, 5m cable
QM/33/050/22
Switch mounting brackets, 50mm bore
PA2-0008025C
Polyamide tube, Natural, 25m, 8mm/6mm
PA2-0008100
Polyamide tube, Natural, 100m, 8mm/6mm
M/3314
Tube cutter
Space-efficient Roundline design yields up to a 20% reduction in footprint versus a basic ISO/VDMA cylinder, enabling denser machine layouts and easier enclosure routing. This translates to higher line density, reduced frame size, and lower material costs over the actuator’s life. Feature: compact geometry → Business Impact: frees up space for additional actuators or sensors → Application: compact pick-and-place cells and tightly spaced packaging lines. Feature: magnetic piston → Business Impact: straightforward sensing and wiring with reed switches or proximity sensors → Application: reliable position feedback in automated assembly. Feature: buffer cushioning → Business Impact: smoother start/stop, reduced mechanical shock, extended seal life → Application: high-cycle transfer tasks with minimized maintenance. Feature: stainless steel barrel and piston rod → Business Impact: superior corrosion resistance and durability under washdown or humid conditions → Application: food & beverage, automotive sub-assembly in tough environments. Feature: operating range 1–10 bar and -10 to 80 °C → Business Impact: broad compatibility across lines and climates → Application: versatile installation across multiple production stages. Feature: Rc1/4 port and Pneufit C fittings compatibility → Business Impact: flexible piping options and faster installation → Application: rapid field upgrades and modular system design. Feature: Theoretical force up to 1178 N → Business Impact: capable of moving moderate loads with precision → Application: clamping, feeding, and transfer tasks on medium-speed lines. The overall design supports easy mounting with standard Roundline accessories and quick sensor integration thanks to the magnetic piston and robust mounting options.
