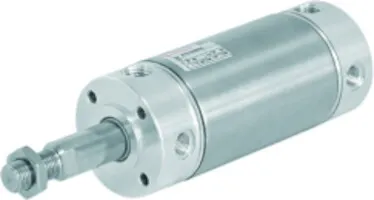

Norgren RT/57263/JM/160 Roundline Cylinder - Magnetic
Part Number: RT/57263/JM/160
Quick Summary
Norgren RT/57263/JM/160 Roundline Cylinder is a compact pneumatic actuator for space-efficient motion in automation lines. OEMs often struggle to fit standard cylinders into tight envelopes without sacrificing stroke, force, or reliability. In practice, buyers look for CE conformity, IP protection, and SIL-rated safety integration; confirm exact ratings for your configuration. This model leverages a stainless steel barrel and magnetic piston to deliver durability and versatile control, while its space-saving footprint trims machine size and total cost of ownership.
Product Information
Extended Description
RT/57263/JM/160 Norgren: Saves 20% space over the basic length of a corresponding ISO/VDMA cylinder | Low friction, long life seals | High strength, double crimped end cap design | Standard magnetic piston for full control system versatility
Medium
Compressed air
Operating Temperature
-10 ... 80 °C, 14 ... 176 °F
Operating Pressure
1 ... 10 bar, 15 ... 145 psi
Port Size
Rc1/4
Cylinder diameter
63 mm
Stroke Length
160 mm
Operation
Double acting
Cushioning
Buffer cushioning
Magnetic/Non-magnetic
Magnetic
Theoretical Force
1870 N
Materials - Barrel
Stainless steel (austenitic)
Materials - Piston Rod
Stainless steel (martensitic)
Range
RT/57200/M
Series
Roundline
Brand
IMI Norgren
Feature: 63 mm bore and 160 mm stroke, double-acting configuration. Business Impact: Delivers strong, repeatable force in a compact envelope, enabling efficient automation without oversized hardware. Application: high-speed pick-and-place and linear actuation in tightly packaged equipment. Feature: Space-saving Roundline design saves 20% versus the basic ISO/VDMA length. Business Impact: Frees up cabinet and machine footprint, allowing more compact cell layouts and lower installation costs. Application: automated assembly lines with limited space. Feature: Buffer cushioning for controlled deceleration. Business Impact: Reduces impact loads, extending seal life and minimizing vibration-induced wear. Application: high-cycle cycling where smooth stops matter. Feature: Magnetic piston with standard magnetic coupling. Business Impact: Enables full control-system versatility, supports position sensing and safe interlock integration. Application: systems requiring reliable feedback without extra components. Feature: Stainless steel barrel and martensitic piston rod. Business Impact: Offers corrosion resistance and robust mechanical strength for challenging environments. Application: long-life operation in harsh industrial settings. Feature: Rc1/4 port size and 1–10 bar operating range. Business Impact: Ensures compatibility with common plant air supplies and straightforward integration into existing manifolds. Application: general pneumatic automation across multiple sectors. Feature: Theoretical thrust of 1870 N. Business Impact: Provides substantial actuation force for demanding tasks while keeping package size small. Application: lifting and pushing assemblies in compact fixtures. Feature: Roundline series and magnetic construction enable easy retrofits and consistent performance across Spare Parts and replacement cycles. Business Impact: Reduces downtime and supports scalable production lines. Application: modular automation cells where standard components are preferred. This combination of durable materials, precise control, and a space-conscious form factor makes RT/57263/JM/160 a versatile choice for engineers seeking reliability, efficiency, and easy integration in pneumatic systems.
Get a Quick Quote for a Norgren RT/57263/JM/160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Norgren RT/57263/JM/160?
Enquire Now
FAQs
The RT/57263/JM/160 Roundline Cylinder is designed for standard industrial mounting patterns as part of the Roundline family. It supports common pneumatic mounting styles and is compatible with a variety of end-cap and clevis arrangements to fit most automated cells. When selecting mounts, verify stroke, sensor placement, and any required end-user accessories to ensure optimal alignment and cycle consistency.
This cylinder operates from -10 to 80 °C (14 to 176 °F) and supports an operating pressure range of 1 to 10 bar (15 to 145 psi). These ranges enable reliable performance in typical factory air systems and allow for robust actuation in dynamic automation environments while maintaining long seal life.
Yes, with its double-acting design, buffer cushioning, and magnetic piston for easy sensing and control integration, this cylinder provides consistent stroke and force characteristics. The 63 mm bore and 160 mm stroke offer a balance of speed and load capacity suitable for many pick-and-place tasks, particularly in compact automation cells.
Verify CE conformity for European installations, appropriate IP protection levels for your environment, and SIL-rated safety integration where used with monitored control systems. While the product data references standard industry compatibility and rugged construction, confirm the specific ratings for your application with the supplier or system integrator to ensure full regulatory compliance.
The combination of stainless steel barrel and piston rod, low-friction seals, and buffer cushioning contributes to longer service life and reduced maintenance intervals. The compact footprint can lower installation and enclosure costs, while magnetic sensing supports simpler integration with control systems. Overall ROI comes from higher uptime, smaller machine footprints, and easier retrofits in existing lines.
