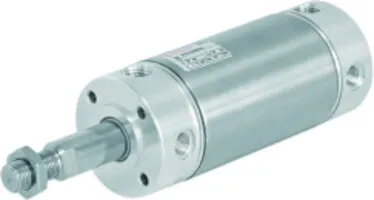

Norgren RT/57263/M/10 Roundline Cylinder - 63 mm dia
Part Number: RT/57263/M/10
Quick Summary
Norgren RT/57263/M/10 Roundline pneumatic cylinder provides compact double-acting actuation for pick-and-place and position control in automation systems. In tight panels and crowded machinery, installation can be a headache; this model saves around 20% space versus a basic ISO/VDMA length, easing integration and maintenance. Certification details vary by region; consult the datasheet for CE marking and IP-related compliance—this design supports reliable operation in harsh environments. Its magnetic piston, stainless steel barrel, and high-strength end caps translate to lower lifecycle costs and predictable performance in pneumatic control applications. With standard magnetic piston and robust cushioning, you get compatible, scalable performance across automation lines.
Product Information
Extended Description
RT/57263/M/10 Norgren: Saves 20% space over the basic length of a corresponding ISO/VDMA cylinder | Low friction, long life seals | High strength, double crimped end cap design | Standard magnetic piston for full control system versatility
Medium
Compressed air
Operating Temperature
-10 ... 80 °C, 14 ... 176 °F
Operating Pressure
1 ... 10 bar, 15 ... 145 psi
Port Size
Rc1/4
Cylinder diameter
63 mm
Stroke Length
10 mm
Operation
Double acting
Cushioning
Buffer cushioning
Magnetic/Non-magnetic
Magnetic
Theoretical Force
1870 N
Materials - Barrel
Stainless steel (austenitic)
Materials - Piston Rod
Stainless steel (martensitic)
Range
RT/57200/M
Series
Roundline
Brand
IMI Norgren
The RT/57263/M/10 uses a 63 mm bore with a 10 mm stroke to deliver robust linear motion and a theoretical thrust of 1870 N, making it ideal for compact, high-force actuation in automation lines. This roundline design saves space—approximately 20% shorter than a basic ISO/VDMA length—so you can fit more actuators and sensors in tight machine footprints, improving layout flexibility and reducing install time. The cylinder is double-acting with buffer cushioning, which provides controlled deceleration and minimizes impact loads on machinery and products, boosting cycle life and precision in high-speed indexing. A magnetic piston supports straightforward feedback and sensor integration, while the Rc1/4 port and stainless steel barrel/rod enhance compatibility and durability in demanding environments. Long-life seals and high-strength end caps further lower maintenance costs and downtime. The combination of roundline geometry, corrosion-resistant materials, and standard fittings ensures easy retrofit and scalable performance across packaging, assembly, and material-handling applications.
