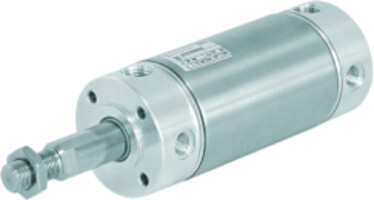

IMI Norgren RT/57263/M/100 Pneumatic Cylinder - 63mm
Part Number: RT/57263/M/100
Quick Summary
RT/57263/M/100 is a compact pneumatic cylinder designed for precise linear actuation in automation and packaging lines. Engineers often struggle with space constraints and inconsistent performance when selecting standard-length cylinders. This Roundline double-acting cylinder supports CE and IP considerations for safe, compliant automation and offers SIL-ready integration where applicable, helping mitigate risk in safety-critical applications. With a 63 mm bore and 100 mm stroke, it delivers reliable force and repeatability. The design combines corrosion-resistant stainless steel components with magnetic actuation and robust end caps, reducing maintenance and downtime while improving lifecycle costs for downstream equipment and manufacturing lines. Its compact footprint, mounting versatility, and standard Pneufit C and Mounting options add business value through easier installation and spare-parts compatibility.
Product Information
Extended Description
RT/57263/M/100 Norgren: Saves 20% space over the basic length of a corresponding ISO/VDMA cylinder | Low friction, long life seals | High strength, double crimped end cap design | Standard magnetic piston for full control system versatility
Medium
Compressed air
Operating Temperature
-10 ... 80 °C, 14 ... 176 °F
Operating Pressure
1 ... 10 bar, 15 ... 145 psi
Port Size
Rc1/4
Cylinder diameter
63 mm
Stroke Length
100 mm
Operation
Double acting
Cushioning
Buffer cushioning
Magnetic/Non-magnetic
Magnetic
Theoretical Force
1870 N
Materials - Barrel
Stainless steel (austenitic)
Materials - Piston Rod
Stainless steel (martensitic)
Dimensions - Height
65.5 mm
Dimensions - Length
228 mm
Dimensions - Width
65.5 mm
Weight
1.33 kg
Country of Origin
Czechia
Range
RT/57200/M
Series
Roundline
Brand
IMI Norgren
C01250828
Pneufit C Push-in fitting, Adaptor, Straight, External/Internal hex, 8mm, R1/4
C01470828
Pneufit C Push-in fitting, Adaptor, 90° Swivel elbow, 8mm, R1/4
C0TA00828
Pneufit C Push-in fitting, Banjo flow control, Out, 8mm, R1/4
QM/8050/38
AK - Piston Rod Swivel Mounting 50mm/63mm bore
QM/8050/32
UF - Universal Piston Rod Mounting 50mm/63mm bore
M/P1501/91
Nut style N2
QM/57063/21
C - Foot Mounting 63mm bore
QM/57063/25
F - Piston Rod Clevis Mounting 63mm bore
QM/55250/28
H - Trunnion Mounting 50mm bore
M/50/LSU/5V
M/50 magnetically operated reed switch, 5m cable
QM/33/063/22
Switch mounting brackets, 63mm bore
M/3314
Tube cutter
PA2-0008025C
Polyamide tube, Natural, 25m, 8mm/6mm
PA2-0008100
Polyamide tube, Natural, 100m, 8mm/6mm
Feature → Business Impact → Application: The RT/57263/M/100 uses a 63 mm bore and 100 mm stroke, delivering up to 1870 N of theoretical force at operating pressures of 1–10 bar. This provides strong actuation for pick-and-place and clamping tasks while maintaining compact dimensions, reducing machine footprint and enabling tighter cell layouts. In practice, this means higher cycle rates and improved throughput on packaging lines without sacrificing precision. Feature → Business Impact → Application: Stainless steel (austenitic) barrel and martensitic piston rod resist corrosion in humid or washdown environments, extending service life and reducing maintenance costs in food processing, automotive assembly, and lab automation. Feature → Business Impact → Application: Magnetic piston enables full compatibility with sensor-based control and position feedback, improving repeatability and simplifying integration with PLCs and safety interlocks in industrial automation. Feature → Business Impact → Application: Buffer cushioning provides controlled deceleration and reduced impact at the end of stroke, minimizing mechanical wear and vibration in CNC pick-and-place and feeder systems. Feature → Business Impact → Application: Rc1/4 porting and a broad mounting ecosystem (AK, UF, Nut styles, foot mounting) deliver flexible installation and fast retrofits in retrofit projects and OEM lines. Feature → Business Impact → Application: Roundline’s compact packaging saves space by 20% relative to basic ISO/VDMA lengths, enabling denser linear actuation arrays in robotic cells and material-handling units. Feature → Business Impact → Application: Stainless and ceramic-free seals reduce leakage and extend service life, delivering lower total cost of ownership for constant-cycle automation. Feature → Business Impact → Application: Optional Switches (M/50 LSU) and mounting brackets (QM series) support plug-and-play sensing and alignment with modern factory automation architectures, reducing integration time and risk. Feature → Business Impact → Application: The cylinder’s weight (1.33 kg) and dimensions (Height 65.5 mm, Length 228 mm, Width 65.5 mm) support straightforward retrofits in existing equipment without extensive retooling, minimizing downtime during upgrades.
Get a Quick Quote for a Norgren RT/57263/M/100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Norgren RT/57263/M/100?
Enquire Now
FAQs
The RT/57263/M/100 supports multiple mounting options from the QM family and standard feet, including AK - Piston Rod Swivel (QM/8050/38), UF - Universal Piston Rod Mounting (QM/8050/32), Nut style N2 (M/P1501/91), C-foot (QM/57063/21), Clevis mounting (QM/57063/25), and H-trunnion (QM/55250/28). This flexibility enables rapid alignment with actuators, sensors, and end-effectors, reducing commissioning time and enabling robust field retrofits in existing lines.
The cylinder has a theoretical force rating of 1870 N. Actual force depends on supply pressure within the 1–10 bar range. At higher pressures, the force increases up to the rating shown on the datasheet, while lower pressures reduce thrust. For precise load matching, calculate F = P × A with P in MPa and A for a 63 mm bore, then compare to the 1870 N specification to select the operating point.
The Roundline cylinder is designed for industrial automation with corrosion-resistant stainless components and magnetic actuation, supporting common global certifications. While CE compliance and IP-related considerations apply to the overall system and interfaces, confirm the specific configuration and any end-cap or mounting accessory ratings with the supplier datasheet and your regulatory team to ensure alignment with your facility’s standards.
Operating temperature is -10 to 80 °C with a working pressure of 1–10 bar and Rc1/4 porting. Maintenance benefits come from low-friction, long-life seals and a buffer cushioning system that reduces wear. To maximize uptime, pair with corrosion-resistant materials, schedule periodic inspection of the magnetic piston and seals, and use approved fittings and mounts to maintain alignment and prevent leaks.
The cylinder’s 20% footprint reduction compared with longer ISO lengths enables denser robot cells and smaller housings, improving overall equipment efficiency. Its stainless steel internals reduce corrosion-related downtime and extend service life, while magnetic sensing and modular mounting simplify integration with PLCs and sensors, lowering installation time and spare parts costs for OEMs and maintenance teams.
