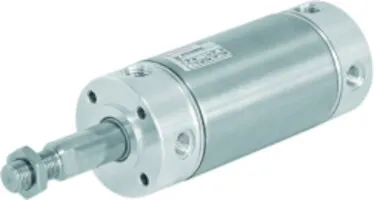

Norgren RT/57263/M/160 Roundline Cylinder - 63 mm bore
Part Number: RT/57263/M/160
Quick Summary
Norgren RT/57263/M/160 Roundline Cylinder is a double-acting pneumatic actuator designed for precise linear motion in automation lines. In tight spaces or high-cycle environments, engineers face footprint, maintenance, and sensor-integration challenges. The design supports CE compliant operation and can be configured for SIL functionality and robust IP-rated protection depending on version. By combining a compact geometry with a stainless steel barrel and magnetic piston, this cylinder minimizes downtime, simplifies installation, and lowers lifecycle costs. Its compatibility with Pneufit C fittings and multiple mounting options also streamlines integration in new or retrofit projects.
Product Information
Extended Description
RT/57263/M/160 Norgren: Saves 20% space over the basic length of a corresponding ISO/VDMA cylinder | Low friction, long life seals | High strength, double crimped end cap design | Standard magnetic piston for full control system versatility
Medium
Compressed air
Operating Temperature
-10 ... 80 °C, 14 ... 176 °F
Operating Pressure
1 ... 10 bar, 15 ... 145 psi
Port Size
Rc1/4
Cylinder diameter
63 mm
Stroke Length
160 mm
Operation
Double acting
Cushioning
Buffer cushioning
Magnetic/Non-magnetic
Magnetic
Theoretical Force
1870 N
Materials - Barrel
Stainless steel (austenitic)
Materials - Piston Rod
Stainless steel (martensitic)
Dimensions - Height
65.5 mm
Dimensions - Length
288 mm
Dimensions - Width
65.5 mm
Weight
1.594 kg
Country of Origin
Czechia
Range
RT/57200/M
Series
Roundline
Brand
IMI Norgren
C01250828
Pneufit C Push-in fitting, Adaptor, Straight, External/Internal hex, 8mm, R1/4
C0TA00828
Pneufit C Push-in fitting, Banjo flow control, Out, 8mm, R1/4
C01470828
Pneufit C Push-in fitting, Adaptor, 90° Swivel elbow, 8mm, R1/4
QM/8050/38
AK - Piston Rod Swivel Mounting 50mm/63mm bore
QM/57063/25
F - Piston Rod Clevis Mounting 63mm bore
QM/55250/28
H - Trunnion Mounting 50mm bore
QM/57063/21
C - Foot Mounting 63mm bore
M/P1501/91
Nut style N2
QM/8050/32
UF - Universal Piston Rod Mounting 50mm/63mm bore
M/50/LSU/5V
M/50 magnetically operated reed switch, 5m cable
QM/33/063/22
Switch mounting brackets, 63mm bore
PA2-0008025C
Polyamide tube, Natural, 25m, 8mm/6mm
PA2-0008100
Polyamide tube, Natural, 100m, 8mm/6mm
M/3314
Tube cutter
The RT/57263/M/160Roundline cylinder uses a 63 mm bore and 160 mm stroke to deliver space-saving benefits that enable higher density automation cells and faster cycle times. This compact footprint reduces enclosure size and allows more efficient cabinet layouts, translating to lower installation and integration costs in automotive, packaging, and general manufacturing lines. The stainless steel barrel and magnetic piston provide robust durability in demanding environments, while buffer cushioning minimizes end-of-stroke shock, reducing wear on guide rails and seals and extending service intervals. Low-friction, long-life seals reduce friction losses, improving overall cycle efficiency and delivering tangible uptime gains. Multiple mounting options and a 1/4 inch port enable straightforward installation and rapid retrofits, while Pneufit C fittings simplify tube routing and leak-free connections. The unit is designed to integrate seamlessly with sensors for smart automation and supports ISO/VDMA compatibility for broader interchangeability. Industry-grade efficiency, corrosion resistance, and modular fittings address common objections about lifecycle costs and maintenance burden while delivering reliable performance across high-cycle applications.
Get a Quick Quote for a Norgren RT/57263/M/160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Norgren RT/57263/M/160?
Enquire Now
FAQs
RT/57263/M/160 supports a broad mounting ecosystem including Piston Rod Swivel, Clevis, Trunnion, Foot, and Universal Piston Rod Mounting options. This range aligns with the 63 mm bore and 160 mm stroke to provide flexible installation on automated cells, quick-change tooling setups, and retrofits without special adapters. It also pairs with dedicated mounts such as QM/8050/38 and QM/57063/25 for secure, vibration-resistant positioning.
Yes. The cylinder uses Rc1/4 port sizing and is compatible with Pneufit C push-in fittings. Available fittings like C01250828, C0TA00828, and C01470828 enable quick connection and reliable leak-free operation. Tubing options include PA2-0008025C 25 m and PA2-0008100 100 m in 8 mm/6 mm, making it easy to route air lines in compact machinery without custom tubing.
Key specs include a 63 mm bore, 160 mm stroke, 1–10 bar operating pressure range, and a theoretical force of 1870 N. The cylinder operates in -10 to 80 °C and 14 to 176 °F, with buffer cushioning to reduce end-of-stroke impact. Stainless steel barrel and piston rod materials improve wear resistance in continuous cycles typical of pick-and-place or machine-tending applications.
Yes. The unit features a standard magnetic piston enabling straightforward inductive or reed-switch sensing. For added reliability, a dedicated M/50/LSU/5V reed switch is available with a 5 m cable, and QM/33/063/22 switch mounting brackets are supported. This setup supports easy position sensing and predictive maintenance within automation networks.
The Roundline RT/57263/M/160 combines low-friction, long-life seals with buffer cushioning to extend service intervals and reduce downtime. Stainless steel components resist corrosion in challenging environments, while space savings lower enclosure and wiring costs. By enabling dense layouts and easier sensor integration, the cylinder delivers lower lifecycle costs and higher machine throughput in high-cycle lines.
