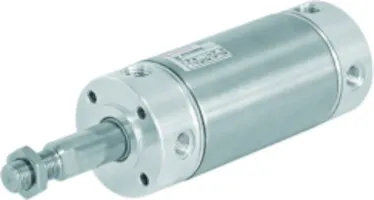

Norgren RT/57263/M/200 Cylinder - 63 mm dia, 200 mm stroke
Part Number: RT/57263/M/200
Quick Summary
Norgren RT/57263/M/200 Cylinder is a compact, double-acting actuator for space-saving automation applications. Many projects struggle with limited mounting room and lengthy setup times, leading to downtime and higher installation costs. Note: The data does not specify CE, SIL, or IP certifications; verify these requirements with the supplier for regulatory compliance in your facility. With its magnetic piston, stainless steel barrel and long-life seals, this cylinder delivers reliable pneumatics performance and easy integration into control systems, including sensors and brackets. The combination of high strength and corrosion resistance also supports durable operation in demanding industrial environments, aligning with procurement goals for robust, scalable automation components in pneumatics and fluid systems.
Product Information
Extended Description
RT/57263/M/200 Norgren: Saves 20% space over the basic length of a corresponding ISO/VDMA cylinder | Low friction, long life seals | High strength, double crimped end cap design | Standard magnetic piston for full control system versatility
Medium
Compressed air
Operating Temperature
-10 ... 80 °C, 14 ... 176 °F
Operating Pressure
1 ... 10 bar, 15 ... 145 psi
Port Size
Rc1/4
Cylinder diameter
63 mm
Stroke Length
200 mm
Operation
Double acting
Cushioning
Buffer cushioning
Magnetic/Non-magnetic
Magnetic
Theoretical Force
1870 N
Materials - Barrel
Stainless steel (austenitic)
Materials - Piston Rod
Stainless steel (martensitic)
Range
RT/57200/M
Series
Roundline
Brand
IMI Norgren
C01250828
Pneufit C Push-in fitting, Adaptor, Straight, External/Internal hex, 8mm, R1/4
C01470828
Pneufit C Push-in fitting, Adaptor, 90° Swivel elbow, 8mm, R1/4
C0TA00828
Pneufit C Push-in fitting, Banjo flow control, Out, 8mm, R1/4
QM/8050/38
AK - Piston Rod Swivel Mounting 50mm/63mm bore
QM/8050/32
UF - Universal Piston Rod Mounting 50mm/63mm bore
QM/57063/25
F - Piston Rod Clevis Mounting 63mm bore
QM/55250/28
H - Trunnion Mounting 50mm bore
QM/57063/21
C - Foot Mounting 63mm bore
M/P1501/91
Nut style N2
M/50/LSU/5V
M/50 magnetically operated reed switch, 5m cable
QM/33/063/22
Switch mounting brackets, 63mm bore
M/3314
Tube cutter
PA2-0008025C
Polyamide tube, Natural, 25m, 8mm/6mm
PA2-0008100
Polyamide tube, Natural, 100m, 8mm/6mm
Feature: Space-saving geometry reduces machine footprint and simplifies pneumatic routing. Business impact: frees valuable enclosure space, speeds installation, and improves overall line efficiency. Application: compact packaging lines and automated assembly stations where room is at a premium. Feature: High-strength, double crimped end caps and low-friction seals. Business impact: lowers wear, extends service intervals, and reduces maintenance costs in high-cycle applications. Application: continuous operation in bottling and filling lines, where uptime matters. Feature: Magnetic piston and standard control options. Business impact: enables reliable position sensing and seamless integration with switches and sensors for automated feedback. Application: pick-and-place feeders and safety interlock sequences. Feature: Stainless steel barrel and piston rod. Business impact: enhances corrosion resistance in washdown or humid environments, boosting lifecycle in automotive and food-grade settings. Application: harsh manufacturing environments. Feature: Cushioning and buffering at ends. Business impact: minimizes impact forces, reduces shock-induced wear, and increases end-of-stroke life. Application: high-speed actuation and precise stop control in robotic pickers. Feature: Broad mounting and connection options. Business impact: enables rapid installation and retrofit across existing lines with minimal rework. Application: integration with AK UF F C H mounting types and Pneufit C fittings for quick supply routing.
Get a Quick Quote for a Norgren RT/57263/M/200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Norgren RT/57263/M/200?
Enquire Now
FAQs
The RT/57263/M/200 supports multiple mounting options: AK - Piston Rod Swivel Mounting (QM/8050/38), UF - Universal Piston Rod Mounting (QM/8050/32), F - Piston Rod Clevis Mounting (QM/57063/25), H - Trunnion Mounting (QM/55250/28), and C - Foot Mounting (QM/57063/21). Use Nut style N2 (M/P1501/91) for secure rod connections. Pair with Pneufit C fittings for quick, reliable air connections. This flexibility lets you optimize alignment and reduce assembly time in constrained spaces.
Port size is Rc1/4. Compatible fittings include Pneufit C Push-in fittings C01250828 (Straight, 8 mm, R1/4), C01470828 (90° Swivel elbow, 8 mm, R1/4), and C0TA00828 (Banjo flow control, Out, 8 mm, R1/4). Tubing options PA2-0008025C and PA2-0008100 are available for 8/6 mm runs. These options facilitate easy routing and reliable air supply to support high-cycle pneumatic actuation in lines.
This cylinder operates on compressed air within a temperature range of -10 to 80 °C and a pressure range of 1 to 10 bar. The 63 mm bore and 200 mm stroke provide robust actuation under typical factory conditions. Uses a magnetic piston for sensing compatibility and buffer cushioning to minimize impact at end-of-stroke, reducing wear in continuous operation.
Yes, the magnetic piston enables reliable position sensing when paired with a reed switch (M/50/LSU/5V, 5 m cable) and switch mounting brackets (QM/33/063/22). The 63 mm bore and 200 mm stroke provide predictable travel, while buffer cushioning minimizes mechanical shock. With stainless steel barrel and piston rod, it remains durable in demanding packaging and robotic pick-and-place environments.
The unit features low-friction, long-life seals and a high-strength end-cap design, reducing wear and downtime in high-cycle applications. Space-saving geometry also lowers enclosure heating and simplifies routing, contributing to lower total cost of ownership. Combined with stainless steel components, it delivers reliable performance across long production runs in automotive, food, and general industrial environments.
