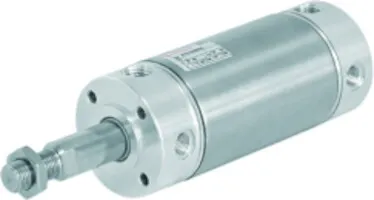

Norgren RT/57263/M/80 Roundline Cylinder - Space Saving

Roundline space efficiency unlocks valuable floor area. The 63 mm bore paired with an 80 mm stroke enables a compact envelope that reduces the overall length versus standard ISO/VDMA cylinders, supporting tighter actuation cells and simpler cable and tubing routing. Business impact: more workstations per line and shorter cycle times, which translate into higher throughput and lower capital cost per automation cell. This is particularly advantageous in robotics integrations and end-effector positioning where precise stroke control and repeatability matter. In practice, the combination of low-friction seals and a double-acting design delivers consistent force throughout the stroke, improving grip and part handling in high-speed cycles. Magnetic piston and standard sensing options provide adaptable control without invasive wiring. The standard magnetic piston enables full integration with reed switches or magnetic sensing, simplifying position feedback and fault monitoring in PLC or safety networks. Combined with M/50/LSU/5V switches and compact mounting brackets, installation is streamlined and retrofit-friendly for existing lines. This compatibility reduces downtime during upgrades and supports scalable automation where sensing is critical for quality control and traceability. Corrosion-resistant construction and robust end caps extend service life in challenging environments. The barrel is stainless steel (austenitic) and the piston rod is martensitic stainless, offering excellent durability and corrosion resistance in humid plants or washing down cycles. Buffer cushioning minimizes impact and wear at the end of stroke, protecting both the cylinder and the load. The 1–10 bar operating range and -10 to 80 C temperature tolerance widen the field of use, from paint lines to food manufacturing, with consistent performance. Mounting flexibility and fittings simplify installation and maintenance. Rc1/4 port size with Pneufit C push-in fittings (8 mm tubing) standardizes downstream connections, while a suite of Mountings options (AK, UF, F, H, C, etc.) supports quick alignment and rigid fixture mounting. The combination of weight 1.242 kg and double-acting operation ensures reliable actuation in retrofits and new builds, with predictable response and straightforward maintenance routines for technicians.
