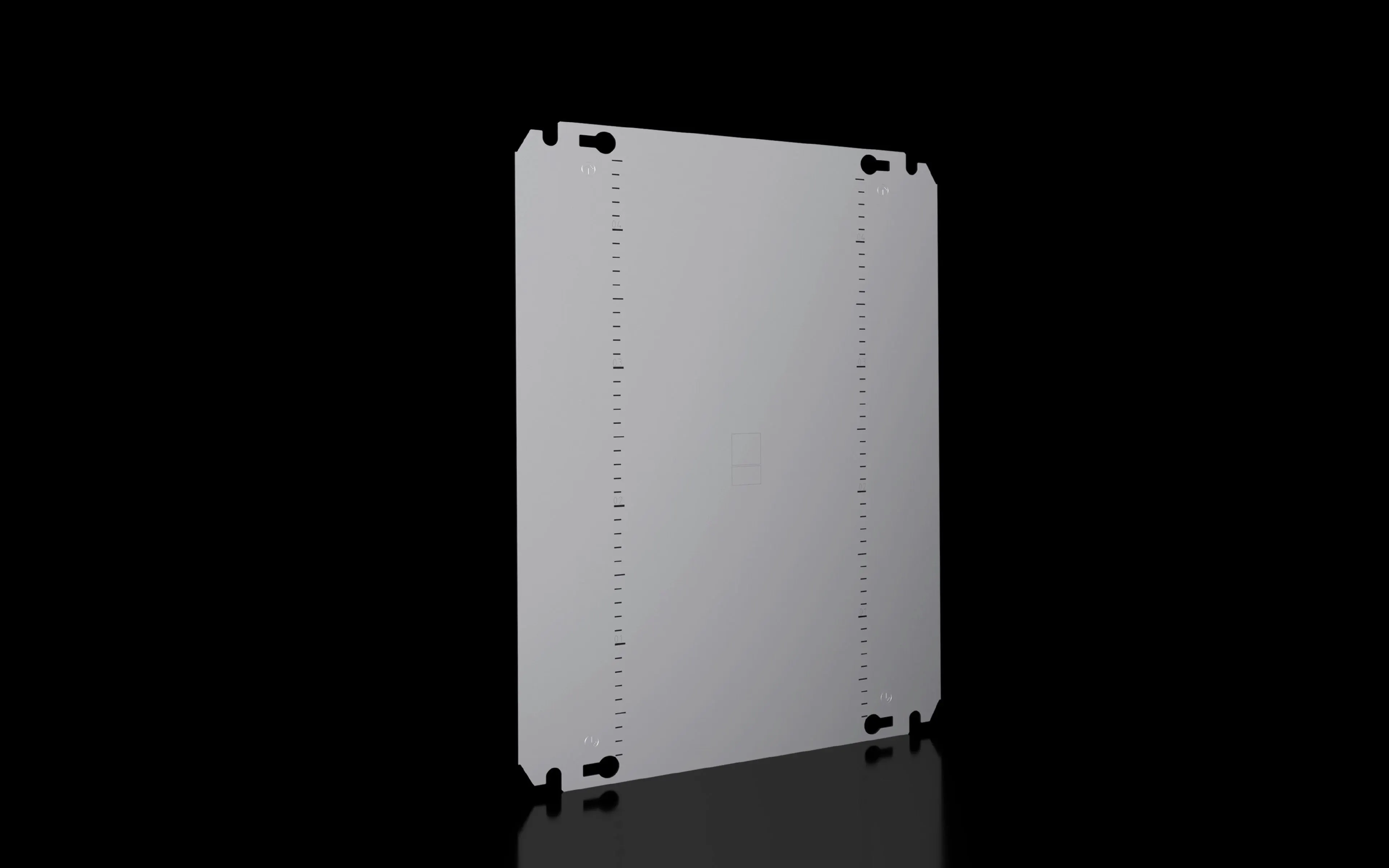

Rittal AX 5051.380 Mounting Plate - Sheet steel, zinc-plated
Part Number: 5051380
Manufacturer
Rittal
Part number
5051380
Category
Alt Part Number
AX 5051.380
Quick Summary
Rittal AX 5051.380 mounting plate is a sheet steel accessory that secures control gear inside standard enclosures. Engineers often struggle with misaligned panels and adapters that slow installation and increase rework. In practice, CE conformity and IP ratings are critical for rugged industrial installs, and SIL readiness matters in safety-critical systems. This product delivers robust mounting, corrosion resistance, and a predictable fit, helping procurement simplify sourcing while ensuring long-term reliability.
Product Information
Article number
AX 5051.380
Material
Sheet steel
Surface finish
zinc-plated
Dimensions
Width: 750 mm | Height: 575 mm
Material thickness of mounting plate
2.5 mm
To fit
Width: 800 mm | Height: 600 mm
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177949577
ETIM 9
EC000261
ECLASS 8.0
27180101
Feature: Sheet steel construction with zinc-plated surface. Business Impact: Enhanced corrosion resistance and mechanical durability translate to longer service life in harsh environments. Application: Ideal for interior mounting of control components in Rittal enclosures. Paragraph continues: Feature: Dimensions Width 750 mm, Height 575 mm; To fit Width 800 mm, Height 600 mm; Mounting plate thickness 2.5 mm. Benefit: Ensures precise alignment and compatible fit with standard enclosure openings, reducing field adjustments and downtime. Application: Suitable for retrofits and new builds in automation cabinets. Paragraph continues: Feature: Designed to align with standard mounting patterns and Rittal accessory ecosystem. Benefit: Speeds installation, simplifies sourcing, and lowers labor costs through plug‑and‑play integration. Application: Commonly used in panel assemblies and control cabinets across manufacturing lines. Paragraph continues: Feature: Packaging and availability. Benefit: Packs of 1 piece streamline procurement, inventory, and stocking strategies for spare parts or BOMs. Application: Fits project scales from single-gear mounts to multi‑panel installations. Paragraph continues: Certifications and classification. Benefit: ETIM EC000261 and ECLASS 27180101 alignment support procurement categorization and cross‑system compatibility. Application: Helps engineers maintain consistent documentation and compliance records across projects.
Get a Quick Quote for a Rittal 5051380
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5051380?
Enquire Now
FAQs
Install the 2.5 mm thick mounting plate by aligning it with the enclosure’s standard mounting holes, then secure with compatible hardware to ensure a level, vibration-free base for control equipment. Verify clearances and re-check alignment after mounting to prevent misfits or panel interference.
The plate uses sheet steel with a zinc-plated surface, providing robust corrosion resistance and mechanical strength suitable for industrial environments. This combination supports long service life in harsh or humid conditions common to automation cabinets.
Yes. The mounting plate is designed to integrate with standard Rittal enclosures and follows common ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications, aiding compatibility with existing BOMs and procurement workflows.
Engineers typically consider CE conformity and IP-rated enclosure compatibility for safety and reliability. While product documentation references standard classifications, verify specific CE and IP ratings in the official datasheet or with Rittal for your application.
By delivering a precise, quick-install mounting solution with corrosion resistance, the AX 5051.380 reduces assembly time, minimizes misalignment rework, and lowers maintenance cycles, yielding faster project completion and lower total cost of ownership.
