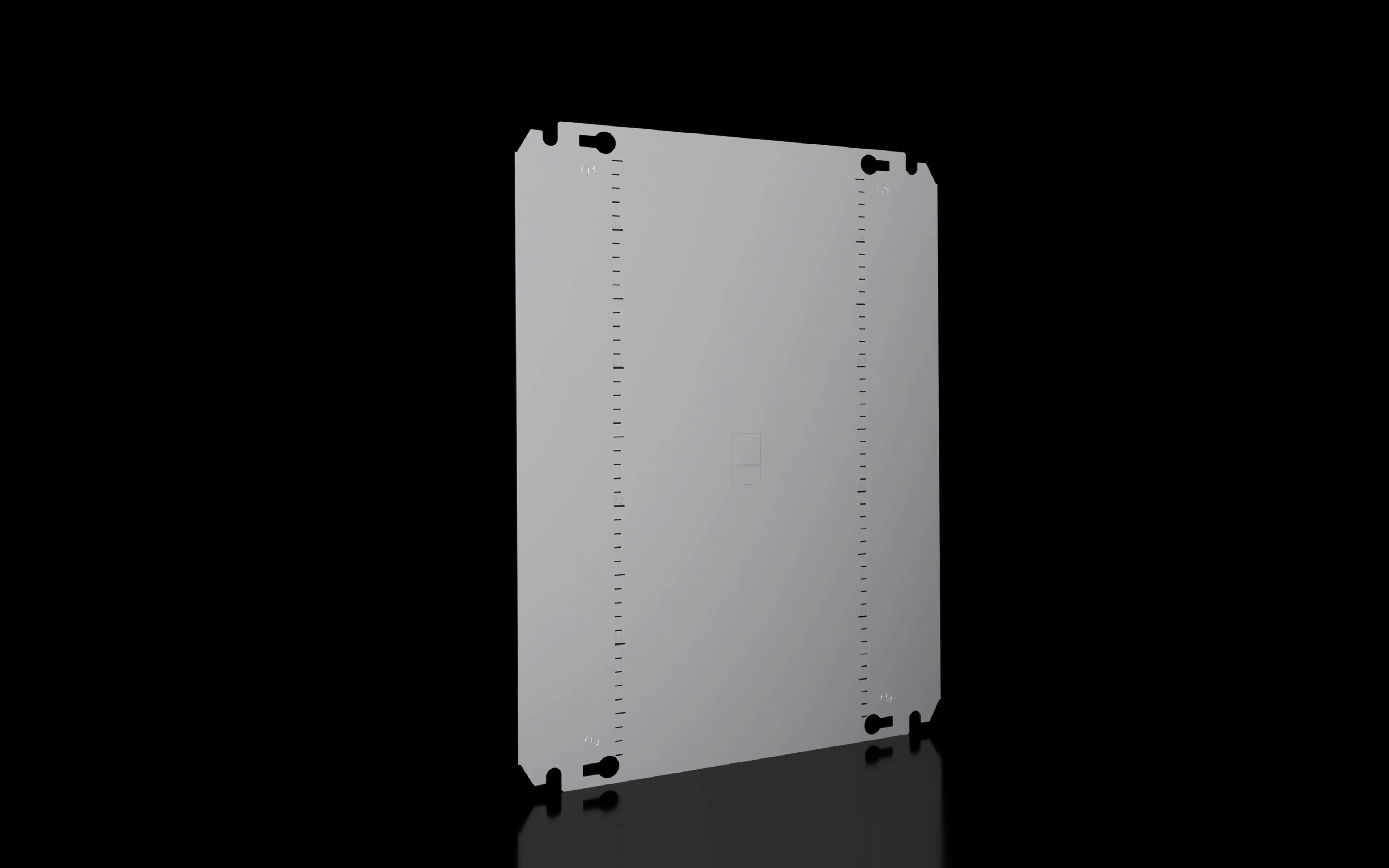

Rittal AX 5051.390 Mounting Plate – zinc-plated 2.5 mm
Part Number: 5051390
Manufacturer
Rittal
Part number
5051390
Category
Alt Part Number
AX 5051.390
Quick Summary
Rittal AX 5051.390 Mounting Plate is a sheet-steel, zinc-plated mounting solution for 1,000 x 1,200 mm enclosure frames. Manufacturers often struggle with mounting compatibility, corrosion resistance, and serviceability in compact cabinets. It aligns with ETIM 9 EC000261 and ECLASS 8.0 27180101 specifications to simplify procurement and regulatory alignment. Designed for easy integration with large-format enclosures, this 2.5 mm mounting plate delivers robust support, reduces assembly time, and improves reliability in industrial control panels. By standardizing on this accessory, engineers gain consistent installation quality and lower total cost of ownership across projects. Its zinc-plated finish provides corrosion resistance for harsh environments, supporting long service intervals and easier maintenance.
Product Information
Article number
AX 5051.390
Material
Sheet steel
Surface finish
zinc-plated
Dimensions
Width:Â 945 mm | Height:Â 1,175 mm
Material thickness of mounting plate
2.5 mm
To fit
Width:Â 1,000 mm | Height:Â 1,200 mm
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177949676
ETIM 9
EC000261
ECLASS 8.0
27180101
Feature: Sheet steel construction and zinc-plated finish. Business Impact: Delivers durable corrosion resistance and long service life in demanding environments, reducing maintenance and replacement costs. Application: Ideal for electrical cabinets in steel environments where reliability is critical and service intervals are minimized by robust materials. Feature: Precise dimensions for 1,000 x 1,200 mm frames (Width 945 mm; Height 1,175 mm). Business Impact: Ensures tight, repeatable fits across multiple enclosures, cutting installation time and minimizing on-site adjustments. Application: Suitable for standardized panel layouts in mass-produced controls and automation systems. Feature: Mounting plate thickness of 2.5 mm. Business Impact: Provides structural rigidity to support mounted components without deformation, improving safety and uptime. Application: Used in high-load mounting scenarios within control cabinets. Feature: Standardization with ETIM EC000261 and ECLASS 27180101. Business Impact: Streamlines procurement, data synchronization, and cataloging, reducing ordering errors. Application: Enables seamless integration with other Rittal accessories and enclosure systems. Feature: Pack of 1 piece; easy commissioning and inventory control. Business Impact: Simplifies stocking for single-unit builds while enabling scalable deployment across projects. Application: Common in modular manufacturing, machine building, and plant maintenance programs.
Get a Quick Quote for a Rittal 5051390
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5051390?
Enquire Now
FAQs
AX 5051.390 is designed for 1,000 x 1,200 mm frame enclosures, featuring a 945 mm width and 1,175 mm height. This sizing enables precise alignment within standard industrial cabinets, reducing on-site modifications. Ensure enclosure rail spacing matches the plate’s mounting holes and consult ETIM/ECLASS specifications for procurement consistency.
The mounting plate is made from sheet steel with a zinc-plated surface finish, providing robust corrosion resistance in harsh industrial environments. The plate thickness is 2.5 mm, giving sufficient stiffness to support mounted components without flex. This combination ensures long service life and minimized repair costs in electrical cabinets.
Key benefits include strong mechanical support, corrosion protection, and easy installation. The dimensions enable consistent, repeatable layouts, speeding up assembly and reducing human error. Standardization with ETIM EC000261 and ECLASS 27180101 supports streamlined procurement, while compatibility with other Rittal accessories ensures scalable, reliable cabinet designs across projects.
Yes. AX 5051.390 aligns with ETIM 9 EC000261 and ECLASS 8.0 27180101 classifications. This alignment ensures consistent data in catalogs and procurement systems, reduces mis-orders, and enables automated cross-referencing with other Rittal components for scalable panel designs in modern factories.
Plan for accurate orientation and compatible mounting hardware, noting the plate ships as a single piece. Confirm the enclosure’s internal clearances match the 945 x 1,175 mm plate and that the 2.5 mm thickness fits the rail and bracket system. Consider procurement standardization using ETIM/ECLASS data to maintain consistency across multiple installations.
