Rittal VX_IT 5301.270 Partition - IP20 (with fitted cover caps)
Part Number: 5301270
Quick Summary
Rittal VX_IT 5301.270 Partition provides a sturdy insertable divider for VX IT enclosures in high-density rack installations. Engineers often struggle with messy cable routing and gaps between bayed enclosures, complicating maintenance and airflow. It carries IP20 protection and aligns with ETIM EC002525 and ECLASS 27189234 classifications, supporting reliable interoperability. The SKU’s simple, slide-in design translates into faster deployments and consistent partitioning across multiple bays, while keeping cable access orderly. This solution also leverages the sheet steel, zinc-plated construction to endure harsh industrial environments, reducing downtime and maintenance costs in VX IT rack mounting and cable management workflows. Its compatibility with standard baying connectors ensures scalable installations.
Product Information
Extended Description

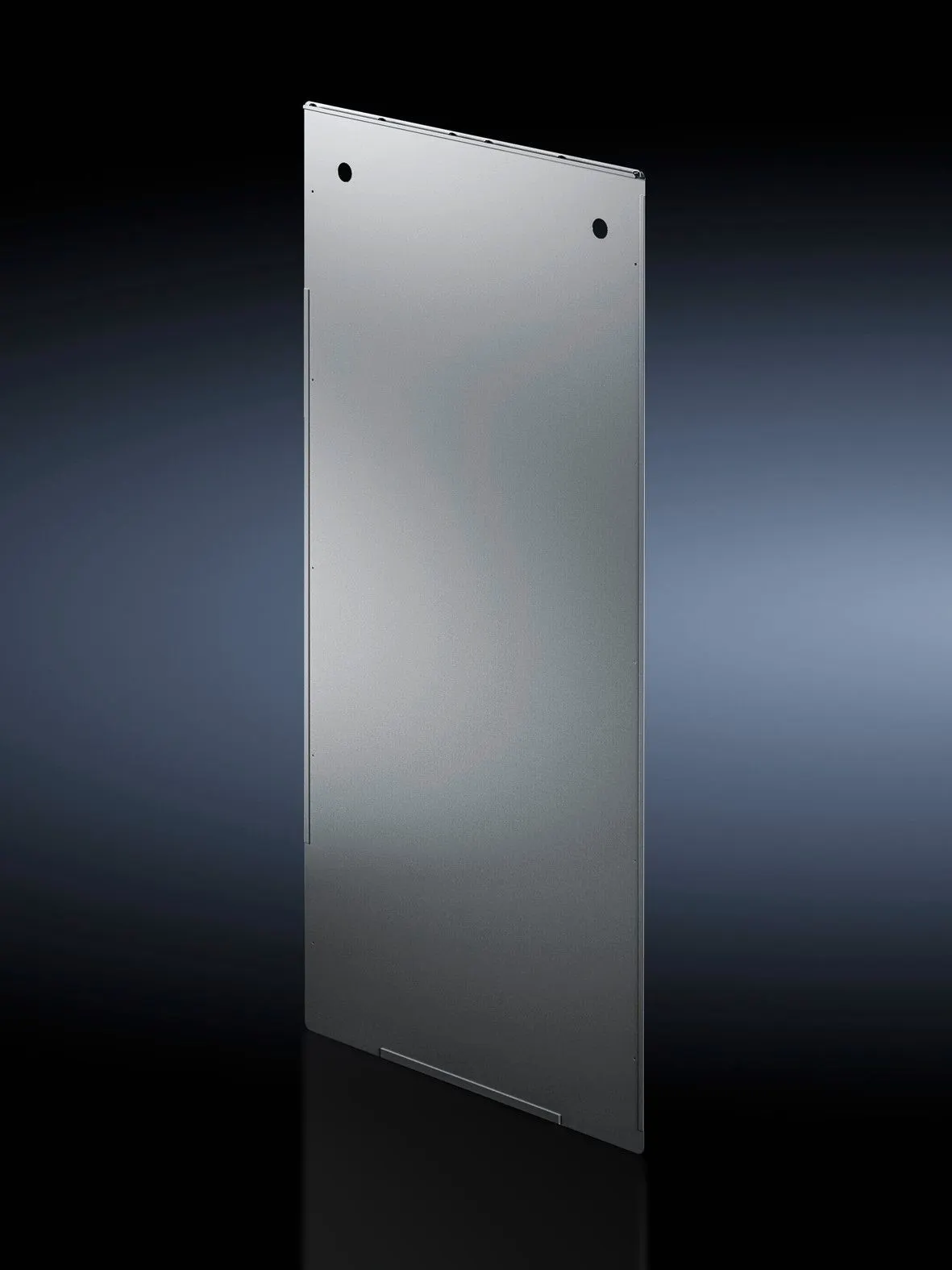

5301270 Rittal: Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,000 mm, sheet steel, zinc-plated
Article number
VX_IT 5301.270
Product description
For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Benefits
Simply slides into position
Material
Sheet steel, zinc-plated
Supply includes
Partition | 2 cover caps
To fit
Enclosure type: VX IT | Height: = 2,000 mm | Depth: = 1,000 mm
Assembly instruction
A baying gap of 3 mm is required to insert the partition
Note
Use baying connector, external, 3 mm
IP protection category to IEC 60 529
IP 20 (with fitted cover caps)
Packs of
1 pc(s).
Weight/pack
27.5 kg
PCF per pack (cradle-to-gate)
104.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177954793
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,000 mm, sheet steel, zinc-plated
Feature: One-piece partition insertable between two bayed VX IT enclosures. Business Impact: Enables rapid, error-free installation and consistent bay alignment, reducing field labor and commissioning time. Application: Ideal for VX IT 2000 mm high, 1000 mm deep configurations in industrial rack systems. Feature: Ø40 mm holes in the left and right corner areas for cables, with enclosed caps to seal when not in use. Business Impact: Provides flexible cable routing while preserving enclosure integrity and IP protection. Application: Useful for passing cables and conduits in controlled environments without compromising access. Feature: Material is sheet steel, zinc-plated. Business Impact: Delivers durability and corrosion resistance in harsh plant environments, extending service life. Application: Suitable for long-term VX IT installations with frequent maintenance cycles. Feature: IP protection category IP20 (with fitted cover caps). Business Impact: Meets basic enclosure protection requirements, reducing exposure to dust and incidental contact during operation. Application: Aligns with standard VX IT system safeguards in manufacturing floors. Feature: Supplied as a complete package — partition plus two cover caps. Business Impact: Simplifies procurement and onsite readiness, minimizing additional parts and delays. Application: Fast, plug-and-play integration within existing VX IT bays. Feature: Baying guidance requires a 3 mm gap for insertion and recommends an external 3 mm baying connector. Business Impact: Clarifies installation tolerances to ensure secure, repeatable mounting with minimal rework. Application: Essential for scalable rack constructions and standardized installations.
Get a Quick Quote for a Rittal 5301270
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301270?
Enquire Now
FAQs
The partition is a one-piece insert that slides into position between two bayed VX IT enclosures. A baying gap of 3 mm is required, and an external 3 mm baying connector is recommended to ensure a secure fit and repeatable installation.
Yes. The partition is designed to fit VX IT configurations with a height of 2,000 mm and a depth of 1,000 mm, ensuring proper alignment and structural stability when inserted between bayed enclosures.
The partition is made from sheet steel and zinc-plated for durability, and it carries IP20 protection with fitted cover caps, safeguarding against incidental contact and dust ingress.
Each pack contains one partition with two cover caps; weight per pack is 27.5 kg, facilitating predictable shipping and handling for project planning.
The design provides dedicated space between bayed enclosures with 40 mm cable holes, enabling orderly cable routing and quick access for inspection, while slide-in installation reduces downtime during upgrades or expansions.
