Rittal VX_IT 5301.271 Partition - IP20 (with fitted cover caps)
Part Number: 5301271
Quick Summary
Rittal VX_IT 5301.271 Partition is a rack-mountable divider designed to be suspended between two VX IT enclosures to organize cables. This setup addresses a common pain point: tangled cabling and restricted access during panel baying. The partition features 40 mm entry holes on each corner area that can be sealed with the included caps, helping to preserve enclosure integrity. It carries an IP20 rating when covered, and aligns with industry classifications such as ETIM EC002525 and ECLASS 27189234 for streamlined procurement. By simplifying installation, improving cable routing, and enabling fast reconfiguration, it delivers measurable business value in modular data centers and industrial control panels.
Product Information
Extended Description

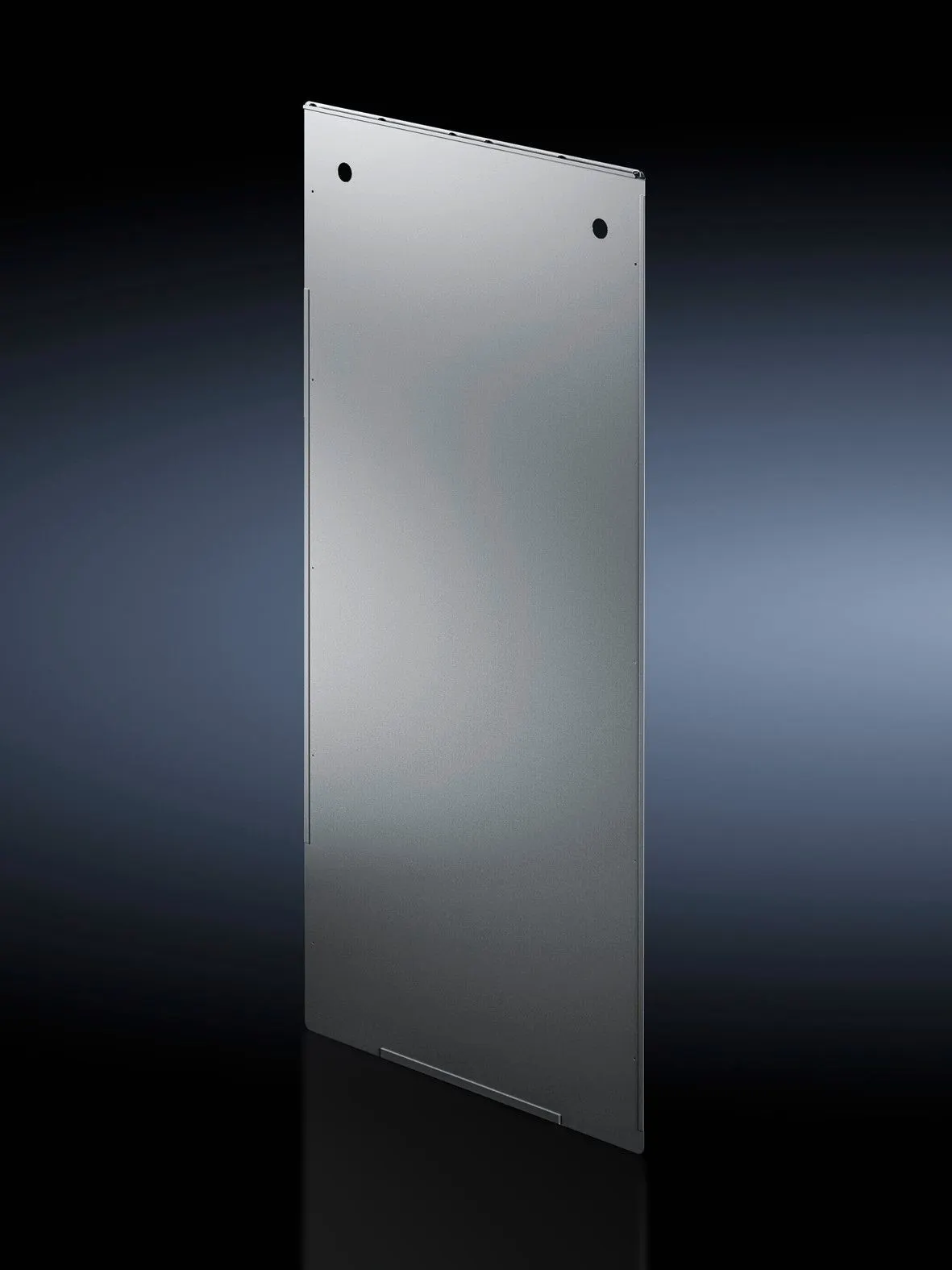

5301271 Rittal: For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Article number
VX_IT 5301.271
Product description
For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Benefits
Simply slides into position
Material
Sheet steel, zinc-plated
Supply includes
Partition | 2 cover caps
To fit
Enclosure type: VX IT
Assembly instruction
A baying gap of 3 mm is required to insert the partition
Note
Use baying connector, external, 3 mm
IP protection category to IEC 60 529
IP 20 (with fitted cover caps)
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954809
ETIM 9
EC002525
ECLASS 8.0
27189234
Feature: Suspended between two VX IT enclosures enables a dedicated cable path, reducing cross-talk and improving airflow. Business Impact: Faster installation, lower rework, and improved maintenance access. Application: Ideal for modular data centers and control cabinets where baying is frequent. Feature: Ø40 mm holes on left and right corners with seal caps provide flexible cable Entry and sealing options. Business Impact: Enables clean cable management and preserves IP when caps are installed, reducing ingress risks. Application: Common in automation racks requiring neat cable routing. Feature: Sheet steel, zinc-plated construction offers durability and corrosion resistance in harsh environments. Business Impact: Longer service life and lower replacement costs. Application: Industrial automation enclosures and rugged control panels. Feature: Simple installation with a 3 mm baying gap requirement and the note to use external baying connectors. Business Impact: Reduced installation time and field errors. Application: Fast retrofits and scalable rack systems. Feature: IP20 protection with fitted cover caps maintains enclosure integrity during processing. Business Impact: Compliance with basic environmental protections and minimized maintenance. Application: Enclosures exposed to dust without compromising accessibility. Feature: Supplied as a complete partition with 2 cover caps. Business Impact: Ready-to-install out of the box, reducing procurement complexity. Application: VX IT baying scenarios requiring immediate deployment.
Get a Quick Quote for a Rittal 5301271
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301271?
Enquire Now
FAQs
To install, slide the partition into the bay with a 3 mm baying gap and align the left and right corners so the Ø40 mm entry holes line up. Use the external baying connector as specified (3 mm). The included two cover caps seal the holes to preserve the IP20 rating. Ensure the partition sits securely before reassembling adjacent panels.
Key specs include sheet steel, zinc-plated construction for durability, a single Ø40 mm hole on each of the left and right corner areas for cabling, and a supplied set of two cover caps. The part is designed for rack mounting between VX IT enclosures and is rated IP20 when caps are fitted.
Yes. The partition provides a dedicated cabling channel between bayed VX IT enclosures, improving organization and airflow. It supports scalable rack configurations, reduces cable clutter, and simplifies future reconfigurations—beneficial in automation, machinery control panels, and data-center simplified rack setups.
The partition carries an IP20 rating with fitted caps, addressing dust exposure in typical environments. It also aligns with ETIM EC002525 and ECLASS 27189234 for standardized procurement and cataloging, with the product traceable by EAN 4028177954809.
Using the partition reduces time spent on cable rerouting during reconfigurations and minimizes downtime. The durable zinc-plated steel withstands industrial environments, and the integrated caps preserve protection. Overall, this translates to lower maintenance costs and faster changeovers in VX IT baying scenarios.
