Rittal VX IT 5301.274 Partition - Retrospective mounting for bayed enclosures
Part Number: 5301274
Quick Summary
Rittal VX IT 5301.274 partition provides retrofittable interior separation for VX IT enclosures. This solution reduces downtime by enabling installation or removal without full enclosure disassembly, a common pain point in reconfiguring bayed systems. The design supports climate-control sealing and extinguisher gas applications, aligning with ETIM 9 EC002525 and ECLASS 8.0 27189234 standards to help procurement integrations. By delivering a zinc-plated sheet steel partition with a complete hardware kit, it enables faster, compliant retrofits while preserving enclosure integrity and sealing performance for ongoing operations.
Product Information
Extended Description

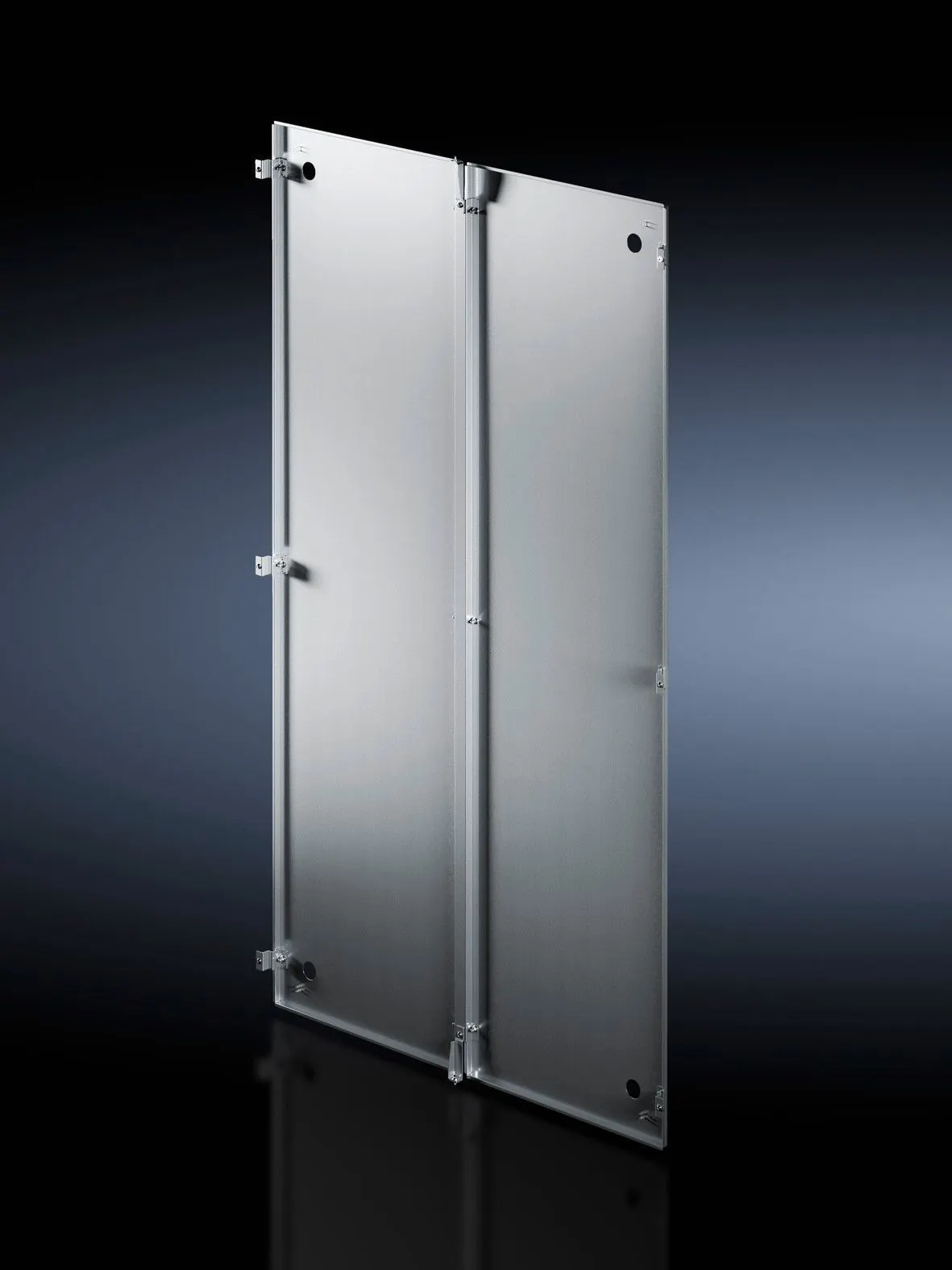

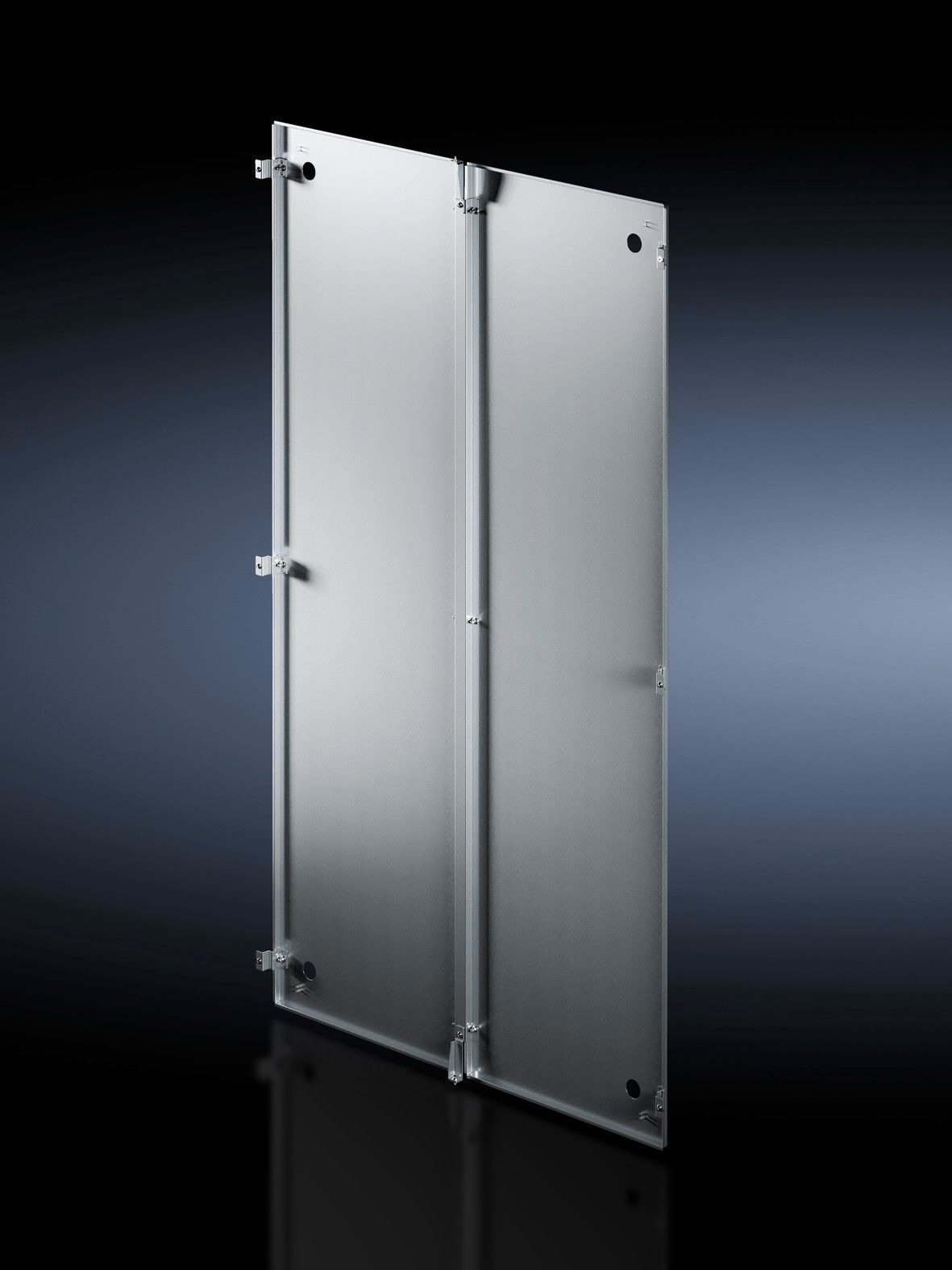

5301274 Rittal: Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,000 mm.
Article number
VX_IT 5301.274
Product description
For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Material
Sheet steel, zinc-plated
Supply includes
2 partitioning plates | 4 cover caps | Punched rail | Seal | Assembly parts
To fit
Height:Â = 2,000 mm | Depth:Â = 1,000 mm
Assembly instruction
Assembly/removal only supported for enclosures without interior installation.
Packs of
1 pc(s).
Weight/pack
24 kg
PCF per pack (cradle-to-gate)
91.4Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177954816
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,000 mm.
Feature: Vertical partition plates are screw-fastened for VX IT with an integrated sealing profile. Benefit: Ensures enclosure sealing during climate control or gas-extinguishing scenarios, reducing leakage risk and improving reliability in critical environments. Application: Retrofit projects in bayed VX IT enclosures where downtime must be minimized. Feature: Material is sheet steel, zinc-plated, providing corrosion resistance in harsh electrical environments. Benefit: Longer service life and lower maintenance, lowering total cost of ownership. Application: Outdoor or humid plant rooms where steel supports are common. Feature: Supply includes 2 partitioning plates, 4 cover caps, punched rail, seal, and assembly parts. Benefit: All necessary components arrive together for a faster, clean install, reducing supplier touchpoints. Application: Plant-wide retrofits with standardized parts. Feature: To fit height 2000 mm and depth 1000 mm. Benefit: Confirms precise compatibility with common VX IT bay configurations, avoiding misfits and rework. Application: Retrofitting existing VX IT bays. Feature: PCF per pack 91.4 kg CO2 eq (Cat B). Benefit: Supports sustainability goals with transparent carbon footprint data. Application: Green procurement and life-cycle assessments. Feature: Assembly instruction notes retrofit/removal is supported only for enclosures without interior installation. Benefit: Clear guidance reduces installation errors and protects enclosure integrity. Application: Stage-wise retrofitting where interior components are absent.
Get a Quick Quote for a Rittal 5301274
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301274?
Enquire Now
FAQs
The installation involves mounting the two partitioning plates inside the VX IT frame using the supplied assembly parts, seal, and punched rail. It is designed for retrospective mounting, allowing installation without interior components and with careful handling to preserve enclosure seals. Ensure enclosure height is 2000 mm and depth is 1000 mm, and follow the included assembly instructions for a leak-free retrofit.
Key specs to verify include enclosure height of 2000 mm and depth of 1000 mm, sheet steel zinc-plated construction, and the supplied kit contents (2 partition plates, 4 cover caps, punched rail, seal, and assembly parts). Weight per pack is 24 kg, and the PCF is 91.4 kg CO2 eq (Cat B). Confirm compliance with ETIM 9 EC002525 and ECLASS 8.0 27189234 for system integration.
The VX IT 5301.274 partition is designed specifically for VX IT bayed enclosures, with dimensions and mounting features matched to that family. For retrofit projects in other enclosure series, verify clearance, mounting points, and sealing compatibility with the supplier to avoid gaps or compromised seals.
The product data provides ETIM 9 EC002525 and ECLASS 8.0 27189234 classifications, which support procurement and data interchange. For regulatory compliance such as CE or IP ratings, confirm with Rittal or the official data sheets and ensure installation follows manufacturer guidance to meet your facility’s certification requirements.
Retrofitting with the VX IT 5301.274 partitions reduces downtime during reconfiguration and minimizes enclosure access complexity, lowering labor costs and risk of damage. The included hardware simplifies installation, and the 24 kg per-pack weight facilitates handling. The documented PCF of 91.4 kg CO2 eq supports sustainability reporting and may influence lifecycle-related cost considerations.
