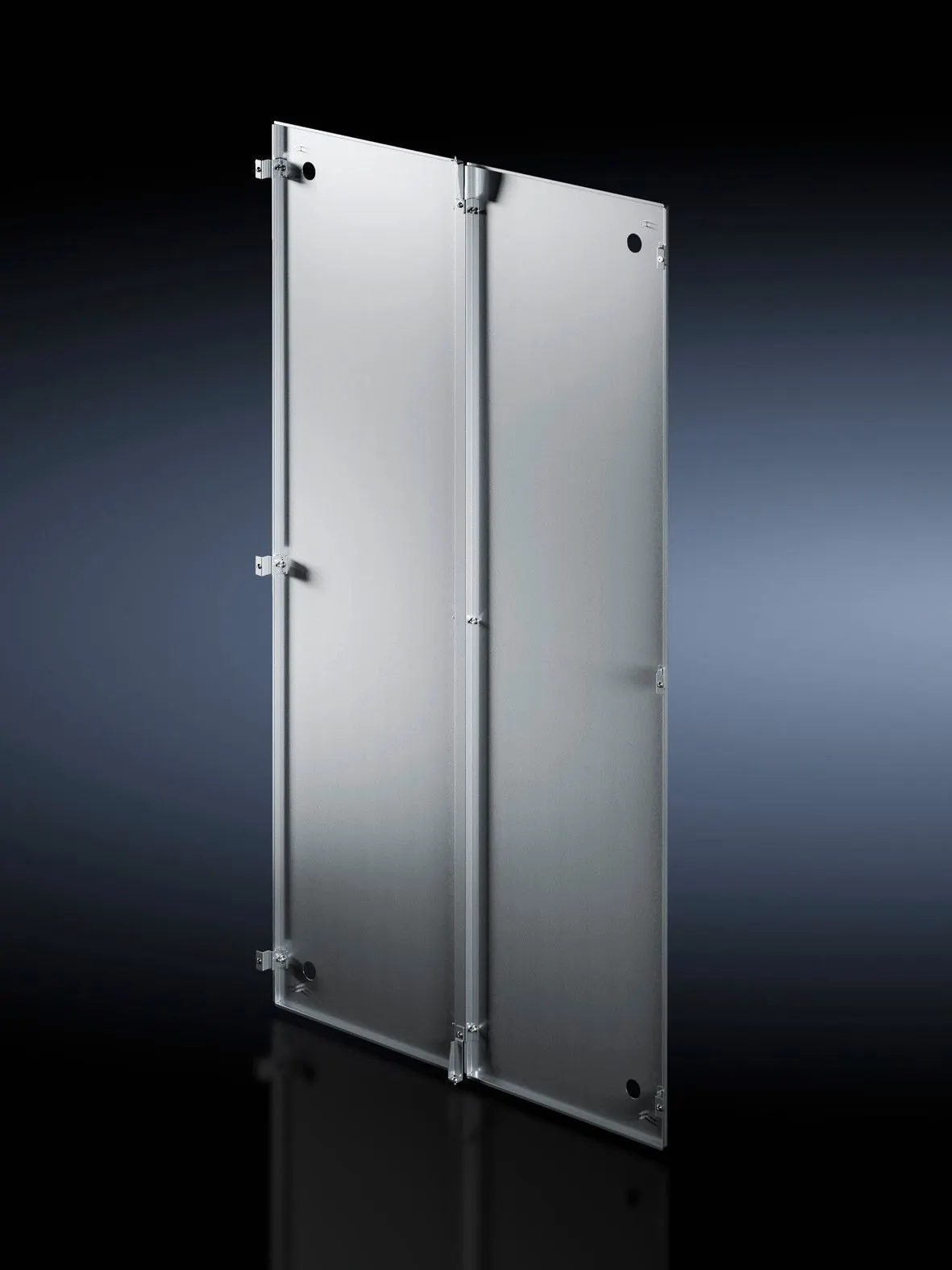

Rittal VX_IT 5301.275 Partition - Sealing Profile
Part Number: 5301275
Quick Summary
Rittal VX_IT 5301.275 partition enables retrospective installation and dismantling of bayed VX IT enclosures. Retrofits in active installations are often time-consuming and disruptive; this kit offers outside- or inside-the-frame installation to minimize downtime and equipment removal. While exact baying distances are not required, the partition sits inside the frame, enabling flexible reconfiguration without major disassembly. Industry standards for enclosure components emphasize reliable sealing, structural integrity, and safe operation; typical certifications include CE marking, robust IP-rated sealing, and SIL-relevant safety considerations. By simplifying retrofit workflows and delivering a complete kit, the solution supports fast, compliant enclosure upgrades and reduces total cost of ownership while preserving climate control performance and gas suppression readiness.
Product Information
Extended Description
5301275 Rittal: For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Article number
VX_IT 5301.275
Product description
For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Material
Sheet steel, zinc-plated
Supply includes
2 partitioning plates | 4 cover caps | Punched rail | Seal | Assembly parts
To fit
Height: = 2,000 mm | Depth: = 1,000 mm
Assembly instruction
Assembly/removal only supported for enclosures without interior installation.
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954823
ETIM 9
EC002525
ECLASS 8.0
27189234
Feature: Retrofittable partition kit for bayed VX IT enclosures. Business Impact: Reduces downtime and field labor by enabling retrofits inside the frame or from the outside before baying. Application: Ideal for ongoing data center, industrial control, and telecom cabinet upgrades where quick reconfiguration is required. Feature: Integrated sealing profile for climate control and extinguisher gas applications. Business Impact: Improves enclosure sealing integrity, minimizes leak paths, and supports compliant climate conditioning and gas suppression. Application: Critical where gas extinguishing or controlled climate conditions are required. Feature: Flexible installation inside the frame or from the exterior. Business Impact: Maximizes retrofit options, preserves existing bay spacing, and reduces planning risk. Application: Fits standard VX IT bays at 2000 mm height and 1000 mm depth. Feature: Complete supply includes 2 partition plates, 4 cover caps, punched rail, seal, and assembly parts. Business Impact: Accelerates site delivery and installation, lowers procurement complexity. Application: Reduces sourcing time for field teams and ensures compatible hardware. Feature: Material: sheet steel, zinc-plated. Business Impact: Offers durable corrosion resistance in harsh industrial environments, extending service life. Application: Suitable for general enclosure use in industrial facilities.
Get a Quick Quote for a Rittal 5301275
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301275?
Enquire Now
FAQs
The VX_IT 5301.275 partition supports both outside-the-bay and inside-the-frame installation, enabling retrospective retrofit without complete enclosure removal. It is designed to fit the standard 2,000 mm high and 1,000 mm deep VX IT bays, and it can be mounted after baying or before final enclosure assembly to minimize downtime and field disruption.
The partition includes an integrated sealing profile to improve enclosure sealing for climate control and extinguisher gas applications. This reduces leak paths, enhances environmental control, and supports safe operation in environments with temperature control needs or gas suppression requirements, contributing to system reliability and regulatory compliance.
Yes. The partition is designed for retrospective installation inside the VX IT frame and does not require specific baying distances between enclosures. It is compatible with standard VX IT configurations, allowing flexible retrofits without re-planning bay spacing, minimizing disruption to live systems.
The product references include ETIM 9 EC002525 and ECLASS 8.0 27189234 classifications, alongside the EAN 4028177954823. While the data sheet does not explicitly list CE, IP, or SIL certifications, these classifications support interoperability within industrial automation catalogs and typical enclosure component practices.
Using the VX_IT partition kit reduces retrofit time and field labor by enabling faster, flexible upgrades with minimal disassembly. The complete supply (two partition plates, four caps, punched rail, seal, and parts) lowers procurement lead times, while improved sealing reduces energy and climate-control losses, contributing to lower total cost of ownership over the enclosure ecosystem.
