Rittal 5301281 Partition for VX IT - IP20
Part Number: 5301281
Quick Summary
Partition for VX IT, model 5301281, suspends between two VX IT enclosures for organized rack mounting. Many installations struggle with cable routing and maintaining enclosure integrity when baying multiple cabinets. Key standards include IP20 protection with fitted caps, and alignment with ETIM EC002525 and ECLASS 27189234 to simplify procurement. This rugged partition leverages sheet steel, zinc-plated construction to withstand tough industrial environments, delivering reliable performance in automation and electrical cabinet applications. By enabling quick installation and consistent baying, it reduces downtime and improves serviceability, while supporting scalable VX IT configurations and compliant, tidy cable management.
Product Information
Extended Description

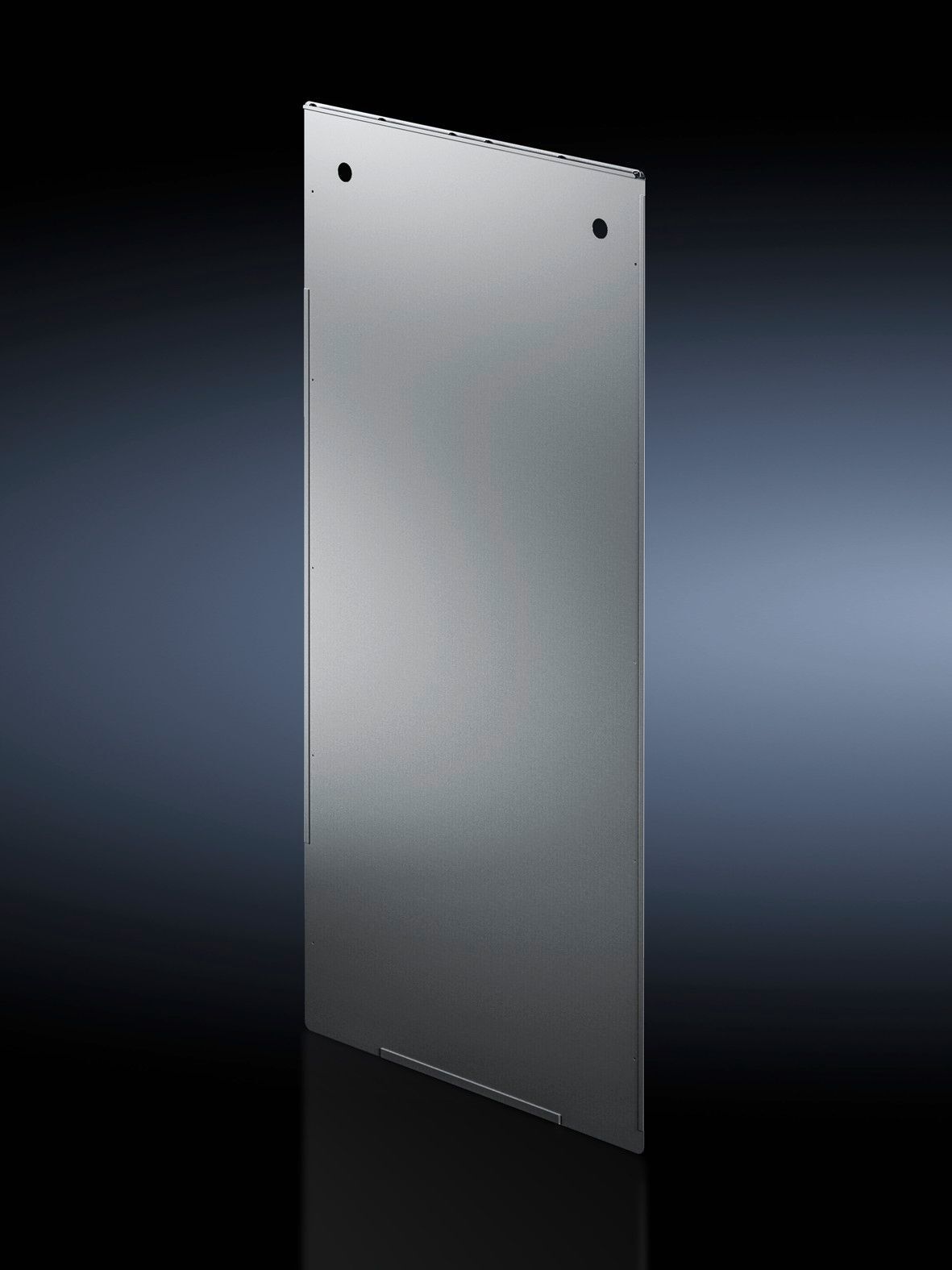

5301281 Rittal: Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,200 mm, sheet steel, zinc-plated
Article number
VX_IT 5301.281
Product description
For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Benefits
Simply slides into position
Material
Sheet steel, zinc-plated
Supply includes
Partition | 2 cover caps
To fit
Enclosure type: VX IT | Height: = 2,000 mm | Depth: = 1,200 mm
Assembly instruction
A baying gap of 3 mm is required to insert the partition
Note
Use baying connector, external, 3 mm
IP protection category to IEC 60 529
IP 20 (with fitted cover caps)
Packs of
1 pc(s).
Weight/pack
32 kg
PCF per pack (cradle-to-gate)
121.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177954830
ETIM 7.0
EC002525
ECLASS 8.0
27189234
Product description
Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,200 mm, sheet steel, zinc-plated
Feature: One-piece partition insertable between two VX IT enclosures. Business impact: Simplifies baying and reduces installation time, lowering labor costs and risk of misalignment. Application: Ideal for expanding rack systems in automated facilities where fast deployment matters. Feature: Material is sheet steel, zinc-plated. Business impact: Enhances durability and corrosion resistance in harsh environments, extending enclosure life and reducing maintenance. Application: Suitable for manufacturing floors and harsh industrial settings where metal partitions endure frequent access. Feature: IP20 protection with fitted cover caps. Business impact: Provides basic ingress protection for internal cabling while maintaining accessible cable entries, lowering risk of damage and short circuits. Application: Keeps cables organized behind a protective barrier in VX IT bays. Feature: Cable entry holes left/right Ø40 mm with seal caps included. Business impact: Enables clean cable routing and sealed penetrations to support compliant installations. Application: Facilitates conduit and cable management for power, data, and controls. Feature: Baying gap requirement of 3 mm and external baying connector note. Business impact: Ensures precise alignment and secure mounting, minimizing vibration and movement. Application: Critical for stable, repeatable configurations in multi-enclosure systems. Feature: Weight/pack 32 kg and PCF 121.9 kg CO2 eq (Cat B). Business impact: Considerations for logistics planning and environmental due-diligence in product lifecycle assessments. Application: Useful when evaluating total cost of ownership and corporate sustainability goals.
Get a Quick Quote for a Rittal 5301281
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301281?
Enquire Now
FAQs
Installation requires a baying gap of 3 mm between two VX IT enclosures. Simply slide the partition into the baying position between the cabinets, ensuring alignment with the enclosure edges. Use the external baying connector (3 mm) if recommended, and seal any cable entry holes with the included caps for IP20 protection.
The partition is a one-piece insertable divider made from sheet steel and zinc-plated for durability. It fits VX IT enclosures up to 2,000 mm in height and 1,200 mm in depth, with two Ø40 mm cable entry holes in the left and right corners that can be sealed with caps.
Yes. The partition supports organized cable routing through two Ø40 mm holes, with caps to seal penetrations, enabling cleaner installations and improved airflow. Its rigid zinc-plated steel construction also helps maintain integrity in automated environments with frequent maintenance.
The partition carries IP20 protection with fitted cover caps, aligning with IEC 60 529 standards to protect internal components from incidental ingress. It is cataloged under ETIM 7.0 EC002525 and ECLASS 8.0 27189234 for procurement and interoperability.
The partition weighs 32 kg per pack and has a cradle-to-gate PCF of 121.9 kg CO2 eq (Cat B), which informs sustainability and logistics planning. Its durable sheet steel construction, quick install, and compatibility with VX IT bays help reduce downtime, maintenance costs, and long-term replacement needs.
