Rittal VX_IT 5301.282 Partition - IP20 with caps
Part Number: 5301282
Quick Summary
Rittal VX_IT 5301.282 partition is a rack-mounting solution that separates and guides cables between VX IT enclosures, optimizing cabinet organization for reliable control panels. Engineers often battle cluttered cable routing and limited space in bayed enclosures, which slows commissioning and complicates future upgrades. Its IP20 protection with fitted caps supports safe operation in industrial environments, while ETIM EC002525 and ECLASS 27189234 classifications ensure consistent data handling across sourcing platforms. Designed for rapid installation and scalable VX IT systems, this partition delivers streamlined cable management, easier maintenance, and improved enclosure integrity for growing automation deployments.
Product Information
Extended Description

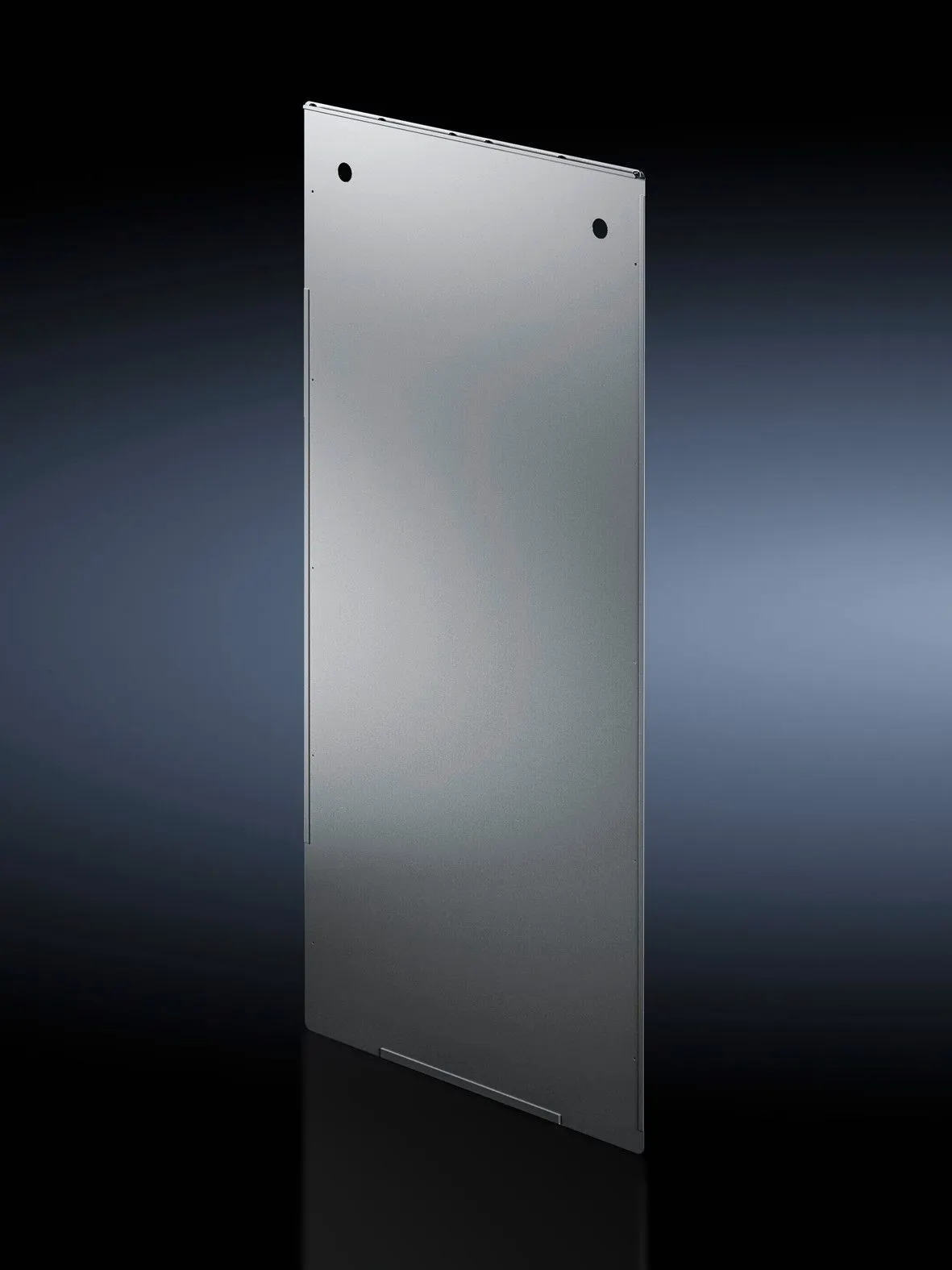

5301282 Rittal: For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Article number
VX_IT 5301.282
Product description
For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Benefits
Simply slides into position
Material
Sheet steel, zinc-plated
Supply includes
Partition | 2 cover caps
To fit
Enclosure type: VX IT
Assembly instruction
A baying gap of 3 mm is required to insert the partition
Note
Use baying connector, external, 3 mm
IP protection category to IEC 60 529
IP 20 (with fitted cover caps)
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954847
ETIM 9
EC002525
ECLASS 8.0
27189234
Feature: Rack-mounting partition for VX IT. Benefit: Separates and guides cables, improving airflow and accessibility in bayed enclosures. Application: Ideal for VX IT rack configurations and modular automation cabinets. Long-tail keywords: rack mounting accessory, VX IT enclosure partition, cable management in VX IT. The partition simply slides into position between two VX IT enclosures, reducing installation time and enabling scalable cabinet layouts for evolving control systems. Feature: Cable entry options. Benefit: One Ø40 mm hole per side accommodates cables and conduits; drilled holes can be sealed with included caps, preserving protection and cleanliness. Application: Flexible routing in dense panel areas. Long-tail keywords: Ø40 mm cable entry, sealed cable holes, enclosure cable management. Feature: Durable build. Benefit: Sheet steel, zinc-plated construction yields robust protection against industrial wear and corrosion. Application: Suitable for demanding factory environments and longer service life. Long-tail keywords: zinc-plated sheet steel, industrial enclosure accessory. Feature: Compatibility and packaging. Benefit: To fit VX IT enclosures; supply includes partition plus two cover caps for immediate use. Application: Plug-and-play integration with existing VX IT systems. Long-tail keywords: VX IT compatibility, enclosure partition with caps. Feature: Installation guidance and protection. Benefit: A 3 mm baying gap is required to insert the partition, supporting precise alignment and stable assembly. Application: Reliable integration with external baying connectors. Long-tail keywords: baying gap 3 mm, external baying connector. Feature: IP protection and sealing. Benefit: IP20 rating with caps ensures dust protection within rack systems when installed correctly. Application: Compliance with basic protection standards in industrial equipment. Long-tail keywords: IP20 protection, protective caps, enclosure integrity.
Get a Quick Quote for a Rittal 5301282
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301282?
Enquire Now
FAQs
The VX_IT 5301.282 partition is designed to fit VX IT enclosures, specifically to be installed between two bayed VX IT cabinets. It ships as a single partition with two cover caps and requires a 3 mm baying gap for insertion. The unit includes a left and right Ø40 mm hole for cable entry.
To install, align the partition between two bayed VX IT enclosures and slide it into the 3 mm baying gap. Ensure the external baying connector is used as specified. Once in place, seal any unused Ø40 mm holes with the included caps to preserve IP20 protection and maintain panel integrity.
The partition is made from zinc-plated sheet steel for durability in industrial environments. It provides IP20 protection when fitted with the supplied cover caps, guarding against dust intrusion in rack-mounted VX IT systems. The product is designed for repeated mating cycles and quick serviceability.
Yes, the VX_IT 5301.282 partition supports cable management and airflow control in both data centers and industrial control panels. Its simple installation, coupled with sealed cable entries, helps reduce cable clutter, improve maintenance access, and support scalable rack architectures within VX IT layouts.
Yes. The part is classified under ETIM 9 EC002525 and ECLASS 8.0 27189234, enabling consistent cataloging, searchability, and integration with ERP systems. The included EAN, article number, and customs tariff data further streamline purchasing and compliance across global supply chains.
