Rittal VX_IT 5301.284 Partition - Retrospective Installation
Part Number: 5301284
Quick Summary
Rittal VX_IT 5301.284 partition enables retrospective installation and dismantling for bayed VX IT enclosures. By allowing mounting from outside before baying or from inside after, it minimizes downtime and avoids invasive retrofit work. The solution aligns with ETIM 7.0 EC002525 and ECLASS 8.0 27189234 standards, supporting reliable cataloging and cross-system interoperability. For climate control or extinguisher gas applications, the integrated sealing profile preserves enclosure integrity while enabling faster project timelines and lower total cost of ownership. This partitioning accessory delivers a practical, field-ready approach to scalable VX IT installations.
Product Information
Extended Description

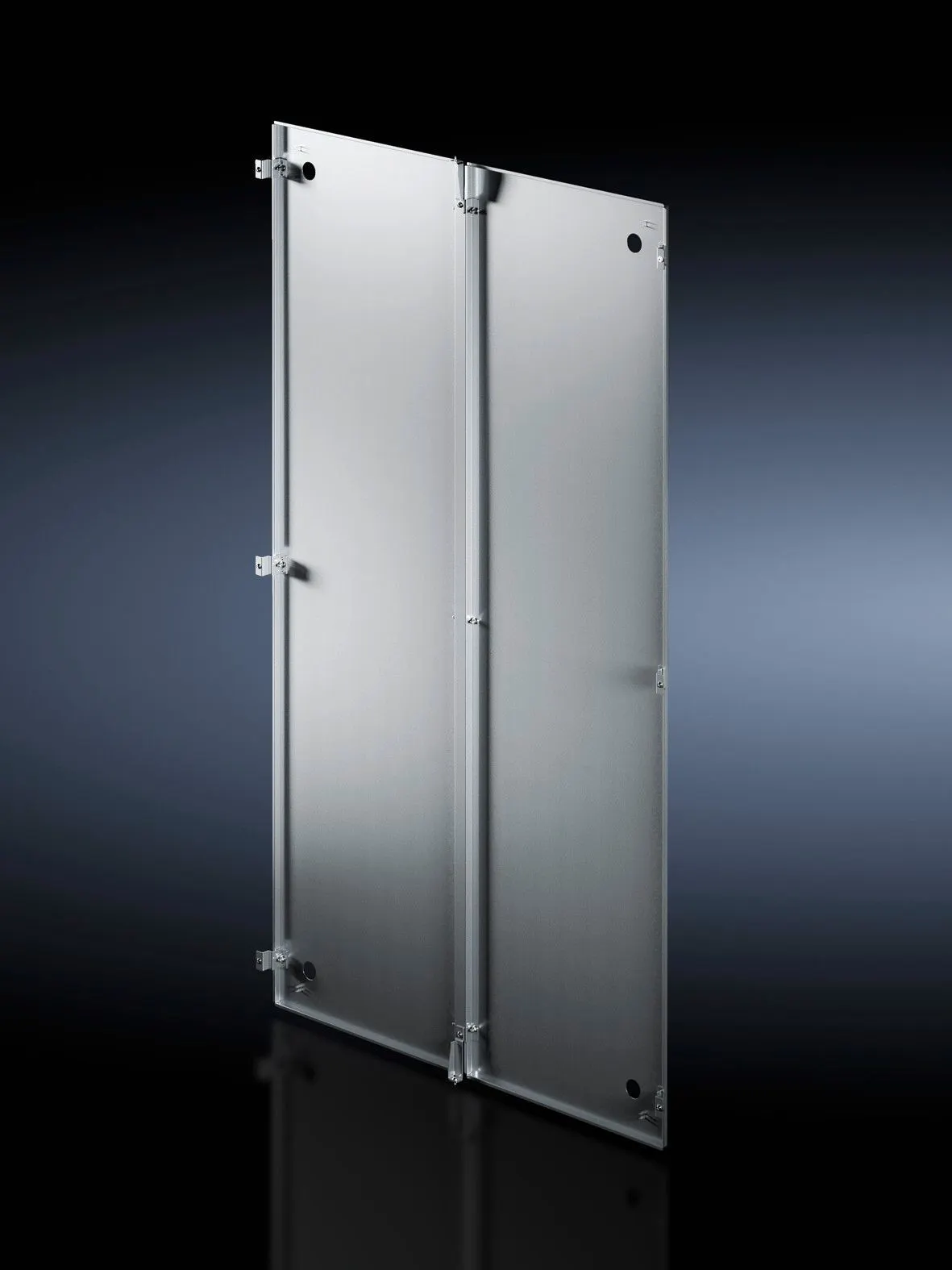

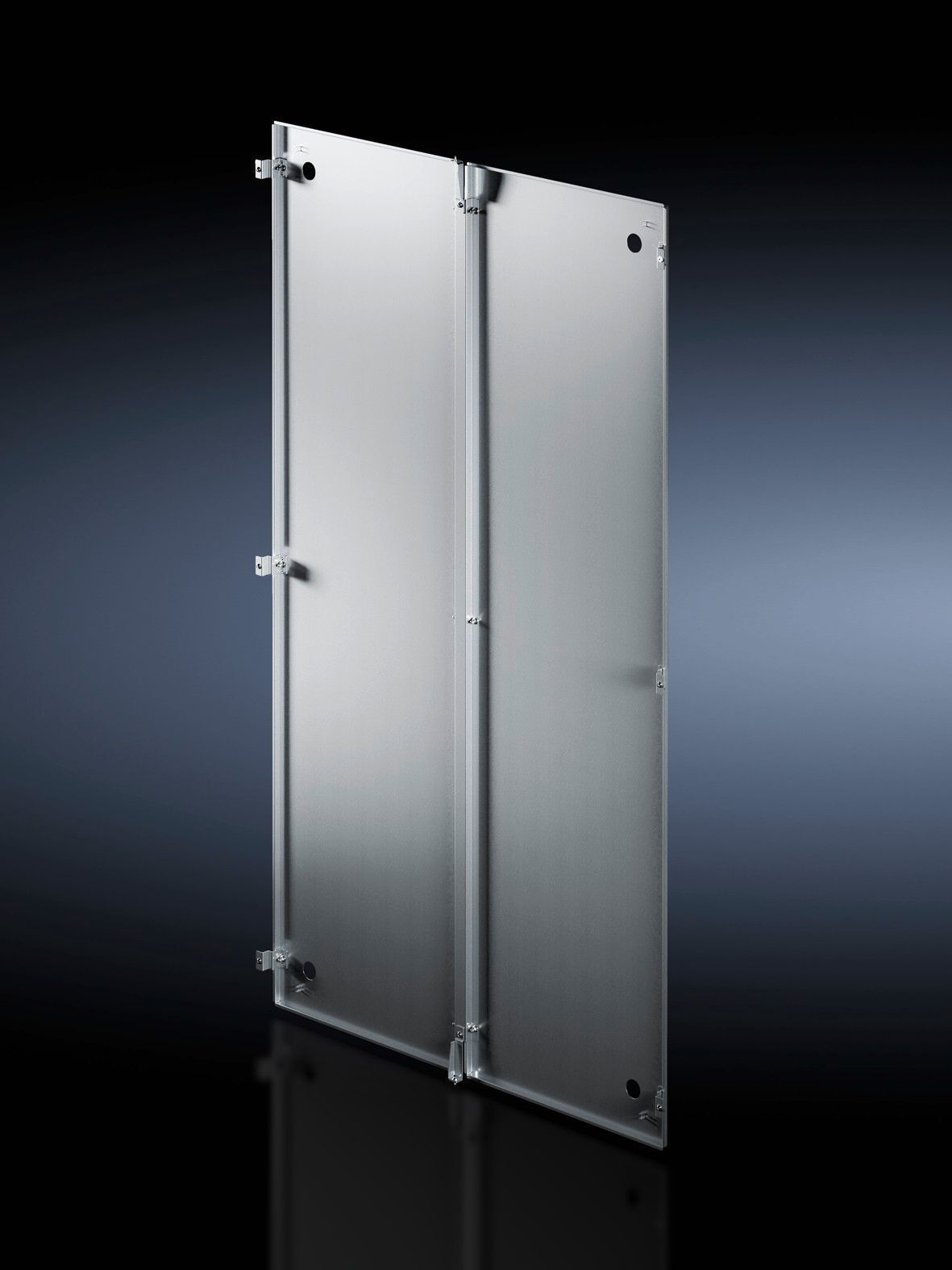

5301284 Rittal: Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,200 mm.
Article number
VX_IT 5301.284
Product description
For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Material
Sheet steel, zinc-plated
Supply includes
2 partitioning plates | 4 cover caps | Punched rail | Seal | Assembly parts
To fit
Height: = 2,000 mm | Depth: = 1,200 mm
Assembly instruction
Assembly/removal only supported for enclosures without interior installation.
Packs of
1 pc(s).
Weight/pack
28 kg
PCF per pack (cradle-to-gate)
106.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177954854
ETIM 7.0
EC002525
ECLASS 8.0
27189234
Product description
Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,000 mm, for enclosure depth 1,200 mm.
Feature: Retrofitting inside the VX IT frame is screw-fastened and can be completed without interior installation. Business Impact: Reduces on-site disruption and enables flexible upgrade sequencing. Application: Ideal for upgrading bayed enclosures where climate control or extinguisher gas sealing is required. Feature: Integrated sealing profile maintains enclosure sealing for climate control or gas extinguishing applications. Business Impact: Conserves environmental control performance and reduces leakage risk. Application: Applies to installations needing reliable seal performance during retrofits. Feature: Material is sheet steel, zinc-plated, delivering corrosion resistance and rugged durability in industrial environments. Business Impact: Lowers maintenance costs and extends service life. Application: Suitable for factory floors, switchgear rooms, and harsh environments. Feature: Supplied components include 2 partitioning plates, 4 cover caps, punched rail, seal, and assembly parts. Business Impact: Accelerates installation by providing complete, ready-to-use hardware. Application: Facilitates project planning and shortens lead times. Feature: Fits enclosure height 2000 mm and depth 1200 mm. Business Impact: Ensures reliable, predictable compatibility with VX IT bayed systems. Application: Standard dimension for wide adoption. Note: Assembly/removal is supported only for enclosures without interior installation. Business Impact: Clear compliance guidance prevents improper retrofits. Application: Plan retrofits accordingly to avoid misalignment.
Get a Quick Quote for a Rittal 5301284
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301284?
Enquire Now
FAQs
The partition is designed for retrospective mounting inside the VX IT frame and can be mounted from outside before baying or from inside after baying. It supports height 2000 mm and depth 1200 mm and ships with all required assembly parts, ensuring a straightforward upgrade path without interior modifications.
Key specs include sheet steel, zinc-plated construction; two partition plates, four cover caps, punched rail, seal, and assembly parts. Fitment targets enclosure height of 2000 mm and depth of 1200 mm; weight per pack is 28 kg. GTIN is 4028177954854 and the customs tariff number is 94039910.
Best suited for climate-control sealing and extinguisher-gas applications, thanks to the integrated sealing profile. It enables retrofitting without interior installation in non-contained bays and supports faster upgrade cycles, reducing downtime and improving system reliability.
Yes. Assembly/removal is supported only for enclosures without interior installation. There are no specified baying distance requirements between enclosures, but planning should consider the external mounting option prior to baying for optimal workflow.
The product has a cradle-to-gate PCF value of 106.7 kg CO2 eq (Cat B). This metric helps quantify the environmental impact of the partition per pack and can support sustainability reporting within industrial upgrade projects.
