Rittal VX_IT 5301.288 Partition for VX IT - IP20
Part Number: 5301288
Quick Summary
Rittal VX_IT 5301.288 partitions provide a rack-mount partition solution for VX IT enclosures in control cabinets and data centers. The design enables clean separation and orderly cable routing between two bayed VX IT cabinets, reducing install time and maintenance effort. In practice, technicians value the IP 20 protection level once fitted with the included caps, along with standardized ETIM EC002525 and ECLASS 27189234 classifications for seamless cataloging. The part is zinc-plated sheet steel for durability and corrosion resistance, and its simple slide-into-position installation accelerates commissioning while preserving a modular, scalable infrastructure. For procurement and integration, the partition aligns with VX IT enclosures, supporting efficient future expansions and consistent inventory.
Product Information
Extended Description

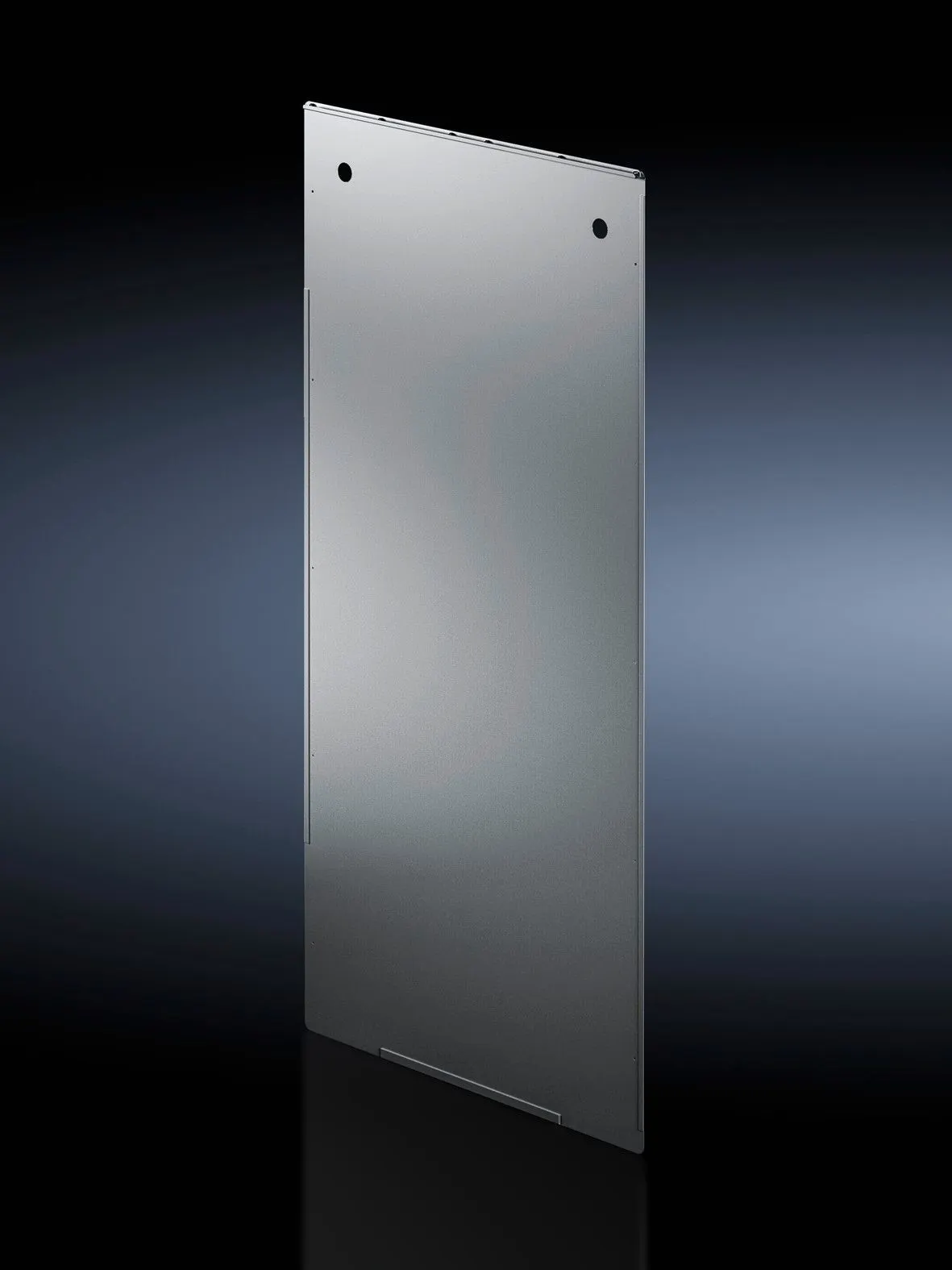

5301288 Rittal: For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Article number
VX_IT 5301.288
Product description
For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Benefits
Simply slides into position
Material
Sheet steel, zinc-plated
Supply includes
Partition | 2 cover caps
To fit
Enclosure type: VX IT
Assembly instruction
A baying gap of 3 mm is required to insert the partition
Note
Use baying connector, external, 3 mm
IP protection category to IEC 60 529
IP 20 (with fitted cover caps)
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954885
ETIM 9
EC002525
ECLASS 8.0
27189234
Feature: Simple slide-into-position installation. Business impact: Reduces on-site labor and eliminates misalignment during commissioning. Application: Ideal for quickly adding a partition between bayed VX IT enclosures in both new builds and retrofit projects. Long-tail keywords: rack mounting accessory, VX IT compatibility, quick install, modular enclosure components. Feature: Cable entry for organized routing. Business impact: Enables controlled cable paths with a dedicated Ø40 mm hole per corner, which can be sealed with caps to maintain enclosure integrity. Application: Enables clean power and data cabling in tight cabinet layouts. Long-tail keywords: cable management, Ø40 mm cable hole, edge-corner entry, sealable holes. Feature: Durable material and finish. Business impact: Zinc-plated sheet steel offers corrosion resistance and longer service life in industrial environments, reducing maintenance frequency. Application: Suitable for harsh factory floors and climate-controlled environments. Long-tail keywords: metal partition, corrosion resistance, enclosure accessories, durable hardware. Feature: IP rating and enclosure protection. Business impact: IP20 rating with fitted caps ensures safe operation in indoors, dry environments, protecting interior components. Application: Compliance with enclosure protection requirements in VX IT systems. Long-tail keywords: IP20 protection, protective caps, enclosure integrity. Feature: Clear VX IT compatibility. Business impact: Designed to fit VX IT enclosures with a 3 mm baying gap, enabling predictable assembly and future scalability. Application: System integrators planning modular cabinet layouts. Long-tail keywords: VX IT compatibility, baying gap 3 mm, modular enclosure layout. Feature: Packaging and inclusion. Business impact: Supplied as a single partition with two caps, simplifying procurement and reducing packaging waste. Application: Streamlined stocking and immediate deployment. Long-tail keywords: single-pack, included cover caps, ready-to-install.
Get a Quick Quote for a Rittal 5301288
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301288?
Enquire Now
FAQs
Begin by confirming a 3 mm baying gap between the enclosures. Slide the partition into place so it sits securely between the bays, then fit the supplied cover caps to seal the Ø40 mm cable holes. The unit ships as a single partition with two caps, ensuring a tidy, protected interior once installed.
Key specs include Article number VX_IT 5301.288, material sheet steel that is zinc-plated, IP20 protection with fitted caps, and inclusion of two cover caps. It is designed to fit VX IT enclosure types and requires a 3 mm baying gap for installation.
The partition is designed to fit VX IT enclosure configurations and is installed between two bayed VX IT cabinets. Ensure there is a 3 mm baying gap and use the external baying connector if required to maintain correct spacing and alignment during installation.
There are two Ø40 mm holes located in the left-hand and right-hand corner areas for cable entry. These drilled holes may be sealed with the included cover caps, helping maintain IP protection and a clean internal layout once cables are routed.
The partition accelerates installation, improves cable management, and enhances enclosure organization, reducing commissioning time and maintenance effort. Its durable zinc-plated steel construction supports long service life in industrial environments, while standardized classifications (ETIM/ECLASS) ease procurement and inventory management.
