Rittal 5301291 Partition - Sealing profile for VX IT
Part Number: 5301291
Quick Summary
Rittal 5301291 partition provides retrofittable vertical division for VX IT enclosures. This solution addresses the challenge of retrofitting bayed systems without compromising enclosure sealing or climate control. It aligns with industry classifications ETIM EC002525 and ECLASS 27189234, and factors like PCF 102.9 kg CO2 eq in Category B to support sustainability. Using this partition enhances sealing integrity for climate control or extinguisher gas, while enabling simple retrofit without changing baying distances. The result is faster commissioning, reduced downtime, and improved serviceability for industrial automation environments.
Product Information
Extended Description

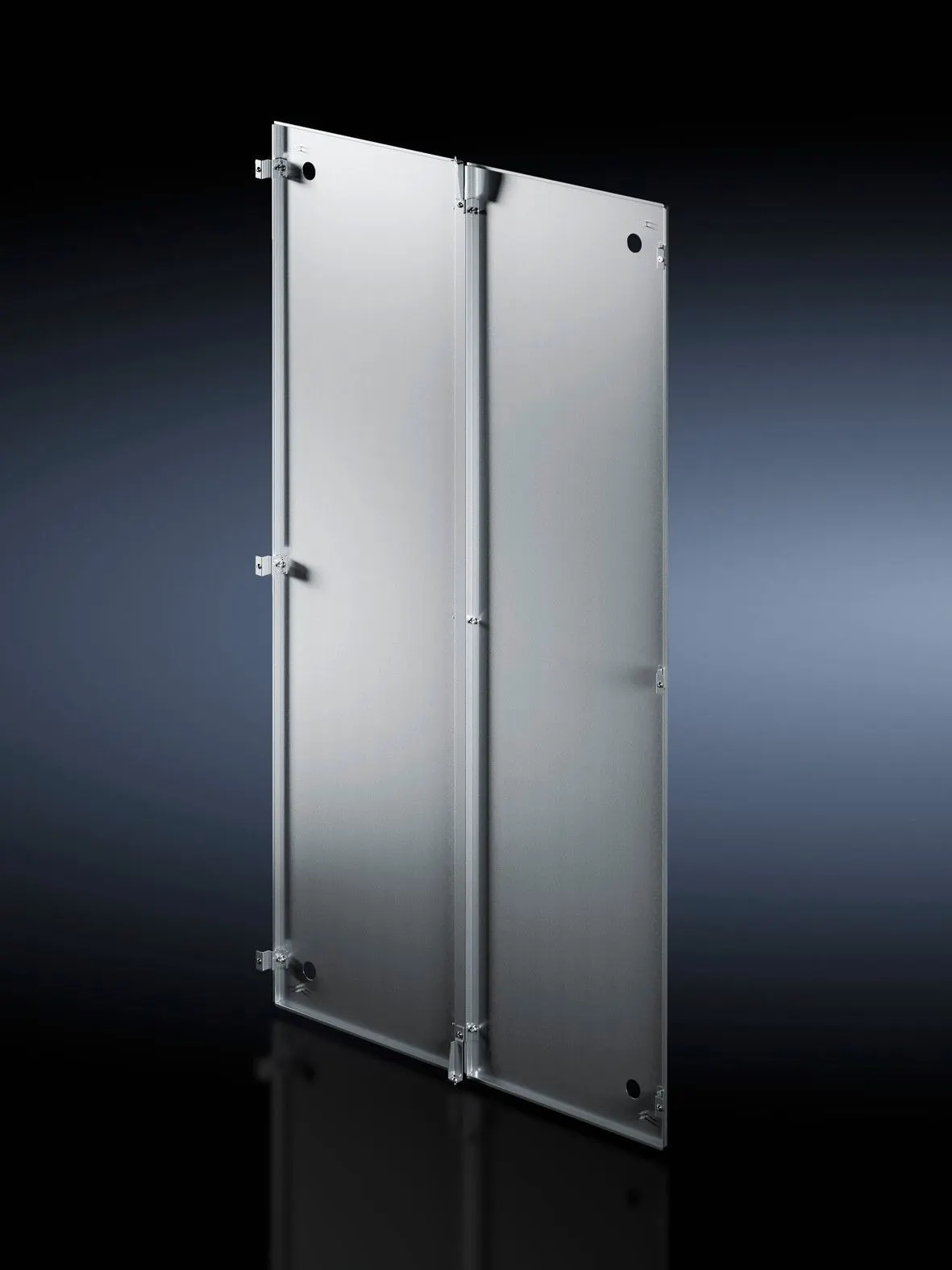

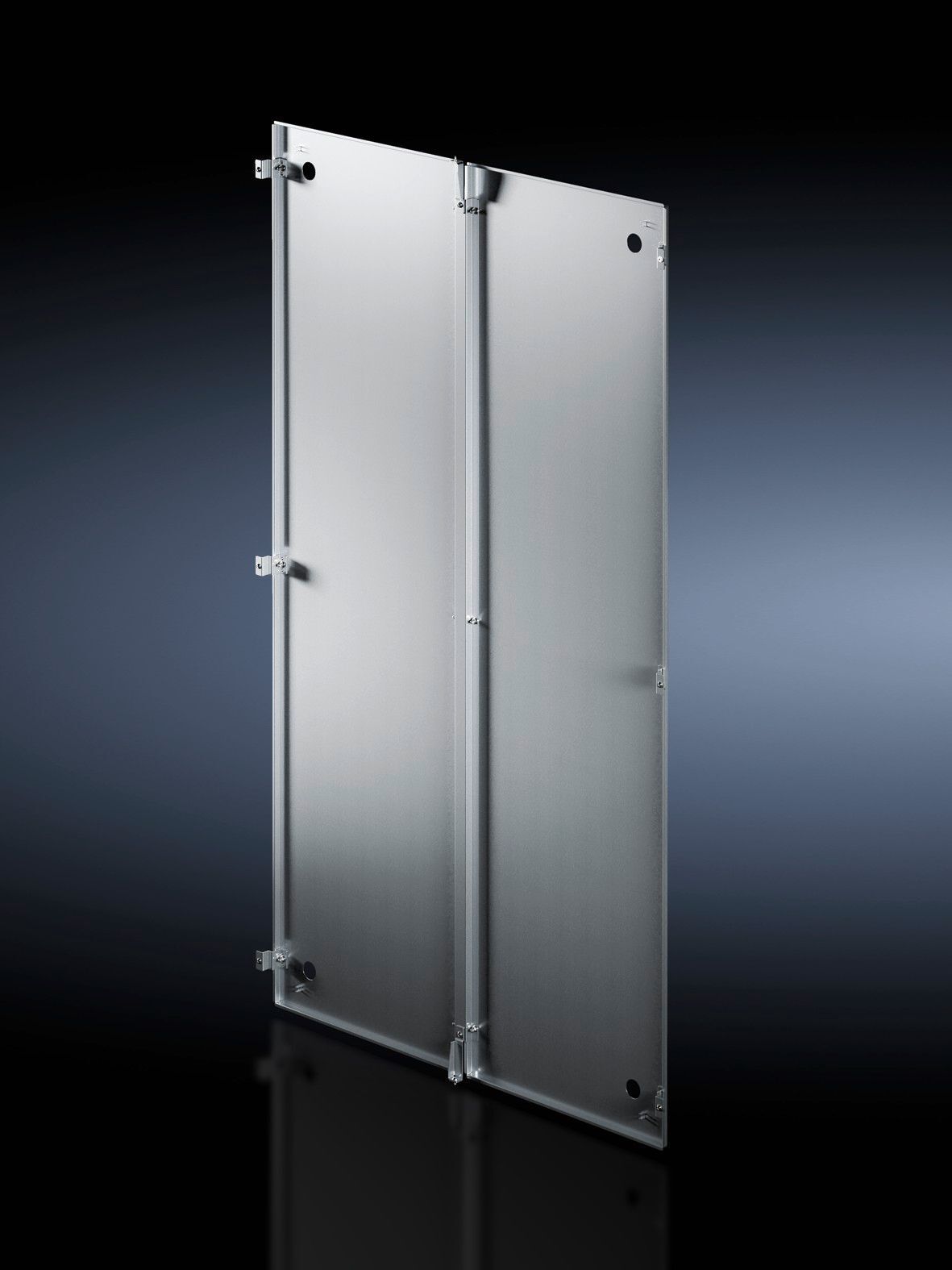

5301291 Rittal: Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,200 mm, for enclosure depth 1,000 mm.
Article number
VX_IT 5301.291
Product description
For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Material
Sheet steel, zinc-plated
Supply includes
2 partitioning plates | 4 cover caps | Punched rail | Seal | Assembly parts
To fit
Height:Â = 2,200 mm | Depth:Â = 1,000 mm
Assembly instruction
Assembly/removal only supported for enclosures without interior installation.
Packs of
1 pc(s).
Weight/pack
27 kg
PCF per pack (cradle-to-gate)
102.9Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177954892
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,200 mm, for enclosure depth 1,000 mm.
Feature: Retrofits without full dismantling. Business Impact: Reduces downtime and labor costs during enclosure upgrades. Application: VX IT bayed enclosures needing quick reconfiguration. The approach minimizes installation complexity while maintaining sealing performance for climate control and gas extinguishing systems. Feature: Integrated sealing profile. Business Impact: Maintains enclosure integrity across retrofit operations. Application: Climate control and gas extinguishment scenarios where seals must be preserved. Feature: Flexible mounting options. Business Impact: Allows outside installation prior to baying or inside after baying, speeding up project timelines. Application: Retrofit projects with limited access or time constraints. Feature: All-in-one supply including plates and rails. Business Impact: Simplifies procurement and installation, reducing hardware sourcing risk. Application: Standard VX IT retrofits, ensuring compatibility with existing frame systems. Feature: Durable materials and clear specifications. Business Impact: Long-term reliability in harsh environments, lowering maintenance costs. Application: Industrial control cabinets in manufacturing and automation settings. Feature: Sustainability data and compliance references. Business Impact: Supports green initiatives and regulatory alignment through ETIM/ECLASS references and PCF metrics. Application: Corporate sustainability reporting and regulatory audits.
Get a Quick Quote for a Rittal 5301291
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301291?
Enquire Now
FAQs
The 5301291 partition is designed for retrospective mounting inside or outside the VX IT frame. It ships with two partition plates, four cover caps, a punched rail, seal and assembly parts. It fits VX IT enclosures at 2,200 mm height and 1,000 mm depth. Assembly is supported only for enclosures without interior installation, reducing intrusion on existing layouts.
Key specs include height 2,200 mm and depth 1,000 mm; material is sheet steel, zinc-plated; weight per pack is 27 kg; supply includes 2 partitioning plates, 4 cover caps, a punched rail, seal and assembly parts. The article number is VX_IT 5301.291 and the EAN is 4028177954892. It aligns with ETIM EC002525 and ECLASS 27189234.
Yes. The integrated sealing profile supports enclosure sealing for climate control or extinguisher gas applications. It can be fitted from the outside before baying or from inside after baying, and since the partition sits inside the frame, retrofits can occur without altering baying distances, preserving system integrity during upgrades.
Installation is limited to enclosures without interior installation, per the assembly instruction. The product is designed for VX IT with a target fit of height 2,200 mm and depth 1,000 mm. Each pack weighs 27 kg and includes the necessary partition plates, caps, rail, seal and mounting hardware to streamline the retrofit.
The partition has a cradle-to-gate PCF of 102.9 kg CO2 eq (Category B). It is classified under ETIM EC002525 and ECLASS 27189234, with GTIN/EAN 4028177954892 and customs tariff 94039910. These data points support compliance reporting and lifecycle analysis for procurement and sustainability programs.
