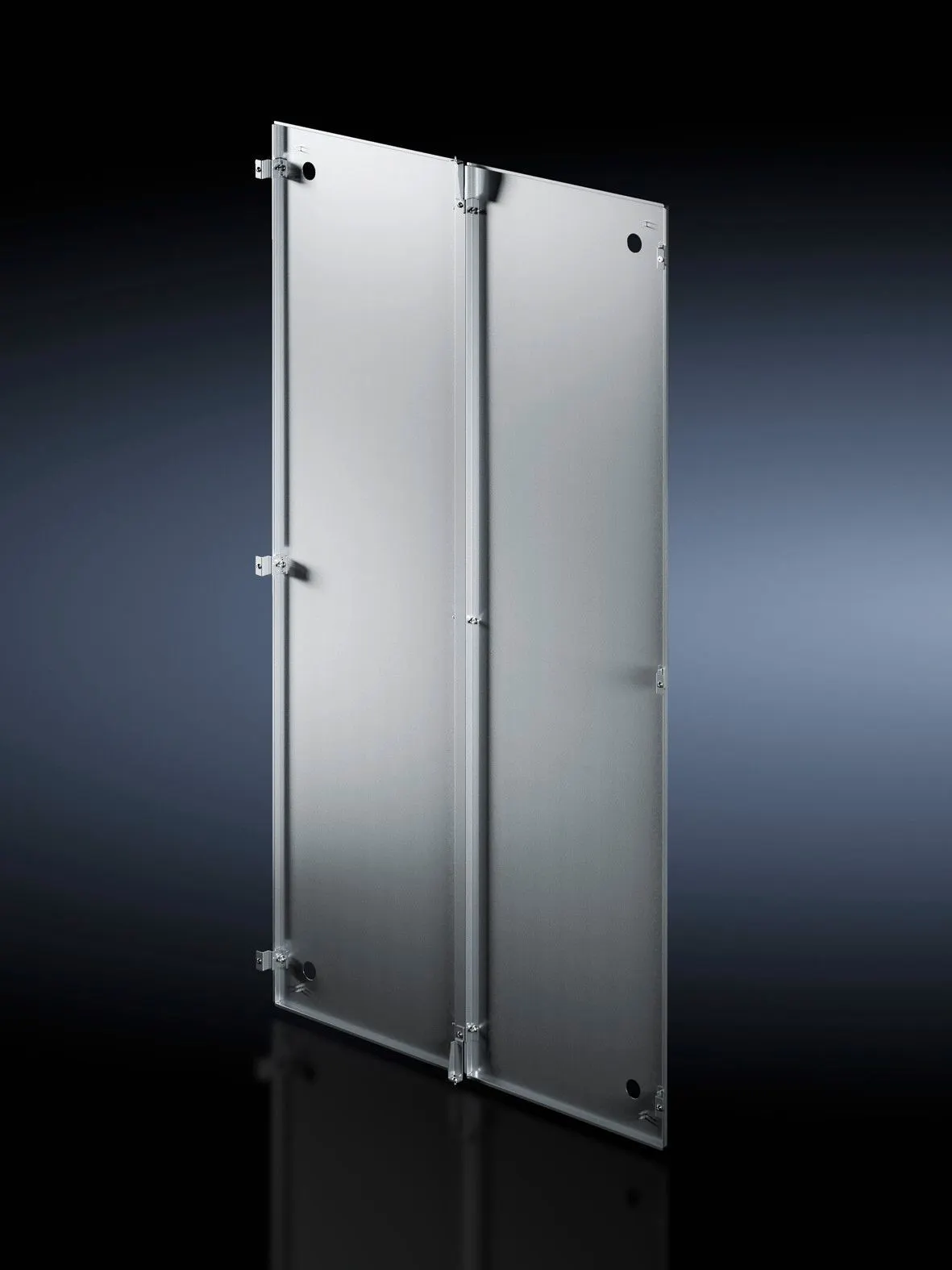

Rittal VX_IT 5301.292 Partition - Zinc-plated Sheet Steel
Part Number: 5301292
Quick Summary
Rittal VX_IT 5301.292 partition is a retrofit component that adds a sealed partition inside VX IT bayed frames to support climate control and extinguishing gas applications. The challenge many teams face is sealing and retrofitting enclosures without full dismantling, which leads to downtime and potential leaks. This solution features an integrated sealing profile and can be fitted from outside before baying or inside after baying, preserving enclosure integrity with minimal disturbance. While the data for this item lists ETIM EC002525 and ECLASS 27189234 classifications rather than explicit SIL, CE, or IP ratings, it aligns with standard industrial data sets and warrants review for your regulatory needs. The result is a cost-effective upgrade that improves sealing, air handling, and overall system reliability.
Product Information
Extended Description
5301292 Rittal: For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Article number
VX_IT 5301.292
Product description
For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Material
Sheet steel, zinc-plated
Supply includes
2 partitioning plates | 4 cover caps | Punched rail | Seal | Assembly parts
Assembly instruction
Assembly/removal only supported for enclosures without interior installation.
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954908
ETIM 9
EC002525
ECLASS 8.0
27189234
Feature → Business Impact → Application: The partition includes an integrated sealing profile that enhances enclosure sealing, improving climate control efficiency and reducing the risk of gas leaks. This translates to lower energy costs and higher safety margins in data centers and electrical rooms where environmental control is critical. Application: retrofit projects in bayed VX IT enclosures where external or internal installation is preferred to minimize downtime. Feature → Business Impact → Application: The kit provides two partition plates, four cover caps, a punched rail, a seal, and assembly parts, enabling a complete retrofit with fewer supplier delays and faster installation. Application: field retrofits and service operations that require quick, verifiable component provenance. Feature → Business Impact → Application: Sheet steel, zinc-plated construction offers corrosion resistance in harsh industrial environments, extending enclosure life and reducing maintenance costs. Application: manufacturing floors, machine rooms, and outdoor-rated enclosures. Feature → Business Impact → Application: Assembly instructions specify compatibility with enclosures without interior installation, helping teams plan work and avoid misinstallations. Application: projects where interior components are not yet installed or must be preserved during retrofit. Feature → Business Impact → Application: The packaging details (1 pack) and clear part listing support procurement accuracy and traceability, cutting sourcing time and avoiding part mismatches. Application: procurement teams seeking reliable, repeatable retrofits for VX IT systems.
Get a Quick Quote for a Rittal 5301292
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301292?
Enquire Now
FAQs
The VX_IT 5301.292 partition is designed for retrospective installation in bayed VX IT enclosures. It can be fitted from the outside before baying or from the inside after baying, preserving enclosure integrity. Note: assembly/removal is supported only for enclosures without interior installation, so plan accordingly to avoid conflicts with existing interior components.
Key specs include article number VX_IT 5301.292, material sheet steel with zinc plating, and a supply that comprises 2 partitioning plates, 4 cover caps, a punched rail, seal, and assembly parts. Customs tariff number is 94039910, and the item carries the EAN 4028177954908 with ETIM 9 EC002525 and ECLASS 8.0 27189234 classifications.
Retrofitting is restricted by the assembly instruction: 'assembly/removal only supported for enclosures without interior installation.' If interior components are present, alternative retrofit approaches or partial retrofits may be required, and you should consult Rittal for guidance to avoid damage or warranty concerns.
There are no specific required baying distances between enclosures for this partition. The design accommodates retrofitting within the frame structure and can be mounted from the outside before baying or from the inside after baying, enabling flexible installation without forcing layout changes.
Key ROI drivers include reduced downtime during retrofits, improved enclosure sealing for climate control and extinguishing-gas applications, and longer enclosure life due to corrosion-resistant zinc-plated steel. The kit-ready packaging and complete part set also lower sourcing time and procurement risk for engineering and service teams.
