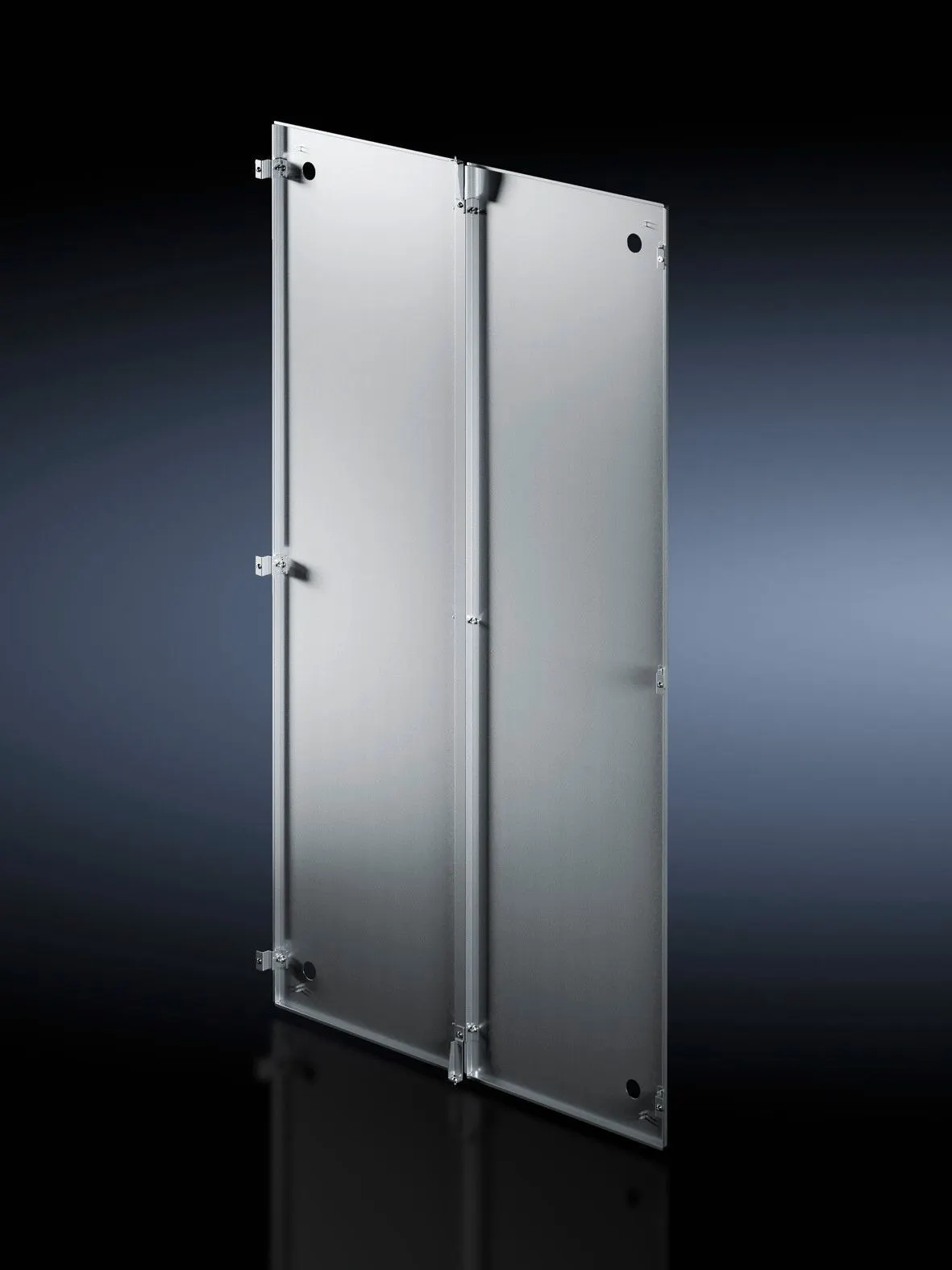

Rittal 5301303 Partition - Integrated sealing profile
Part Number: 5301303
Quick Summary
Rittal 5301303 Partition is a vertical divider for VX IT enclosures, designed for retrospective installation. It helps avoid downtime by enabling retrofits without interior work or complete baying resets. It adheres to ETIM EC002525 and ECLASS 27189234 standards, with a PCF Category B environmental footprint. The integrated sealing profile supports climate control and extinguisher gas applications, delivering reliable enclosure sealing for demanding environments. This partitioning solution streamlines procurement and reduces life-cycle costs for modular cabinet systems, making retrofit projects faster and less disruptive for maintenance teams and OEMs.
Product Information
Extended Description
5301303 Rittal: Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,200 mm, for enclosure depth 1,200 mm.
Article number
VX_IT 5301.303
Product description
For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Material
Sheet steel, zinc-plated
Supply includes
2 partitioning plates | 4 cover caps | Punched rail | Seal | Assembly parts
To fit
Height: = 2,200 mm | Depth: = 1,200 mm
Assembly instruction
Assembly/removal only supported for enclosures without interior installation.
Packs of
1 pc(s).
Weight/pack
32.74 kg
PCF per pack (cradle-to-gate)
124.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177954939
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,200 mm, for enclosure depth 1,200 mm.
Feature: Vertical partition, screw-fastened for VX IT enclosures. Business Impact: Enables retrospective installation without major interior changes, reducing downtime and accelerating project timelines. Application: Suitable for bayed VX IT cabinets in automotive, data center, and process automation environments. Feature: Integrated sealing profile. Business Impact: Maintains climate control performance and supports extinguisher gas scenarios, improving enclosure integrity and safety. Application: Critical in climate-controlled environments and hazardous-area installations where gas extinguishing is considered. Feature: Flexible mounting options. Business Impact: Can be fitted from outside before baying or from inside after baying, eliminating the need for specific bay distances and enabling on-site adaptability. Application: Retrofit programs in facilities with space constraints or evolving layouts. Feature: Complete kit and robust materials. Business Impact: Includes 2 partition plates, 4 cover caps, punched rail, seal, and assembly parts, simplifying procurement and reducing on-site coordination. Application: Rapid deployment in large cabinet installs and OEM assemblies. Feature: Specification and compliance alignment. Business Impact: Zinc-plated sheet steel delivers durability while ETIM and ECLASS classifications ensure smooth procurement and interoperability. PCF category B provides a transparent environmental footprint. Application: Industrial rollouts requiring traceable specifications and lifecycle data.
Get a Quick Quote for a Rittal 5301303
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301303?
Enquire Now
FAQs
The 5301303 is designed specifically for VX IT enclosures and bayed configurations. It retrofits inside the frame and can be mounted from outside before baying or inside after baying, with no required fixed baying distance, enabling flexible retrofit planning for modular cabinet systems.
Begin with confirming enclosure height of 2,200 mm and depth of 1,200 mm. Use the supplied components—2 partition plates, 4 cover caps, punched rail, seal, and assembly parts—to attach the partition. Follow the assembly notes that specify installation/removal is supported only for enclosures without interior installation.
The partition aligns with ETIM 9 EC002525 and ECLASS 8.0 27189234 classifications, supporting procurement consistency. It also lists a PCF Category B environmental footprint, giving stakeholders transparent lifecycle data for sustainability reporting.
Each pack weighs 32.74 kg and includes all required mounting hardware as a single unit. Packs are sold as 1 piece per package, with components including partition plates, cover caps, punched rail, seal, and assembly parts for complete installation.
Retrofitting with the 5301303 partition minimizes downtime, preserves existing interior layouts, and maintains sealing performance for climate control and extinguisher gas scenarios. The standardized components and clear specifications accelerate procurement, installation, and future expansion of VX IT enclosures, delivering lower total ownership costs.
