Rittal 5301312 Baying Connector - IP54 Rated Protection
Part Number: 5301312
Quick Summary
Rittal 5301312 Baying Connector enables baying of VX IT enclosures to VX/TS/TS IT systems for modular cabinet configurations. The solution addresses common alignment and sealing challenges that slow installation and elevate risk of enclosure leakage. It supports IP54 protection (IEC 60529) at maximum, and complies with industry classifications such as ETIM EC002622 and ECLASS 27189263, alongside zinc-plated sheet steel construction. By integrating four external baying connectors, two internal connectors, and an eight-meter baying seal, it delivers a robust, scalable path to expanding enclosure arrays. For buyers, this means faster deployments, predictable performance, and a reduced total cost of ownership when expanding data center or industrial cabinet infrastructures, while maintaining durability and traceability in procurement systems.
Product Information
Extended Description

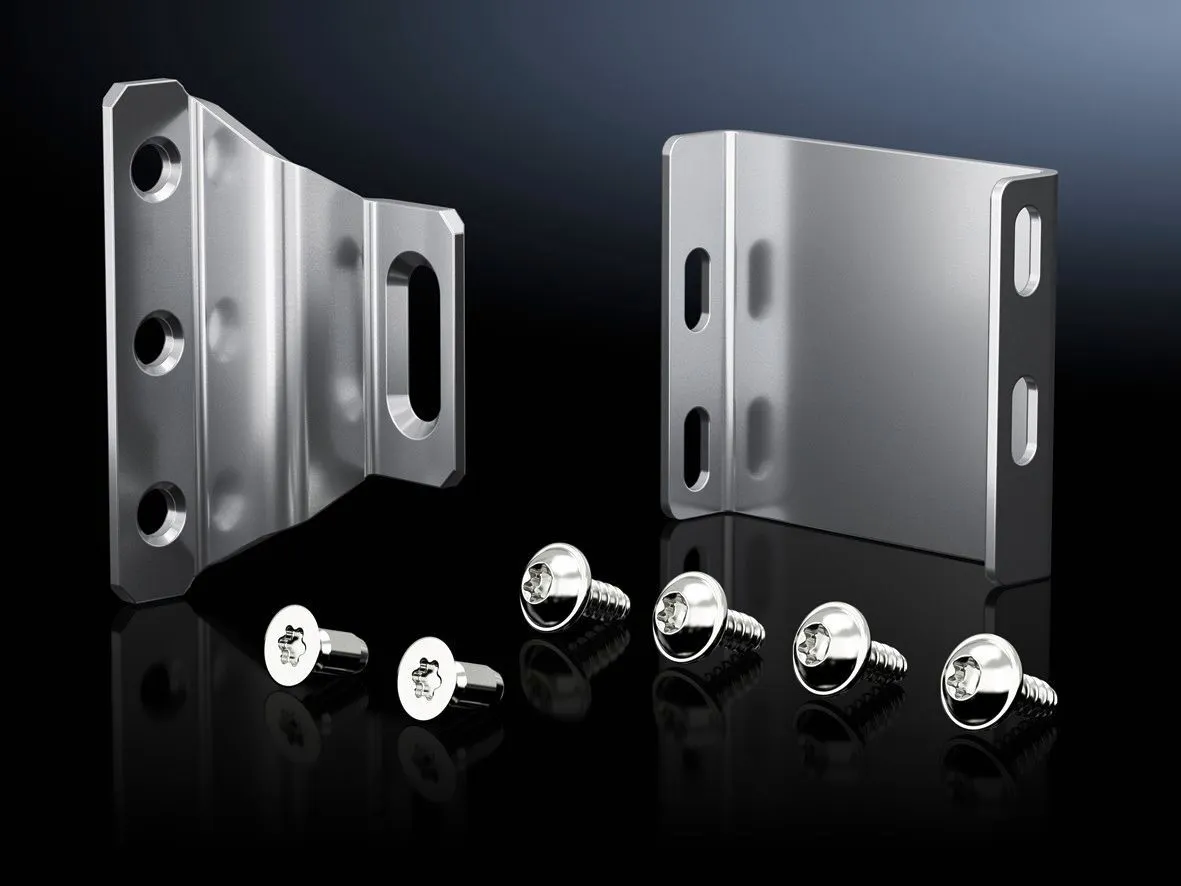

5301312 Rittal: Baying connector, for VX, VX IT/TS, TS IT, 4 baying connectors, external, 2 baying connectors, internal, baying seal, 8 m
Article number
VX 5301.312
Product description
For baying enclosures in the VX IT series to VX/TS/TS IT.
Material
Sheet steel
Surface finish
zinc-plated
Supply includes
4 baying connectors, external | 2 baying connectors, internal | Baying seal, 8 m | Assembly parts
Note
The maximum achievable IP protection category to IEC 60 529 is IP 54.
Packs of
6 pc(s).
Weight/pack
1.158 kg
PCF per pack (cradle-to-gate)
4.4Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
76169990
EAN
4028177950818
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
Baying connector, for VX, VX IT/TS, TS IT, 4 baying connectors, external, 2 baying connectors, internal, baying seal, 8 m
Feature → Business Impact → Application: Baying connectors included with four external and two internal interfaces plus an eight-meter baying seal enable rapid, repeatable enclosure alignment, reducing installation time and tightening tolerances in VX IT to VX/TS/TS IT configurations. This translates into measurable efficiency gains on site and lower risk of misalignment-related leaks during commissioning. Application: ideal for growing VX IT cabinet farms in data centers and industrial facilities where modular expansion is frequent. Feature → Business Impact → Application: Sheet steel construction with zinc-plated surface provides durable corrosion resistance in harsh environments, extending service life and lowering maintenance cycles. Application: suitable for indoor and semi-outdoor installations where physical protection and longevity matter. Feature → Business Impact → Application: IP54 protection target (IEC 60529) helps ensure environmental resilience in typical industrial settings, reducing rework due to ingress during commissioning. Application: supports reliability requirements in mixed humidity and dust-prone environments. Feature → Business Impact → Application: Pack configuration of six per pack with a weight of 1.158 kg per pack simplifies logistics and stocking for procurement teams, improving inventory planning and supply chain responsiveness. Application: ideal for standardized repacking and faster reordering. Feature → Business Impact → Application: PCF cradle-to-gate of 4.4 kg CO2 eq (Category B) supports sustainability reporting and green procurement programs, enabling lower environmental impact statements. Application: aligns with corporate ESG targets while maintaining cost discipline. Feature → Business Impact → Application: Broad compatibility with VX, VX IT/TS, and TS IT series along with included assembly parts reduces compatibility risk and accelerates project timelines. Application: ideal for system integrators and OEMs scaling multi-rack deployments while preserving install quality.
Get a Quick Quote for a Rittal 5301312
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301312?
Enquire Now
FAQs
Yes. The 5301312 is designed to bay VX IT enclosures to VX/TS/TS IT series, using four external baying connectors and two internal connectors plus an 8 m seal. Installation assumes VX, VX IT/TS, and TS IT compatibility for reliable, aligned cabinet configurations.
Key specs include Article VX 5301.312, material sheet steel with zinc plating, supply includes four external baying connectors, two internal connectors, and an 8 m baying seal; IP54 protection target; packs of six; weight per pack 1.158 kg; PCF 4.4 kg CO2 eq (Cat B); EAN 4028177950818; Customs tariff 76169990; ETIM EC002622; ECLASS 27189263.
Yes. The baying seal and connector arrangement are designed to achieve IP54 protection for the maximum configuration, reducing ingress risks when bays are expanded. Proper installation and correct pairing with VX IT/TS enclosures help maintain consistent sealing across multi-unit networks.
The product ships in packs of six, with a weight of 1.158 kg per pack. This packaging setup supports straightforward inventory management, consistent shipping weights, and predictable reordering for mid-to-large scale enclosure projects.
Confirm VX, VX IT/TS, and TS IT enclosure compatibility, ensure use of the included external and internal baying connectors, and follow the 8 m seal guidelines. Verify IP54 expectations in your environment and align with ETIM/ECLASS classifications for seamless catalog and procurement integration.
