Rittal VX_IT 5301.315 Partition - IP20, Enclosure Mount
Part Number: 5301315
Quick Summary

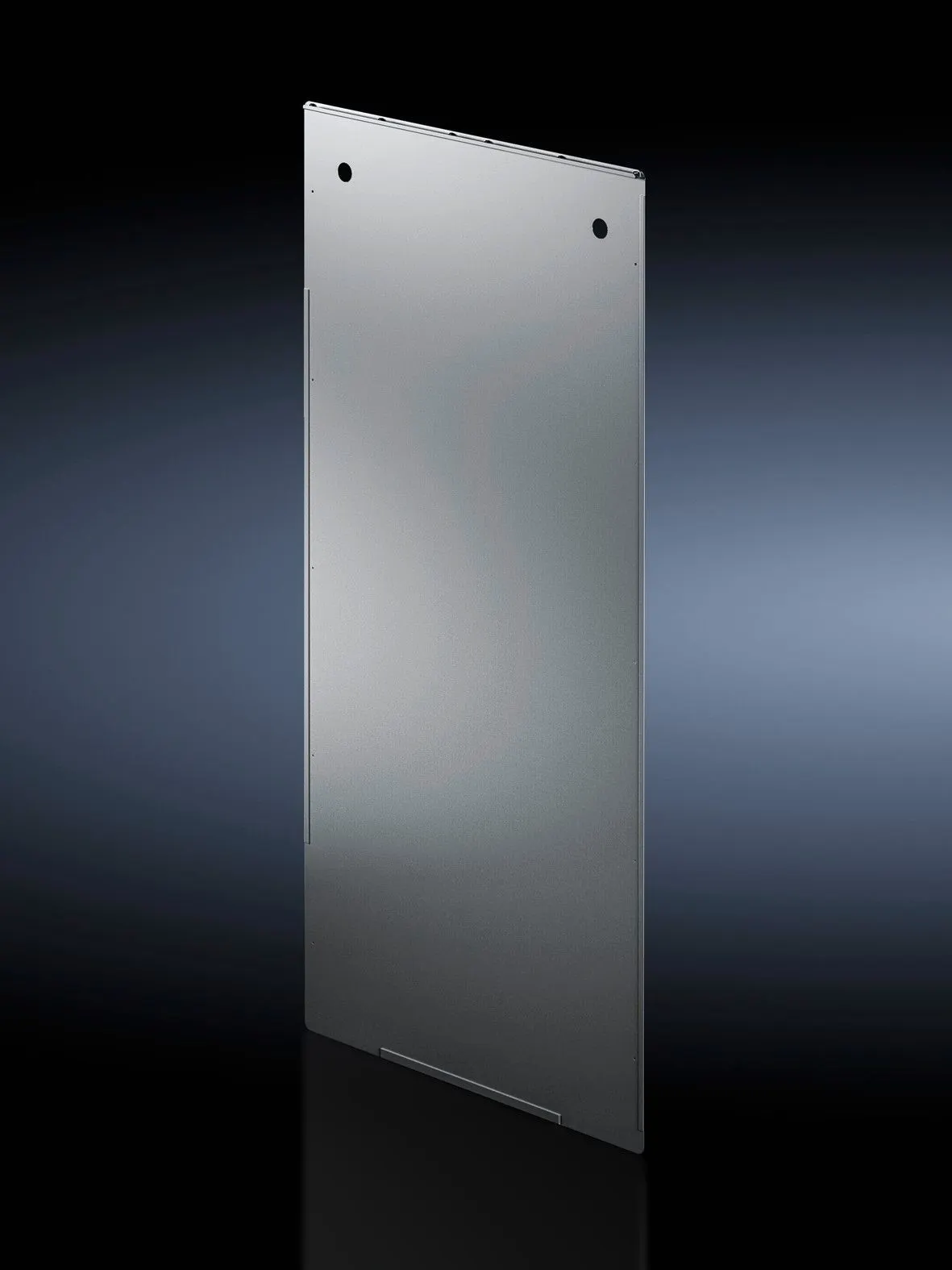

Rittal VX_IT 5301.315 partition is a one-piece insert for VX IT racks that suspends between two bayed enclosures. It is designed for enclosure height 2,450 mm and depth 1,000 mm, constructed from sheet steel and zinc-plated for durability. The partition delivers IP20 protection when fitted with the included cover caps and seals the cable entry holes to prevent dust ingress. Primary applications include creating a clean division in VX IT cabinets and supporting tidy cable routing with Ø40 mm holes in each corner. Designed for rapid installation, it slides between bays with a 3 mm baying gap, delivering reliable, reusable performance in busy manufacturing facilities.
Product Information
Extended Description
5301315 Rittal: Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,450 mm, for enclosure depth 1,000 mm, sheet steel, zinc-plated
Article number
VX_IT 5301.315
Product description
For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Benefits
Simply slides into position
Material
Sheet steel, zinc-plated
Supply includes
Partition | 2 cover caps
To fit
Enclosure type: VX IT | Height: = 2,450 mm | Depth: = 1,000 mm
Assembly instruction
A baying gap of 3 mm is required to insert the partition
Note
Use baying connector, external, 3 mm
IP protection category to IEC 60 529
IP 20 (with fitted cover caps)
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954953
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,450 mm, for enclosure depth 1,000 mm, sheet steel, zinc-plated
One-piece partition provides a seamless divider between two bayed VX IT enclosures, enabling quick insertion and alignment without custom fabrication. This translates to faster assembly, fewer misfits, and a cleaner internal interface for power and data cables. In practice, technicians can slide the panel into place and move on to the next baying step. The partition is constructed from sheet steel and zinc-plated for durability, offering long service life in harsh industrial environments and reducing maintenance costs over time. Cable management is enhanced by left and right Ø40 mm holes for cables and conduits, which can be sealed with the included caps to maintain IP20 integrity and minimize dust ingress. The design supports standard VX IT configurations and can be integrated with 3 mm baying connectors, promoting modular expansion with minimal downtime. Supplied as a complete pack, it includes the partition plus two cover caps for immediate installation.
Get a Quick Quote for a Rittal 5301315
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301315?
Enquire Now
FAQs
Install the partition by inserting it between two bayed VX IT enclosures, ensuring a 3 mm baying gap. Align with mounting rails and slide it into place. Use the external 3 mm baying connector if required, then seal any drilled cable holes with the included caps to maintain IP20 protection.
Yes. It is specifically designed for VX IT enclosures with a height of 2,450 mm and a depth of 1,000 mm. The one-piece insert fits within the standard baying configuration and complements the VX IT modular system without modification.
The partition features a Ø40 mm cable entry hole in each left and right corner area for routing cables and conduits. These holes can be sealed with the enclosed caps, helping to maintain enclosure integrity and minimize dust ingress while keeping cable runs tidy.
With the fitted cover caps, the VX_IT 5301.315 provides IP20 protection per IEC 60529. This rating applies to the installed partition within VX IT enclosures; additional sealing is not provided for higher IP levels, so consider environment-specific measures if exposure is greater.
The package includes one partition and two cover caps (VX_IT 5301.315). It is sold as a 1-piece pack, with the EAN 4028177954953 and article number VX_IT 5301.315. It ships ready for immediate baying between VX IT enclosures and supports quick procurement for modular rack builds.
