Rittal VX_IT 5301.317 Partition for VX IT Enclosures - IP20
Part Number: 5301317
Quick Summary
Rittal VX_IT 5301.317 Partition is a rack-mounted divider for VX IT enclosures. It addresses common cross-cabinet cable congestion and the risk of circuit mixing in tall, multi-bay systems. It provides IP 20 protection with fitted cover caps and aligns with ETIM EC002525 and ECLASS 27189234 standards for straightforward procurement and compliance. As a baying accessory, it speeds installation, reduces wiring errors, and supports scalable cabinet layouts, offering a clear ROI through faster service and easier maintenance while preserving enclosure integrity. This makes it a practical upgrade for panel builders and maintenance crews seeking predictable fit and documented compatibility.
Product Information
Extended Description

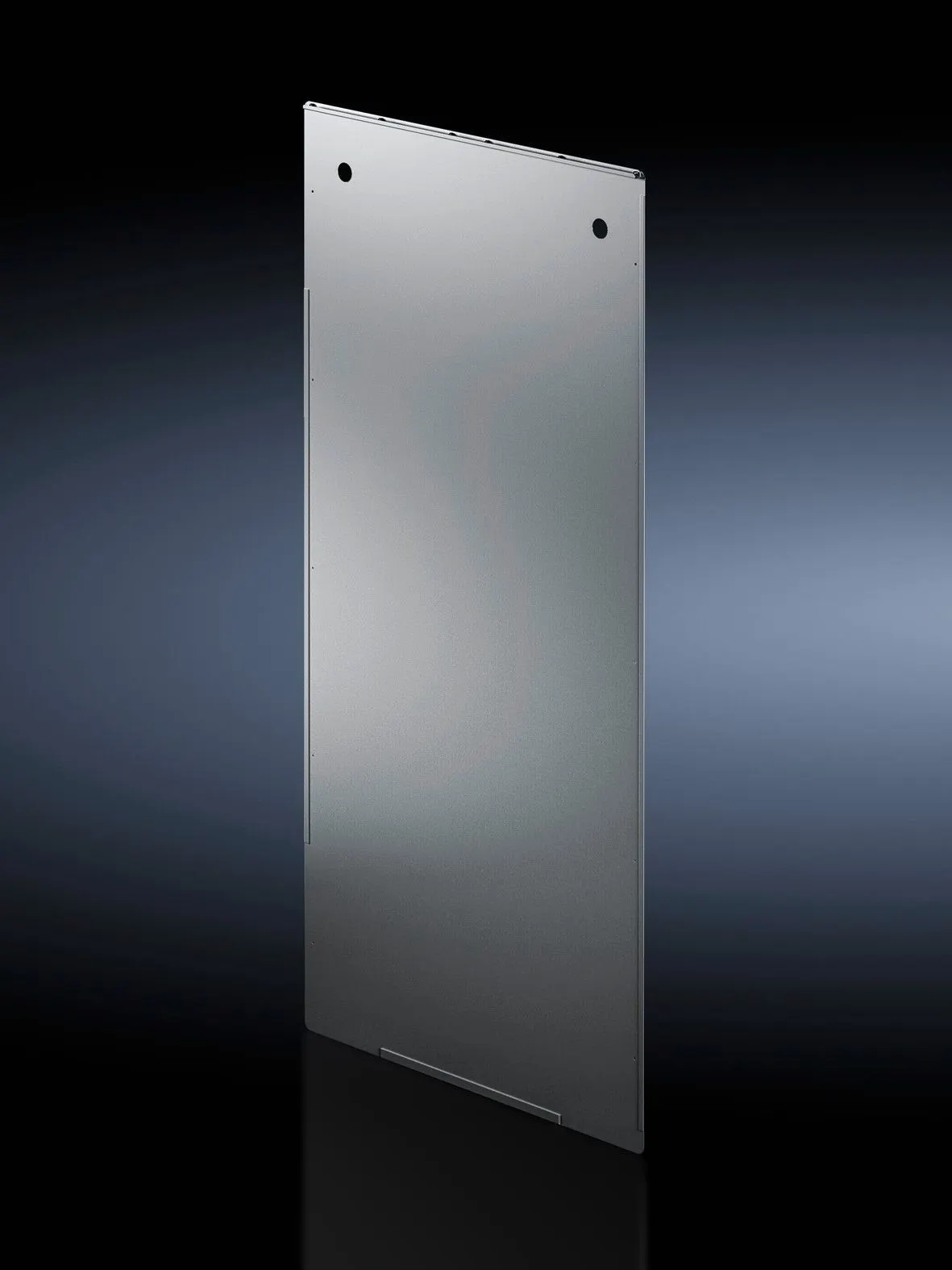

5301317 Rittal: Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,450 mm, for enclosure depth 1,200 mm, sheet steel, zinc-plated
Article number
VX_IT 5301.317
Product description
For rack mounting, suspended between two bayed enclosures. With one Ø 40 mm hole in the left-hand and right-hand corner areas for inserting cables, conduits etc. These drilled holes may be sealed with the enclosed cover caps.
Benefits
Simply slides into position
Material
Sheet steel, zinc-plated
Supply includes
Partition | 2 cover caps
To fit
Enclosure type: VX IT | Height: = 2,450 mm | Depth: = 1,200 mm
Assembly instruction
A baying gap of 3 mm is required to insert the partition
Note
Use baying connector, external, 3 mm
IP protection category to IEC 60 529
IP 20 (with fitted cover caps)
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954960
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
Partition, one-piece, insertable for VX IT, suspended between two bayed enclosures. For enclosure height 2,450 mm, for enclosure depth 1,200 mm, sheet steel, zinc-plated
Feature: One-piece insertable partition that simply slides into position. Business Impact: Reduces installation time and eliminates fiddly alignment steps, cutting labor costs and downtimes. Application: Ideal for inter-bay separation in VX IT systems where quick, tool-free installation is needed. Feature: Sheet steel, zinc-plated construction. Business Impact: Delivers durable, corrosion-resistant partitioning suitable for harsh factory environments, extending service life and lowering maintenance cycles. Application: Suitable for manufacturing floors and data-center-adjacent cabinets where moisture and dust are concerns. Feature: Cable access holes (two Ø40 mm) in left and right corners with enclosed caps. Business Impact: Enables flexible pre-routing of cables and conduits while preserving IP protection when caps are fitted, reducing rework. Application: Great for power and data cabling between bayed VX IT enclosures. Feature: Precise compatibility with VX IT, enclosure height 2,450 mm and depth 1,200 mm; baying gap of 3 mm; external baying connector recommended. Business Impact: Ensures a predictable, misalignment-free fit that accelerates commissioning and minimizes field adjustments. Application: Critical for modular installations and scalable cabinet layouts. Feature: Supplied as a complete kit (Partition plus 2 cover caps). Business Impact: Simplifies procurement and project planning with one-part sourcing and fewer accessory mismatches. Application: Streamlines job signaling for installers and procurement teams.
Get a Quick Quote for a Rittal 5301317
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301317?
Enquire Now
FAQs
The partition is designed for VX IT enclosures, specifically fitting a height of 2,450 mm and a depth of 1,200 mm. It slides between bayed enclosures and requires a 3 mm baying gap for installation, ensuring precise alignment between adjacent VX IT cabinets.
The partition is a one-piece insertable design that simply slides into position, eliminating the need for complex mounting brackets. This reduces setup time, minimizes tool requirements, and accelerates commissioning in multi-bay VX IT layouts.
Yes. It provides IP 20 protection with fitted cover caps and aligns with ETIM EC002525 and ECLASS 27189234 standards, supporting compliant procurement and consistent product data across systems.
Two Ø40 mm holes in the left and right corners allow cable and conduit routing, and the holes can be sealed with the included caps to maintain IP 20 protection in installed configurations.
By simplifying installation, improving cable management, and standardizing components, the partition reduces commissioning time, minimizes wiring errors, extends service life, and lowers maintenance costs in VX IT cabinet fleets.
