Rittal VX_IT 5301.321 Partition - ETIM EC002525
Part Number: 5301321
Quick Summary
Rittal VX_IT 5301.321 partition enables retrospective mounting and dismantling of bayed VX IT enclosures. Too often retrofit work disrupts seals, increases downtime, or requires disassembly of intact cabinets. It aligns with ETIM 9 EC002525 and ECLASS 8.0 27189234 classifications, supporting procurement and interoperability. The integrated sealing profile supports climate control or extinguisher gas applications, and the partition can be fitted from the outside before baying or from the inside after baying. This design reduces retrofit risk, preserves enclosure integrity, and minimizes service interruptions. For engineers and procurement teams, the solution offers predictable install timelines, standardized parts, and measurable cost savings through faster, safer retrofits.
Product Information
Extended Description

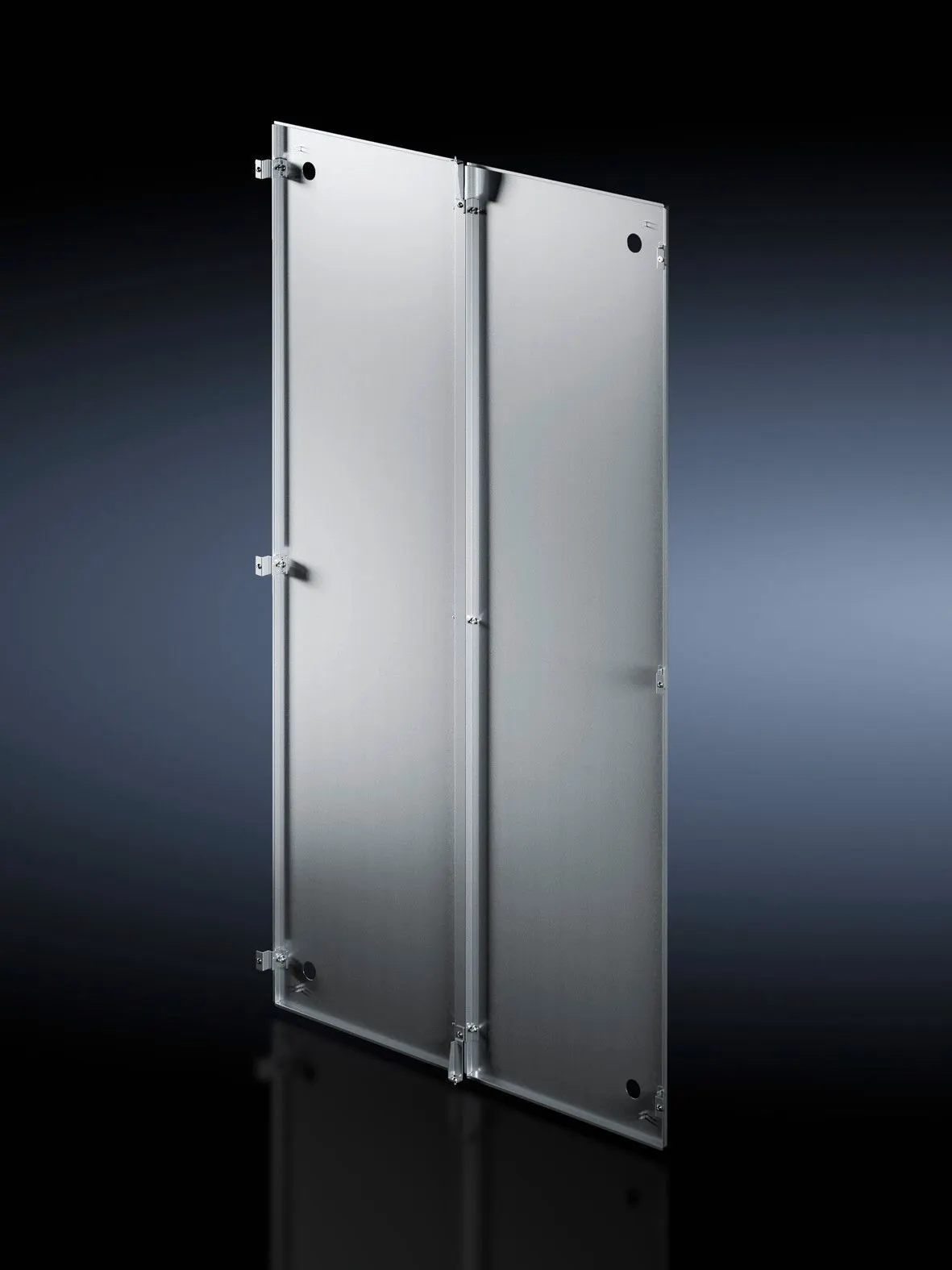

5301321 Rittal: Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,450 mm, for enclosure depth 1,200 mm.
Article number
VX_IT 5301.321
Product description
For retrospective installation/dismantling of bayed enclosures. The integrated sealing profile supports enclosure sealing for climate control or for applications with extinguisher gas. It may be fitted from the outside prior to baying the enclosure, or from the inside after baying the enclosure. As the partition is located inside the frame structure, it may be retrofitted at any time. There are no specific required baying distances between the enclosures.
Material
Sheet steel, zinc-plated
Supply includes
2 partitioning plates | 4 cover caps | Punched rail | Seal | Assembly parts
To fit
Height: = 2,450 mm | Depth: = 1,200 mm
Assembly instruction
Assembly/removal only supported for enclosures without interior installation.
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177954984
ETIM 9
EC002525
ECLASS 8.0
27189234
Product description
Partition, divided vertically, screw-fastened for VX IT, for retrospective mounting/dismantling of bayed enclosures. For enclosure height 2,450 mm, for enclosure depth 1,200 mm.
Vertical partition design provides a modular retrofit path for VX IT enclosures. It allows precise zoning inside bayed frames, so you can add compartments without moving adjacent bays. This approach reduces field labor and minimizes the risk of damaging existing seals or components. It also supports staged installation to fit downtime windows. Material choice matters in harsh facilities, and this partition uses sheet steel that is zinc-plated for corrosion resistance. The robust metal withstands vibration, dust, and impact typical of data centers and industrial environments, lowering maintenance costs. The finish is compatible with standard enclosure coatings, enabling consistent appearance and easier maintenance across a mixed fleet. Compatibility and fit are built into the kit: height 2,450 mm and depth 1,200 mm match VX IT bayed enclosures. The supply includes two partition plates, four cover caps, a punched rail, a seal, and mounting parts, simplifying procurement. You can install from the outside before baying or from the inside after baying, giving practical flexibility for tight schedules. Sealing performance is central to the benefit. The integrated sealing profile supports climate control and can accommodate extinguisher gas systems, helping maintain enclosure integrity during retrofit. Retrofitting without interior work minimizes contamination risk and preserves critical equipment. This reduces downtime and accelerates return to service in production environments. Operational guidance emphasizes safe, compliant retrofits. Assembly/removal is only supported for enclosures without interior installation, preventing improper modifications. Standardized parts, ETIM and ECLASS classifications, and clear documentation streamline procurement and audits. Overall, VX_IT 5301.321 delivers predictable installation timelines, lower risk, and a clear path to future expansions.
Get a Quick Quote for a Rittal 5301321
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301321?
Enquire Now
FAQs
Yes, the partition is designed for VX IT bayed enclosures with the specified fit: height 2,450 mm and depth 1,200 mm. While it provides a precise retrofit for those dimensions, verify enclosure configuration (bayed vs. standalone) and interior installation status before planning installation to avoid interference with existing components or mounting rails.
Key specs include Article VX_IT 5301.321, material sheet steel with zinc plating, and suitability for retrospective mounting. Each pack contains 1 partition kit with 2 partitioning plates, 4 cover caps, a punched rail, a seal, and installation parts. It supports climate control sealing and aligns with ETIM 9 EC002525 and ECLASS 8.0 27189234 for procurement.
The partition is ideal for retrofitting bayed VX IT enclosures during mid-life upgrades, enabling vertical zoning without dismantling entire cabinets. It supports sealing for climate control or extinguisher gas systems, improves retrofit timelines, reduces downtime, and simplifies future expansions by providing a modular, standards-aligned retrofit path.
Yes. Assembly/removal is supported only for enclosures without interior installation, to prevent improper modifications. The product carries standard classifications (ETIM 9, ECLASS 8.0) for procurement and audits, and the customs tariff and EAN help with compliance and traceability in regulated environments.
Retrofitting with this partition reduces downtime, minimizes field labor, and consolidates procurement into a single kit, lowering logistics complexity. The standardized components and alignment with ETIM/ECLASS classifications improve audit readiness and long-term interoperability, delivering faster project completion, predictable costs, and a lower total cost of ownership for VX IT deployment fleets.
