Rittal VX 5301.325 Stabiliser - 200 kg capacity
Part Number: 5301325
Quick Summary
Rittal VX 5301.325 stabiliser is a quick-retrofit accessory that stabilises VX IT enclosures, enabling safe access when installing or removing front-mounted components. It addresses the common pain point of enclosure tipping during maintenance or component withdrawal, especially in mobile or non-floor-fixed installations. The design leverages ETIM EC000721 and ECLASS 27182003 classifications, with a high-visibility, signal-red finish that improves safety compliance. By allowing in-situ retrofitting and removal, it delivers flexibility, reduces downtime, and supports modular expansion without permanent changes. Engineers benefit from quicker installation workflows, while procurement gains predictable lead times and easier lifecycle planning. Additionally, the product's compatibility with VX IT frames and with levelling feet or a base/plinth up to 200 mm high adds versatility across diverse facility layouts.
Product Information
Extended Description

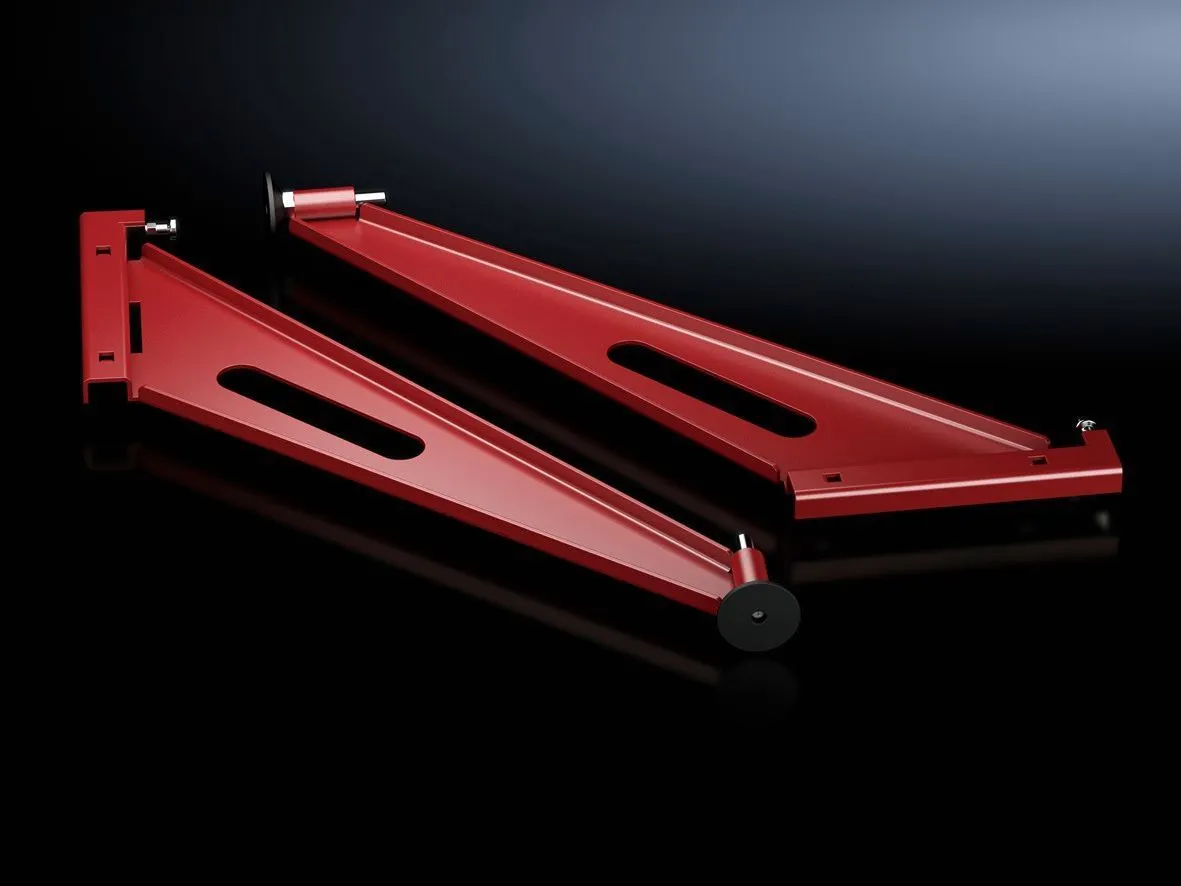

5301325 Rittal: Stabiliser for VX IT. The pull-out stabiliser is quickly and easily retrofitted to the lower enclosure frame of the racks and extended only when necessary.
Article number
VX 5301.325
Product description
If required, the optional stabiliser for the VX IT may be retrofitted in situ at any time. With the front door open, simply snap onto the vertical sections of the enclosure frame and level to match the enclosure height. This enlarges the enclosure’s footprint and makes it less likely to tip over when installed components are withdrawn from the enclosure or fitted in the front. It can be used as a mobile alternative if the enclosures cannot be screw-fastened to the floor or secured in an enclosure suite. After installation, simply remove the stabiliser again. The stabiliser may be used on the enclosure frame without bottom-mounting and in combination with levelling feet or a base/plinth up to 200 mm high. The striking signal-red spray-finish draws attention to this trip hazard.
Material
Sheet steel, spray finished in RAL 3001 (signal red)
Supply includes
2 levelling stabilisers with fast, tool-free installation
Load capacity
Max. extension weight: 200 kg, point of gravity 250 mm from the enclosure front
To fit
Enclosure type: VX IT
Packs of
2 pc(s).
Weight/pack
6.44 kg
PCF per pack (cradle-to-gate)
24.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952461
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
Stabiliser for VX IT. The pull-out stabiliser is quickly and easily retrofitted to the lower enclosure frame of the racks and extended only when necessary.
The VX IT stabiliser is designed for quick, tool-free retrofitting to the lower enclosure frame of VX IT racks, and it extends only when needed. This approach reduces downtime during component upgrades and rearrangements, improving rack uptime and operator safety. It addresses tipping risk during maintenance and component withdrawal, particularly in mobile or non-floor-fixed installations. The stabiliser leverages ETIM EC000721 and ECLASS 27182003 classifications, with a high-visibility signal-red finish that reinforces safety compliance. In-situ retrofitting and removal provide flexibility for modular expansion without permanent changes, supporting efficient lifecycle management. The system offers a maximum extension weight of 200 kg and a center of gravity 250 mm from the enclosure front, delivering stable access for heavier gear. This combination minimizes the need for additional floor anchors while maintaining performance. With two levelling stabilisers per pack and tool-free installation, balance and stability are ensured even on uneven floors. The protective, durable sheet steel construction finished in RAL 3001 (signal red) enhances visibility and safety in busy facilities. The 2-pack setup provides symmetric support, reducing wobble during component exchange and maintenance. Weight per pack is 6.44 kg, and the PCF of 24.5 kg CO2 eq (Cat B) highlights a measured sustainability footprint. The product is specifically designed to fit VX IT enclosures and is compatible with base/plinths up to 200 mm high, enabling versatile integration across varied facility layouts. Sustainability-conscious buyers will appreciate the transparent footprint and clear packaging of 2 pieces per pack.
Get a Quick Quote for a Rittal 5301325
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301325?
Enquire Now
FAQs
Yes. The VX 5301.325 stabiliser is designed for in-situ retrofitting onto the lower enclosure frame of VX IT racks, with a pull-out mechanism that extends only as needed. The installation is tool-free and quick, minimizing downtime during upgrades or maintenance.
The stabiliser supports a maximum extension weight of up to 200 kg, with the center of gravity positioned 250 mm from the enclosure front. This configuration stabilises front-access operations while maintaining manoeuvrability for heavier components.
Yes. The stabiliser is designed for mobile or floor-not-fastened installations, providing a stable platform without permanent floor anchoring. It can be used in conjunction with levelling feet or a base/plinth up to 200 mm high to suit varied facility layouts.
The product is classified under ETIM 9 EC000721 and ECLASS 8.0 27182003, aligning with common industry classification standards. While not a traditional safety certification, these classifications support procurement and maintenance documentation in compliant environments.
The stabiliser’s quick-retrofit design reduces maintenance downtime and extends enclosure usability by enabling easy reconfiguration. With two stabilisers per pack and tool-free installation, the upfront labor effort is reduced, delivering a faster return on investment through improved uptime and safer component handling.
