Rittal VX 5301.326 Levelling Foot - Internal Adjustment
Part Number: 5301326
Quick Summary
Rittal VX 5301.326 levelling foot provides precise enclosure leveling for VX IT enclosures. Floor irregularities can cause vibration, misalignment, and maintenance headaches that disrupt performance. The product aligns with ETIM EC000721 and ECLASS 27182003 data standards, improving procurement, interoperability, and part traceability. The levelling feet feature internal adjustment and a mounting bracket to offset the interior mounting position, enabling adjustment from within the enclosure. The design supports VX IT enclosure leveling, IT rack stability, and quick on-site adjustments, delivering efficiency and reduced maintenance costs. With four feet per kit and included mounting brackets, you gain scalable, reliable leveling across varied floor conditions. This translates to lower downtime and improved overall system reliability.
Product Information
Extended Description
5301326 Rittal: Levelling foot, M12, with internal adjustment, for VX IT, to compensate for height differences in the event of floor irregularities, including mounting bracket to offset the mounting position in the interior section of the enclosure, for convenient adjustment from within the enclosure using the multi-tooth drive integrated into the head of the levelling foot.
Article number
VX 5301.326
Product description
The mounting bracket is used to offset and secure the levelling foot beneath the enclosure frame in the interior section. In this way, the levelling foot is conveniently adjusted from the enclosure interior using the multi-tooth drive integrated into the levelling foot shaft.
Supply includes

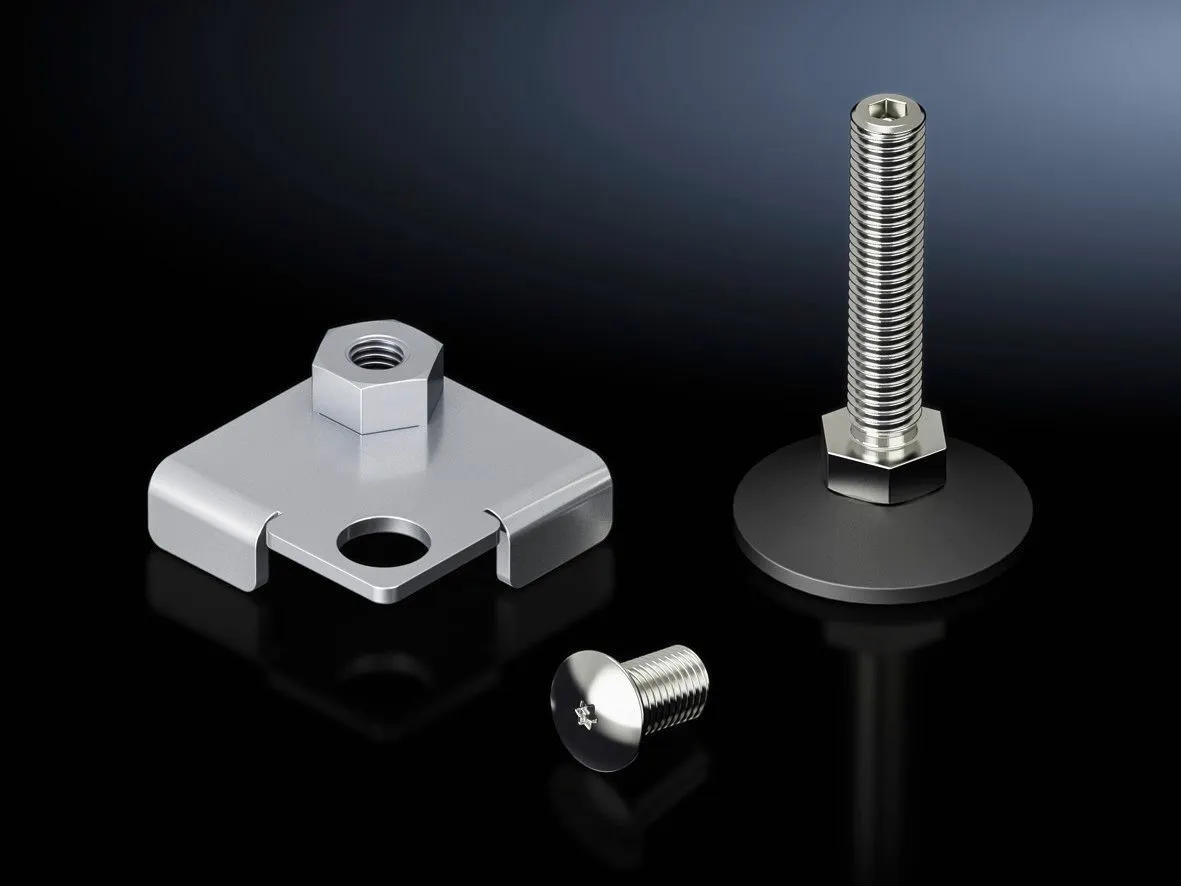

4 levelling feet, M12, with TX30 hex socket drive | 4 mounting brackets | Assembly parts
Load capacity
Max. admissible static load: 6,500 N per levelling foot
Levelling range
30 ‐ 80 mm
Packs of
4 pc(s).
Weight/pack
0.796 kg
Customs tariff number
73269098
EAN
4028177952478
ETIM 9
EC000721
ECLASS 8.0
27182003
Product description
Levelling foot, M12, with internal adjustment, for VX IT, to compensate for height differences in the event of floor irregularities, including mounting bracket to offset the mounting position in the interior section of the enclosure, for convenient adjustment from within the enclosure using the multi-tooth drive integrated into the head of the levelling foot.
The levelling foot uses internal adjustment to compensate for floor irregularities, enabling precise height control without external access. This feature translates to faster commissioning and reduced site work, especially in data center or industrial IT environments where cabinet alignment is critical for cable management and airflow efficiency. The multi-tooth drive at the foot head provides intuitive adjustment from inside the enclosure, which minimizes disruption to mounted equipment and protects interior components. Compatibility with VX IT enclosures ensures uniform interfaces and predictable installation workflows, enabling procurement teams to standardize hardware across projects. The 6,500 N static load per foot delivers robust support for heavy IT equipment, while a leveling range of 30–80 mm accommodates typical floor tolerances encountered in manufacturing and data center floors. The included mounting brackets offset the mounting position in the interior section, reducing installation complexity and enabling more secure, level configurations. The four-foot pack, with four brackets and assembly parts, offers a complete leveling solution that scales across larger cabinets and multi-bay enclosures. In practice, users report lower maintenance costs due to stable footing, reduced vibration transmission, and easier future adjustments without disassembly. The system also supports efficient upgrade paths, as the same mounting and adjustment method applies to related VX IT components and accessories, simplifying lifecycle management and spare parts planning.
Get a Quick Quote for a Rittal 5301326
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301326?
Enquire Now
FAQs
Install the four M12 levelling feet from the interior using the TX30 drive. Attach the supplied mounting brackets to offset the interior mounting position, then use the internal multi-tooth drive to level the enclosure within the 30–80 mm range. Ensure each foot is loaded within its 6,500 N capacity and verify overall cabinet stability before cable management.
Each levelling foot supports up to 6,500 N of static load. With four feet per kit, the system can sustain up to 26,000 N total, providing solid support for VX IT enclosures and ensuring vibration control on diverse floor conditions.
The package includes four levelling feet (M12) with TX30 hex socket drive, four mounting brackets, and assembly parts. This complete kit enables interior offset mounting and straightforward leveling within VX IT enclosures.
Designed for VX IT enclosures, these feet allow interior adjustment and mounting within the enclosure frame. The included brackets support offset positioning to facilitate adjustment from inside, aligning with VX IT configurations for consistent fit and performance.
The part aligns with ETIM EC000721 and ECLASS 27182003 data standards, facilitating consistent data modeling, easy integration with ERP/PLM systems, and accurate vendor cataloging. The product also carries the EAN 4028177952478 and article number VX 5301.326 for streamlined sourcing.
