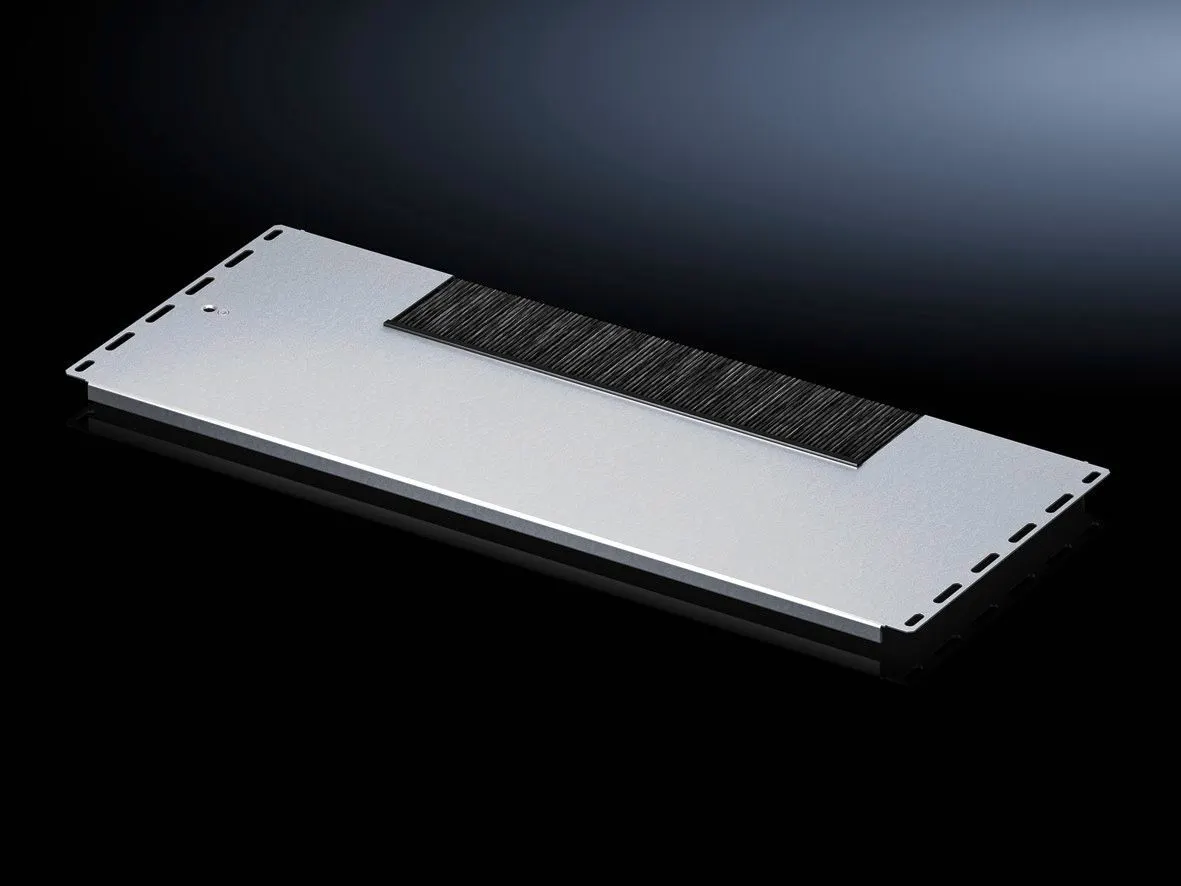

Rittal VX 5301.332 Gland Plate Module - Brush Strip, 600 mm
Part Number: 5301332
Quick Summary
The Rittal VX 5301.332 gland plate module with brush strip enables targeted cable entry from below for VX IT enclosures. It addresses common pain points in cabinet design, including sealing integrity, cable congestion, and retrofit complexity when adding bottom-entry glands. Built for industrial environments, the module uses a zinc-plated sheet steel base and a UL 94 HB plastic brush strip, delivering durable performance and safer cable management. While designed for VX IT enclosures with a 600 mm width, brush-strip gland plates are not suitable where IEC 60 529 protection categories apply. This solution supports refurbishment projects and maintenance goals, reducing downtime and enabling scalable, compliant cabling infrastructure for data centers and automation cabinets.
Product Information
Extended Description
5301332 Rittal: VX IT gland plate module with brush strip, for width 600 mm, W x D 600 x 237.5 mm, one-piece, sheet steel
Article number
VX 5301.332
Design
one-piece, with brush strip
Product description
For targeted cable entry from below.
Material
Module plate: Sheet steel | Brush strip: Plastic, UL 94 HB, halogen-free
Surface finish
Module plate: Zinc-plated
Supply includes
Assembly parts
Assembly instruction
Several gland module plates must be combined to seal the base completely in the VX IT
Note
Gland plate modules with brush strip not suitable for applications with a protection category to IEC 60 529
Dimensions
Depth: 237.5 mm
To fit
Enclosure type: VX IT | Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
1.34 kg
PCF per pack (cradle-to-gate)
5.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177950849
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX IT gland plate module with brush strip, for width 600 mm, W x D 600 x 237.5 mm, one-piece, sheet steel
One-piece gland plate module with integrated brush strip simplifies installation and reduces sealing gaps, delivering faster mounting and fewer retrofit risks in VX IT cabinets. This durable solution translates into lower commissioning time and improved enclosure integrity, especially in harsh industrial environments where seal reliability matters for uptime and compliance. The material mix—sheet steel module plate with a UL 94 HB brush strip and halogen-free plastic—provides robust mechanical protection and safer cable management, reducing fire risk and enabling long-term maintenance. With a 600 mm width fit for VX IT enclosures, you gain predictable compatibility across standard installations, minimizing custom fabrication and inventory variety. When multiple gland modules are required, the assembly instructions ensure a complete base seal, eliminating leakage paths and streamlining future upgrades. The per-pack weight of 1.34 kg and a cradle-to-gate PCF of 5.1 kg CO2 eq (Category B) support lifecycle decisions and sustainability reporting. These features collectively enhance efficiency, regulatory alignment, and the total cost of ownership for automation projects.
Get a Quick Quote for a Rittal 5301332
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301332?
Enquire Now
FAQs
The VX 5301.332 gland plate module is designed to fit VX IT enclosures with a 600 mm width. Its dimensions include a depth of 237.5 mm and a 1-piece, sheet-steel base, with an integrated brush strip to optimize bottom-entry cable management.
The module plate is made from sheet steel, and the brush strip is plastic rated UL 94 HB and halogen-free. The surface is zinc-plated, and the brush strip adds a flame-rated element to improve safety in electrical cabinets.
Brush-strip gland plates may not meet higher IEC 60529 protection categories. For installations requiring specific IP ratings, use multiple gland plates to seal the base completely as recommended by the installation guide and verify your enclosure specifications before deployment.
Each pack weighs 1.34 kg, with a cradle-to-gate PCF of 5.1 kg CO2 eq (Cat B). The unit aligns with standard packaging and can be factored into lifecycle analyses for procurement and environmental reporting.
Several gland module plates must be combined to seal the base completely in the VX IT system. Follow the assembly instructions for proper alignment, gasket coverage, and sealing continuity to avoid leakage paths and ensure consistent performance across installations.
