Rittal VX 5301.334 Gland Plate Module - Brush Strip
Part Number: 5301334
Quick Summary
Rittal VX 5301.334 gland plate module with brush strip enables targeted cable entry from below for VX IT enclosures. Many installations struggle to preserve a tight seal when retrofitting existing base modules with cables already in place. There is no explicit CE or SIL data listed; note that protection category to IEC 60 529 (IP ratings) may restrict use in IP-rated environments, while PCF Cat B and ETIM EC002620 classifications exist. This solution improves sealing performance and cable management, reduces climate-control losses, and, thanks to the two-piece design, simplifies retrofits and minimizes downtime in industrial automation projects.
Product Information
Extended Description

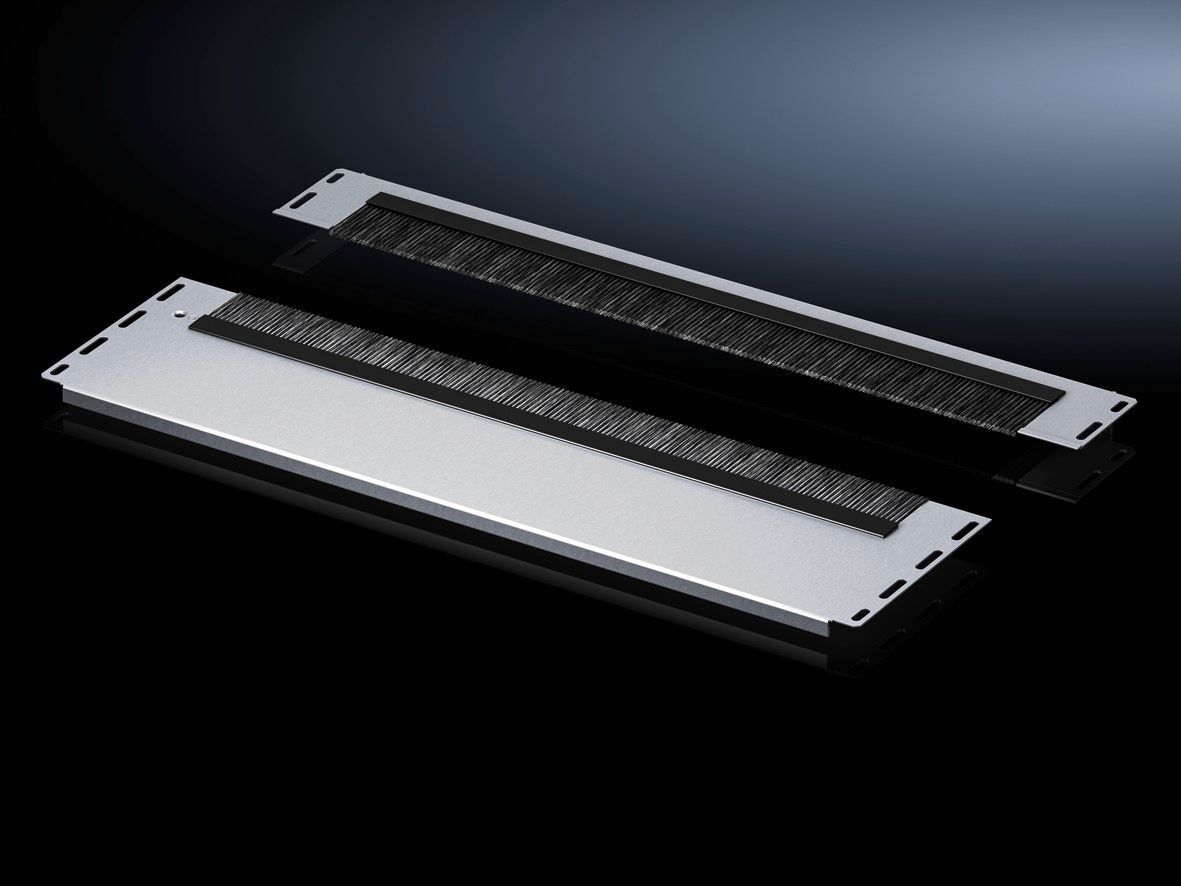

5301334 Rittal: VX IT gland plate module with brush strip, for width 600 mm, W x D 600 x 237.5 mm, two-piece, sheet steel
Article number
VX 5301.334
Design
two-piece, with brush strip
Product description
For targeted cable entry from below. With correct cable entry, special brush strips with alternating offset brushes provide a more effective seal from the environment to support climate control. The two-piece design even allows retrospective fitting of the base module with the cables already installed.
Material
Module plate: Sheet steel | Brush strip: Plastic, ULÂ 94Â HB, halogen-free
Surface finish
Module plate: Zinc-plated
Supply includes
2 module panel halves including brush strips, super-airtight | Assembly parts
Assembly instruction
Several gland module plates must be combined to seal the base completely in the VX IT
Note
Gland plate modules with brush strip not suitable for applications with a protection category to IEC 60 529
Dimensions
Depth:Â 237.5 mm
To fit
Enclosure type:Â VX IT | Width:Â = 600 mm
Packs of
1 pc(s).
Weight/pack
1.54 kg
PCF per pack (cradle-to-gate)
5.9Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177950863
ETIM 9
EC002620
ECLASS 8.0
27189261
Product description
VX IT gland plate module with brush strip, for width 600 mm, W x D 600 x 237.5 mm, two-piece, sheet steel
Feature: Brush-strip gland plate module enables precise cable entry from below, combining mechanical strength with an airtight seal to protect critical VX IT installations. Business impact: The offset brush arrangement minimizes ingress points and supports climate control efficiency, reducing cooling load and energy waste in busy automation zones. Application: Ideal for VX IT enclosures in industrial automation where base-entry cables are common. Feature: Two-piece construction allows retrospective fitting, enabling base-module sealing even after cabling has been installed. Business impact: Retrofit projects become faster and less costly because cables do not need to be removed, reducing labour and risk. Application: Suitable for line expansions or facility upgrades with space constraints. Feature: Sheet steel module plate with zinc-plated finish provides durable mechanical performance in harsh environments. Business impact: Corrosion resistance extends service life and lowers maintenance costs. Application: Fits VX IT enclosure width of 600 mm and depth of 237.5 mm for straightforward integration. Feature: Supplied as two module halves with assembly parts, simplifying procurement and field assembly. Business impact: Reduces vendor management and project lead times, enabling faster commissioning. Application: Supports immediate sealing when combining gland plates for a super-airtight base. Feature: Material specs include UL 94 HB plastic brush strip and halogen-free composition, aligning with safety and environmental standards. Business impact: Compliance with safety policies and reduced hazard risk in fault scenarios. Application: Appropriate for facilities with strict safety requirements and for projects evaluating PCF Cat B impact. Feature: Clear dimensional and compatibility fit with 600 mm width and 237.5 mm depth; zinc-plated plate adds robust finish. Business impact: Streamlines installation and enhances long-term enclosure integrity. Application: Ideal for VX IT installations in automation lines where space and seal integrity are critical.
Get a Quick Quote for a Rittal 5301334
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301334?
Enquire Now
FAQs
The VX 5301.334 uses a two-piece gland plate with brush strips, allowing retrospective installation of the base module. Installers align the halves around the cables already in place, secure with assembly parts, and achieve an airtight seal that maintains climate control and enclosure integrity.
The module employs alternating offset brushes within the brush strip to minimize gaps and reliably seal multiple entry points. This design reduces ingress paths, improves environmental protection, and supports consistent enclosure climate control during operation.
Yes. The two-piece design is specifically intended for retrospective fitting, enabling sealing of the base module without removing installed cables. This reduces downtime and keeps existing cabling intact while upgrading enclosure integrity.
The data notes a protection category consideration per IEC 60 529 (IP ratings) and does not provide explicit CE or SIL labeling. Users should plan installations with IP-rated constraints in mind and verify site-specific compliance requirements before deployment.
Key specs include 600 mm width, 237.5 mm depth, and a weight of 1.54 kg per pack, with two module halves and brush strips. Materials are sheet steel for the plate and UL 94 HB plastic for the brush strip, which is halogen-free. The product also carries PCF Cat B and ETIM EC002620 classifications for data governance.
