Rittal VX 5301.348 Gland Plate Module - VX IT 800 mm
Part Number: 5301348
Quick Summary
The Rittal VX 5301.348 gland plate module is a cable-entry solution for VX IT enclosures designed to adapt openings and seal entries with dual-sided brush strips. This addresses the common challenge of sealing and routing cables cleanly when upgrading or retrofitting panels in tight spaces. Notable standards alignment includes UL 94 HB flame rating for the brush strips and considerations around IP protection per IEC 60529, helping customers plan for compliant installations. While this datasheet highlights standard VX IT compatibility, the product also leverages ETIM and ECLASS classifications to simplify procurement and system integration. For buyers prioritizing sustainability, the module’s weight and cradle-to-gate PCF values support responsible lifecycle planning and cost-effective installation workflows.
Product Information
Extended Description

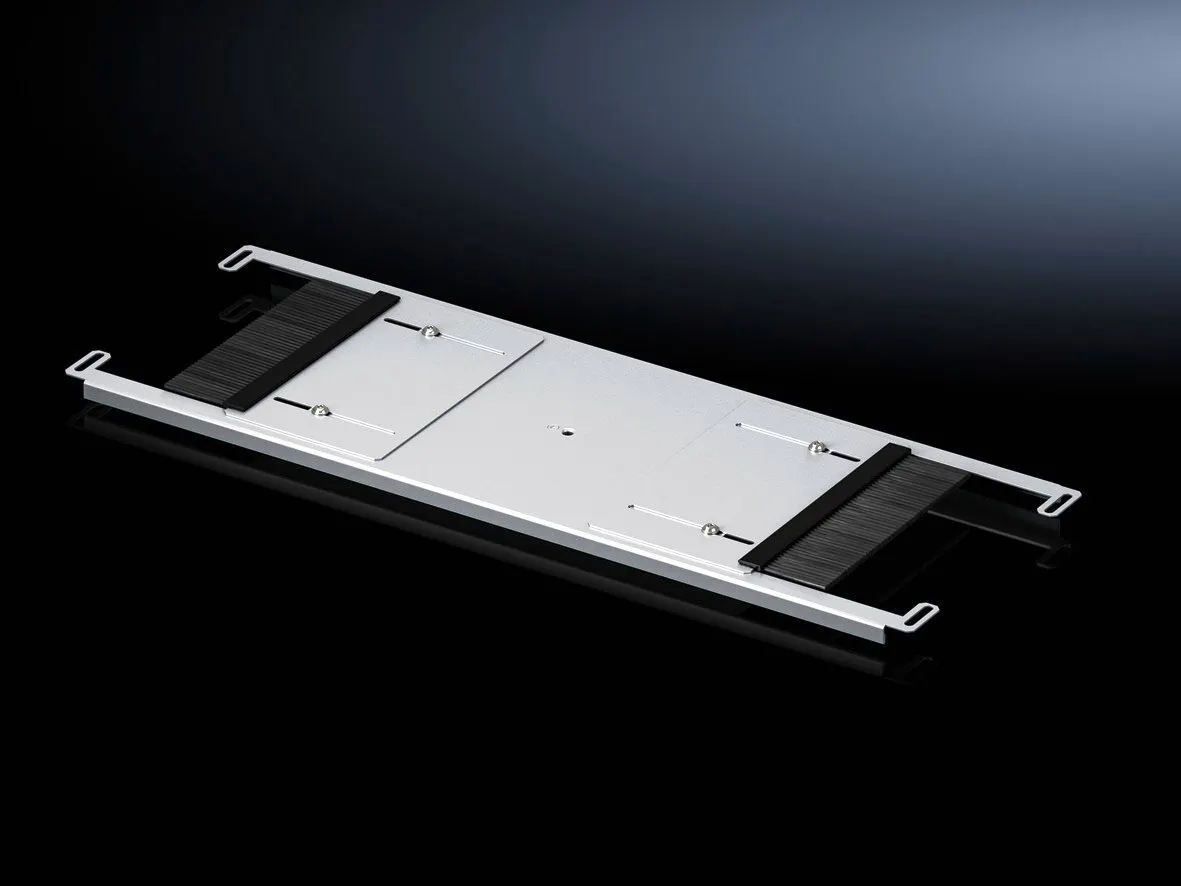

5301348 Rittal: Gland plate module for cable entry, for VX IT, adjustable opening and brush strips on each side, for enclosure width 800 mm, module: sheet steel, zinc-plated
Article number
VX 5301.348
Design
Version for cable entry with rubber cable clamp strip at the sides:
Product description
With adjustable opening and brush strips on both sides. The version which is open at the side even allows the base plate module to be retro-fitted with the cables already installed.
Material
Module plate: Sheet steel | Brush strip: Plastic, ULÂ 94Â HB, halogen-free
Surface finish
Module plate: Zinc-plated
Supply includes
Assembly parts
Assembly instruction
Several gland module plates must be combined to seal the base completely in the VX IT
Note
Gland plate modules with brush strip not suitable for applications with a protection category to IEC 60 529
To fit
Enclosure type:Â VX IT | Width:Â = 800 mm
Packs of
1 pc(s).
Weight/pack
2.36 kg
PCF per pack (cradle-to-gate)
9Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177951006
ETIM 7.0
EC002620
ECLASS 8.0
27189261
Product description
Gland plate module for cable entry, for VX IT, adjustable opening and brush strips on each side, for enclosure width 800 mm, module: sheet steel, zinc-plated
Feature → Business Impact → Application: Adjustable opening with brush strips on both sides enables flexible cable entry while maintaining a tight seal, reducing ingress paths and improving enclosure integrity. This translates to faster cable management during assembly and retrofit projects, especially in VX IT 800 mm enclosures where space is at a premium. Application: Ideal for cable-entry points in VX IT systems, ensuring orderly wiring with minimal gaps and reduced maintenance access time. Feature → Business Impact → Application: Open-side version allows retrofitting the base plate module with cables already installed, significantly lowering on-site labor and downtime during upgrades. Application: Useful in retrofit scenarios where existing cabling must remain intact while adding new entry points. Feature → Business Impact → Application: Module plate made of sheet steel and zinc-plated surface offers corrosion resistance for harsh environments, while brush strips use UL 94 HB-rated plastic that is halogen-free, supporting safety and compliance. Application: Suitable for industrial environments requiring durable, flame-rated sealing components. Feature → Business Impact → Application: Supply includes assembly parts and clear installation instructions, enabling faster, more predictable deployment with VX IT enclosures. Application: Streamlines purchasing and reduces the risk of missing components during installation. Feature → Business Impact → Application: Weight per pack (2.36 kg) and PCF 9 kg CO2 eq (Cat B) support lower transport emissions and easier handling, contributing to sustainable project totals. Application: Beneficial for projects with CO2 footprint targets and strict on-site handling constraints. Note: Brush-strip versions are not suitable for applications with IEC 60529 protection categories, so customers must verify IP requirements before selection. Application: Ensures correct application to avoid non-compliant installations. Compatibility: Fits VX IT enclosure width 800 mm; contains assembly parts to facilitate seamless integration with existing VX IT systems. Application: Aligns with standard VX IT configurations and simplifies procurement through ETIM EC002620 and ECLASS 27189261 mappings.
Get a Quick Quote for a Rittal 5301348
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301348?
Enquire Now
FAQs
The gland plate module is designed specifically for VX IT with an 800 mm width. It ships with assembly parts and requires combining gland plates per VX IT installation guidelines to seal the base completely, ensuring a clean, gasketed entry for cables.
The module plate is sheet steel and zinc-plated for corrosion resistance, while the brush strips are plastic meeting UL 94 HB ratings and are halogen-free, supporting fire safety and environmental requirements in typical industrial applications.
A note in the data indicates brush-strip variants are not suitable for applications with protection categories defined by IEC 60529. Users should verify IP requirements for their enclosure and select the appropriate gland plate configuration to maintain the desired protection level.
Beyond part specifications, the VX 5301.348 is associated with ETIM 7.0 EC002620 and ECLASS 8.0 27189261 classifications, aiding consistent procurement and cataloging across ERP systems.
Thanks to adjustable openings, dual-sided brush strips, and side-open retrofitting capability, the module reduces wiring misalignment and post-install adjustments. Its 2.36 kg per-pack weight and 9 kg CO2 eq PCF support lower handling costs and a smaller environmental footprint over the product life cycle.
