Rittal VX 5301.516 Castor Module - 15 kN Static Load
Part Number: 5301516
Quick Summary
Rittal VX 5301.516 Castor Module provides effortless movement for configured enclosures at the point of use. Moving fully configured cabinets without a purpose-built transport solution can strain mounting points, disrupt production, and risk damage. This castor module aligns with ETIM 9 EC002621 and ECLASS 8.0 27189262 standards, helping procurement and system integration; ensure regional CE conformity where required. By mounting directly on the enclosure base frame, it improves maneuverability on flat ground, indoors, and around tight spaces, delivering reliability and uptime. The solution supports VX and VX IT enclosures and offers a practical upgrade path for mobility-focused facilities.
Product Information
Extended Description

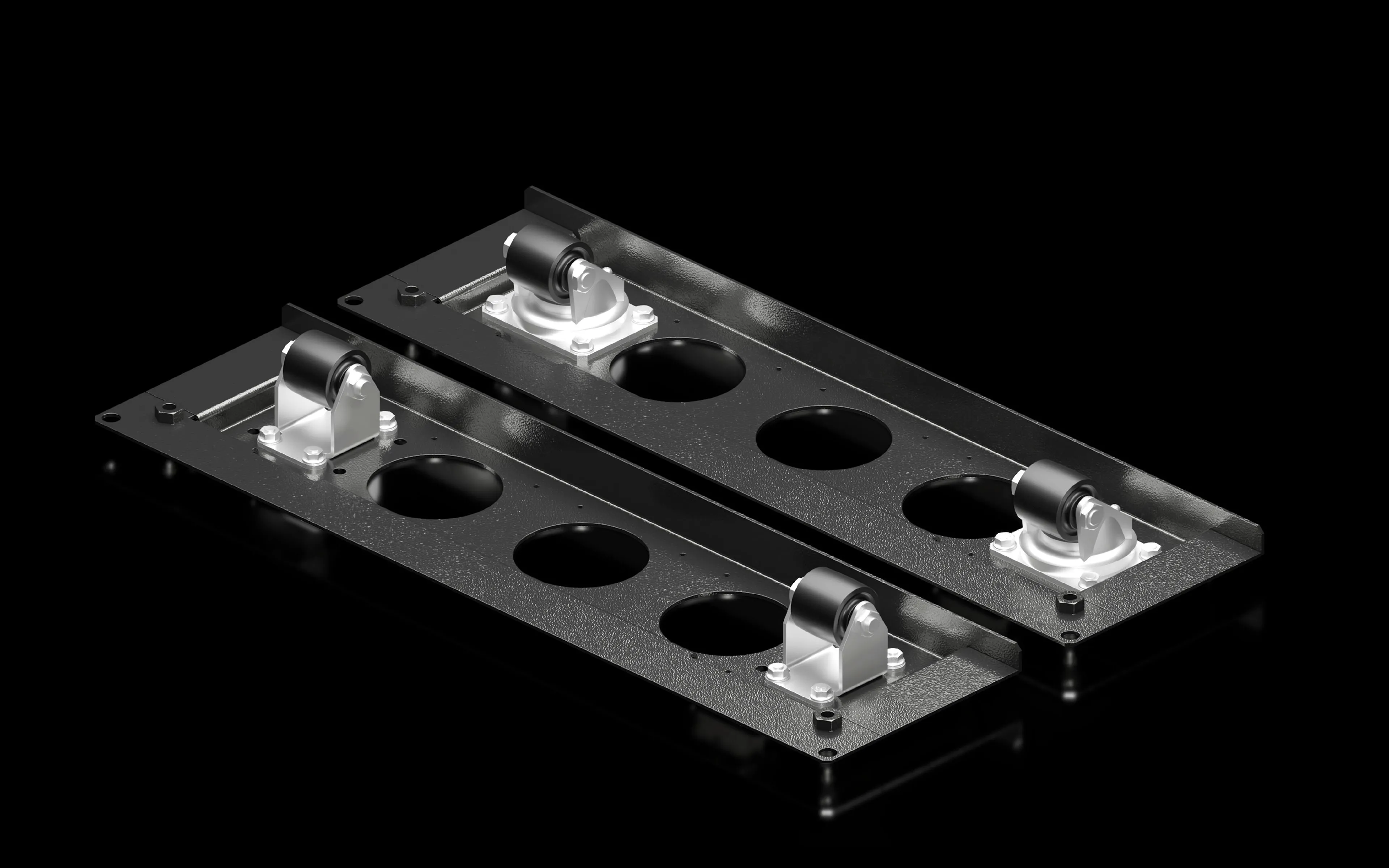

5301516 Rittal: Castor module for VX IT, for W: 600 mm, for easy movement directly at the point of use, for mounting directly on the enclosure.
Article number
VX 5301.516
Product description
For mobile use even with preconfigured enclosures. The castor module is screw-fastened to the structure directly underneath the base frame and is suitable for transporting configured enclosures on flat ground and inside buildings.
Supply includes
1 transport module with 2 castors | 1 transport module with 2 castors, fixed | Assembly parts
Dimensions
Width: 556 mm | Height: 79 mm | Depth: 203 mm
Assembly instruction
The base area must be open at the mounting points
To fit
Enclosure type: VX: = 600 mm | Enclosure type: VX IT
Load capacity
Max. admissible load: Static 15,000 N
Note
The maximum admissible load capacity (dynamic) of 10,000 N refers to rolling over flat ground.
Packs of
1 pc(s).
Weight/pack
10.3 kg
Customs tariff number
83024900
EAN
4028177952492
ETIM 9
EC002621
ECLASS 8.0
27189262
Product description
Castor module for VX IT, for W: 600 mm, for easy movement directly at the point of use, for mounting directly on the enclosure.
Feature → Business Impact → Application: The VX 5301.516 provides a transport module with two castors and two fixed points, designed to screw directly beneath the base frame. This enables stable, low-effort movement of configured enclosures, reducing manual handling and downtime during plant reconfigurations. Application: Ideal for warehouses, service bays, and production lines where rapid relocation of VX or VX IT enclosures is required. Feature → Business Impact → Application: The castor module offers a high static load capacity of 15,000 N with a dynamic limit of 10,000 N on flat ground, minimizing tipping risk and protecting sensitive mounting points. Application: Safe transport of heavy, preconfigured enclosures across factory floors and loading areas. Feature → Business Impact → Application: Mounting is screw-fastened under the base frame with an open mounting area requirement, ensuring secure attachment with minimal downtime. Application: Retrofit or new installations on VX and VX IT frames where quick deployment is essential. Feature → Business Impact → Application: Compact dimensions (556 mm width, 79 mm height, 203 mm depth) and a per-pack weight of 10.3 kg enable easy integration into existing base footprints. Application: Space-constrained installations and rapid reconfiguration in clean rooms or production lines. Feature → Business Impact → Application: Compatibility with VX 600 mm and VX IT enclosure types reduces the need for additional adapters or tools, accelerating installation. Application: Global rollouts and multi-site deployments where standardization lowers procurement complexity.
Get a Quick Quote for a Rittal 5301516
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301516?
Enquire Now
FAQs
Install by attaching the castor module screws directly to the enclosure base frame at the mounting points. Ensure the base area remains open as required by the assembly instruction, then verify the castors and fixings are secure before moving the enclosure. This minimizes rework and preserves mounting integrity.
The module supports a static admissible load of up to 15,000 N and a dynamic limit of 10,000 N on flat ground. This provides robust handling for fully configured VX or VX IT enclosures while minimizing deformation or tipping risk during transport on level surfaces.
Yes. The design targets use at the point of use in factories, warehouses, and service areas, enabling quick relocation of preconfigured enclosures without disassembly, reducing downtime and ergonomic strain for personnel.
The product aligns with ETIM 9 EC002621 and ECLASS 8.0 27189262 classifications, supporting procurement and system integration. Regional CE conformity should be confirmed according to local regulations where the product is deployed.
Regular inspection of mounting points and castor condition is advised. Check for secure screws, inspect wheel integrity, and verify the open-base mounting area remains unobstructed. Routine checks help maintain mobility, safety, and uptime across production environments.
