Rittal VX 5301.518 Castor Module - 15 kN Static Load
Part Number: 5301518
Quick Summary
Rittal VX 5301.518 Castor Module enables mobile movement of VX IT enclosures right at the point of use. When fully configured enclosures must be relocated, maneuvering them without disassembly can cause downtime and risk of damage. This accessory aligns with industry standards such as CE-compliance considerations and IP-rated enclosure practices, supporting safe, compliant mobility. By delivering a compact, mountable mobility solution, it reduces handling effort and downtime while preserving enclosure integrity, helping you streamline onsite logistics, upgrade workflow efficiency, and protect asset value in busy production environments.
Product Information
Extended Description

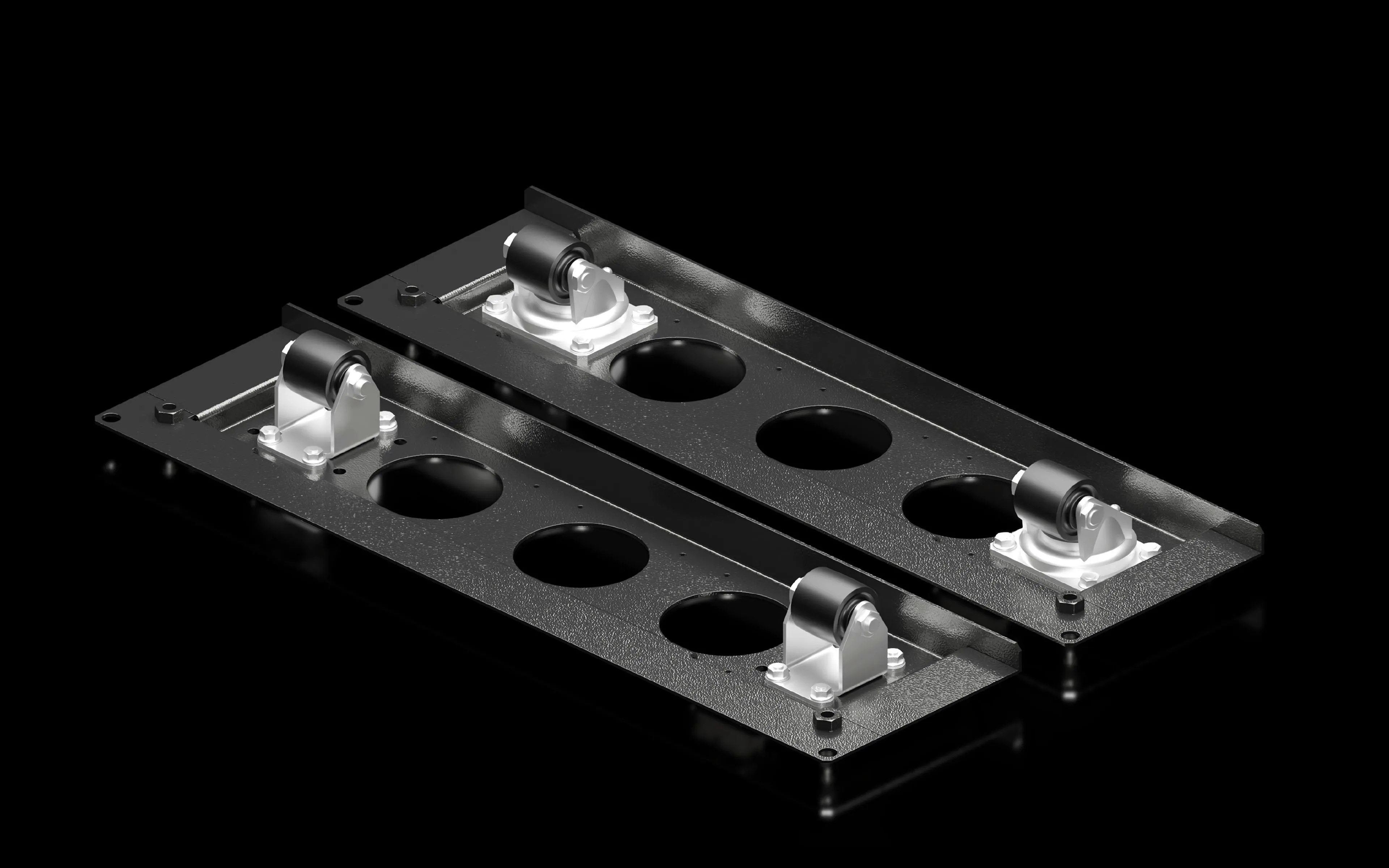

5301518 Rittal: Castor module for VX IT, for W: 800 mm, for easy movement directly at the point of use, for mounting directly on the enclosure.
Article number
VX 5301.518
Product description
For mobile use even with preconfigured enclosures. The castor module is screw-fastened to the structure directly underneath the base frame and is suitable for transporting configured enclosures on flat ground and inside buildings.
Supply includes
1 transport module with 2 castors | 1 transport module with 2 castors, fixed | Assembly parts
Dimensions
Width: 756 mm | Height: 203 mm | Depth: 79 mm
Assembly instruction
The base area must be open at the mounting points
To fit
Enclosure type: VX: = 800 mm | Enclosure type: VX IT
Load capacity
Max. admissible load: Static 15,000 N
Note
The maximum admissible load capacity (dynamic) of 10,000 N refers to rolling over flat ground.
Packs of
1 pc(s).
Weight/pack
12.12 kg
Customs tariff number
94039910
EAN
4028177952515
ETIM 9
EC002621
ECLASS 8.0
27189262
Product description
Castor module for VX IT, for W: 800 mm, for easy movement directly at the point of use, for mounting directly on the enclosure.
Feature: Mounting directly underneath the base frame enables a clean, stable interface. Business Impact: Preserves base-frame integrity while simplifying retrofits, reducing modification costs. Application: Ideal for VX IT systems where mobility is required without altering enclosure design. Feature: High static load capacity supports large configured enclosures. Business Impact: Minimizes risk of tipping or structural stress during moves, improving safety and compliance. Application: Suitable for factory floors and loading zones where movement of loaded VX enclosures occurs. Feature: Dual castor configuration with optional fixed positioning provides flexible maneuverability. Business Impact: Enables precise steering and secure parking without disassembly. Application: Useful in warehouses and service halls with tight turning radii. Feature: Compact footprint with defined dimensions (756 mm × 203 mm × 79 mm). Business Impact: Fits under base frames without interference, saving space and simplifying transport. Application: Works with VX 800 mm and VX IT enclosures. Feature: Clear installation guidance and packaging (1 pc per pack). Business Impact: Reduces setup time and inventory planning, lowering total cost of ownership. Application: Quick provisioning in multi-unit installations.
Get a Quick Quote for a Rittal 5301518
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301518?
Enquire Now
FAQs
Installation is designed to be straightforward: screw the castor module directly underneath the base frame, ensuring the base area is open at mounting points as specified. Confirm compatibility with VX 800 mm layouts before mounting. Use the included assembly parts and verify the package contents match the model VX 5301.518 configuration.
The castor module supports a static load up to 15,000 N, which enables safe transport of fully configured VX enclosures on flat ground. Dynamic load is rated at 10,000 N for rolling conditions. This combination reduces risk of tipping and protects enclosure components during relocation in facility environments.
Yes. The castor module is designed to fit VX enclosures with an 800 mm width, including VX IT variants. Compatibility is confirmed by the specification 'To fit: Enclosure type VX: = 800 mm | Enclosure type VX IT', ensuring secure mounting and uninterrupted mobility for configured systems.
The VX 5301.518 accessory aligns with industry expectations for CE-marked systems and standard enclosure practices. While the product data highlights ETIM and ECLASS classifications, confirm your regulatory requirements locally, especially where SIL, CE, or IP-rated compliance is mandated for your installation and facility.
Using the castor module reduces handling, travel time, and potential damage to enclosures, delivering faster relocation workflows and lower downtime costs. Routine inspection of mounting points and castor components is recommended to maintain mobility performance and prolong service life, contributing to a favorable total cost of ownership in warehouse and production settings.
