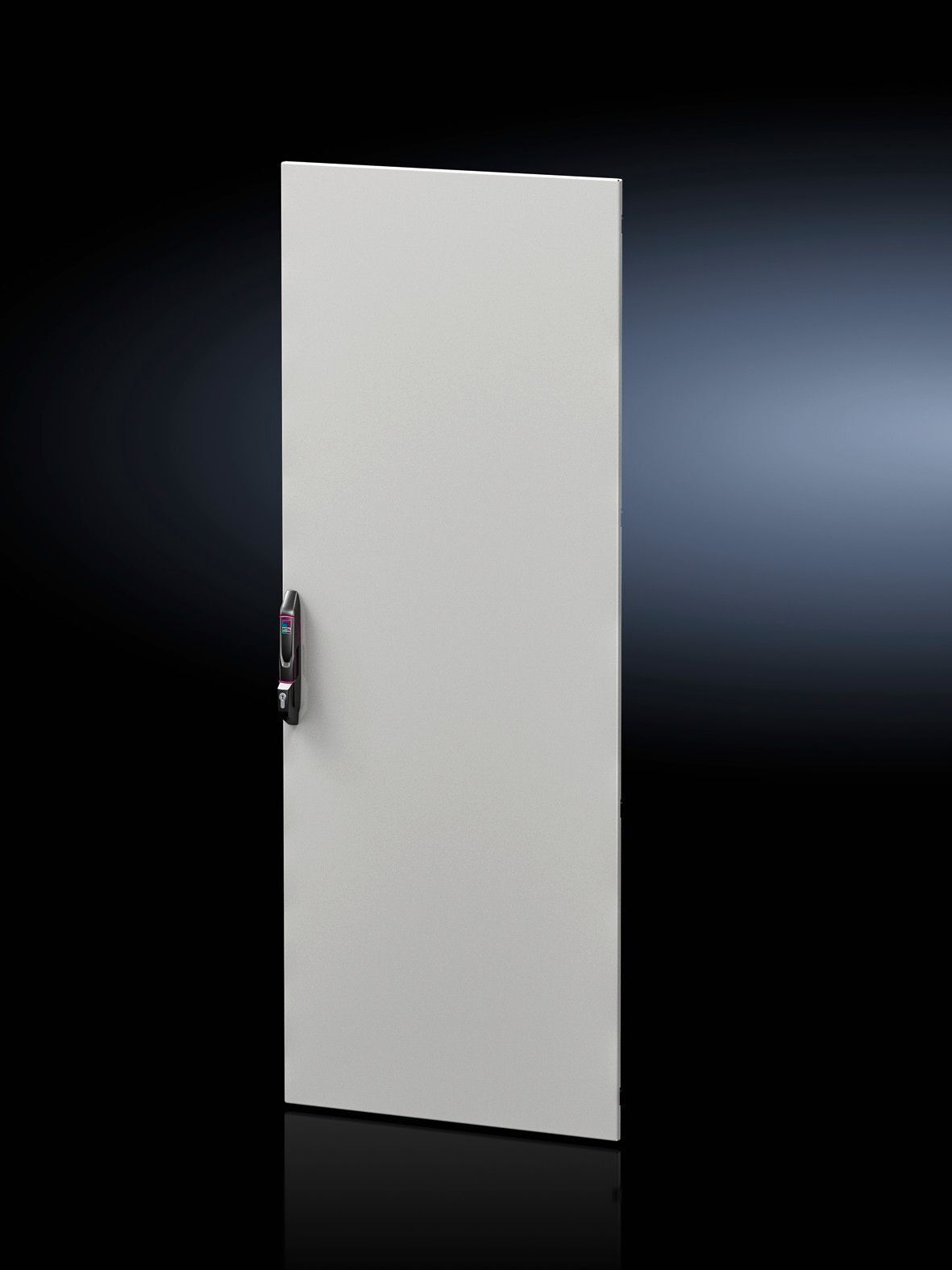

Rittal 5301542 Sheet Steel Door - VX IT 800x2200 IP55
Part Number: 5301542
Quick Summary
Rittal 5301542 Sheet Steel Door is designed to replace existing VX IT enclosure doors in industrial cabinets. Engineers often face retrofit downtime when replacing doors that must preserve IP protection and precise alignment. It delivers IP 55 protection and precise door alignment, supporting safe, compliant operation. Designed for VX IT enclosures with an 800 mm width and 2,200 mm height, it integrates with standard hardware and fasteners. This product leverages spray-finished sheet steel for durable service in harsh environments. In addition, the supplied components include a comfort handle, 4 x 130° hinges, and assembly parts to streamline installation. With ETIM and ECLASS alignment, procurement systems can map, compare, and source consistently across your industrial portfolio.
Product Information
Extended Description
5301542 Rittal: Sheet steel door, one-piece, solid for VX IT, to replace existing doors. For enclosure width 800 mm, for enclosure height 2,200 mm, sheet steel, spray-finished
Article number
DK 5301.542
Product description
To replace existing doors.
Material
Sheet steel
Surface finish
Spray-finished
Colour
Door: RAL 7035 | Comfort handle VX: RAL 9005
Supply includes
Door with comfort handle for semi-cylinders with security lock 3524 E | 4 x 130° hinges, inside | Assembly parts
Assembly instruction
For a door opening angle of 180° when baying, a 180° baying hinge is required
Note
Door opening angle for stand-alone siting: max. 165°
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: VX IT | Width: = 800 mm | Height: = 2,200 mm
Packs of
1 pc(s).
Weight/pack
35.4 kg
PCF per pack (cradle-to-gate)
134.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177955097
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
Sheet steel door, one-piece, solid for VX IT, to replace existing doors. For enclosure width 800 mm, for enclosure height 2,200 mm, sheet steel, spray-finished
IP 55 protection on a one-piece sheet steel door provides reliable ingress control for VX IT enclosures. This reduces dust and moisture ingress that can shorten electronics life and trigger unplanned downtime, translating into lower maintenance costs and higher line uptime. The replacement door is designed for retrofits, allowing technicians to swap without extensive reconfiguration, minimizing commissioning time. Spray-finished sheet steel offers a durable, uniform finish that resists corrosion and wear in harsh factory environments. The business impact is a lower repainting cycle and a consistent appearance across cabinet rows, supporting easier asset management and reduced total cost of ownership. The door is well suited for manufacturing floors with frequent washdowns and chemical exposure, where long service life and predictable performance matter. Comfort handle VX and four 130° hinges ensure smooth, secure operation. The business impact is predictable door swing, reduced risk of misalignment, and easier maintenance. For bayed installations, a 180° baying hinge is required to achieve full 180° opening, ensuring full accessibility during service. Fit and compatibility are central advantages: the DK 5301.542 door is sized for VX IT enclosures at width 800 mm and height 2,200 mm, with matching color scheme to maintain a cohesive appearance. The enclosure interface uses standard hardware and mounting practices, simplifying procurement and installation for plant-wide rollouts. Environmental and logistical considerations matter, too. The door weighs 35.4 kg per pack and carries a cradle-to-gate PCF of 134.9 kg CO2 eq (Cat B), supporting sustainability reporting. The included components reduce lead times and ensure your team can complete replacements in a single site visit. Supply includes: door with comfort handle for semi-cylinders with security lock 3524 E, four 130° hinges inside, and necessary assembly parts. This complete package minimizes additional orders, avoids missing hardware, and speeds up installation in multi-enclosure projects.
Get a Quick Quote for a Rittal 5301542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301542?
Enquire Now
FAQs
To install the door, first verify the VX IT enclosure width and height (800 mm × 2,200 mm) match the application. Use the supplied assembly parts and four 130° hinges for proper alignment. For bayed installations, use a 180° baying hinge to achieve a full 180° opening, then attach the comfort handle and security lock as shown in the installation guide.
Key specifications include sheet steel material, IP55 protection, and a spray-finished surface. The door is sized for VX IT enclosures at 800 mm width and 2,200 mm height, with a matching colour scheme (door in RAL 7035; Comfort handle VX in RAL 9005). It weighs 35.4 kg per pack and is supplied as a complete unit with hinges, mounting parts, and a comfort handle.
Yes. The 5301542 is designed for retrofits on VX IT enclosures and matches the standard 800 mm by 2,200 mm opening. The kit includes 4 x 130° hinges and a comfort handle to support quick installation, while the 180° baying hinge option enables full accessibility when bayed installations are required.
Primary standards include IP 55 ingress protection under IEC 60 529, plus ETIM 9 EC000747 and ECLASS 8.0 27182204 classifications that ensure interoperability with procurement systems and component libraries. The product aligns with VX IT enclosure interfaces and standard mounting practices; CE conformity is not specified in the data sheet, but typical enclosure safety expectations are upheld.
Replacing doors with the 5301542 reduces downtime during swaps and maintains enclosure integrity, limiting outage-related costs. At 35.4 kg per pack with included assembly parts, installation is faster and logistics planning is simplified. Combined with IP55 protection and ETIM/ECLASS compliance, the solution supports lower warranty and service costs while improving reliability across multiple sites.
