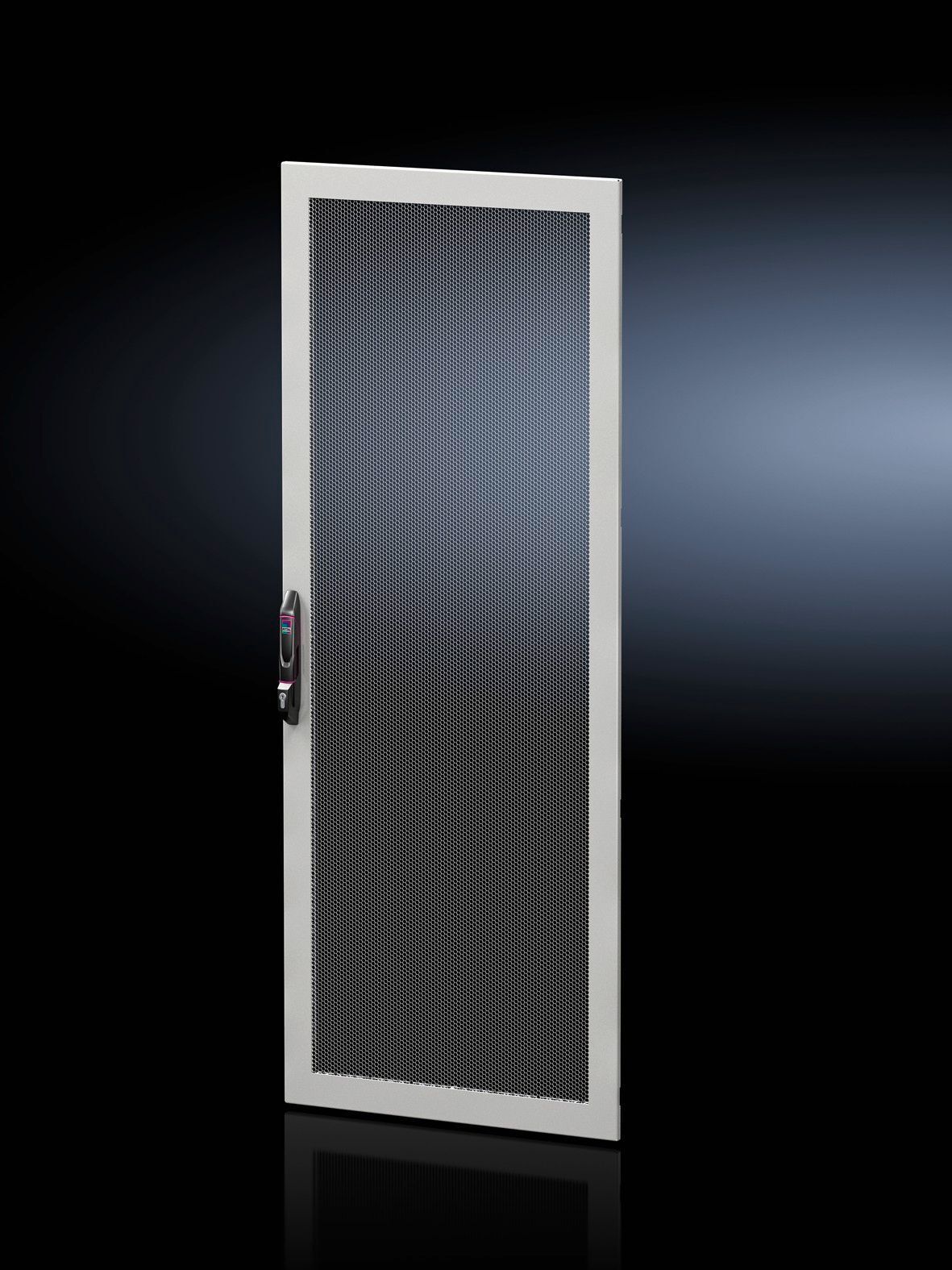

Rittal 5301561 Sheet Steel Door - 85% Ventilated for VX IT
Part Number: 5301561
Quick Summary
Rittal 5301561 Sheet Steel Door provides a ventilated replacement for VX IT enclosures, delivering reliable airflow and cabinet access in industrial environments. The goal is to reduce heat buildup and simplify maintenance without compromising security. This door aligns with ETIM EC000747 and ECLASS 27182204 standards, supporting seamless parts compatibility and data-driven procurement. By integrating the 5301561 into your VX IT ecosystem, maintenance teams gain faster serviceability, while procurement benefits from a clearly defined, decoupled component with environmental credentials such as the 50.3 kg CO2 eq PCF figure. In short, it adds a robust, visually consistent enclosure door option that harmonizes with your broader automation infrastructure.
Product Information
Extended Description
5301561 Rittal: Sheet steel door, one-piece, ventilated for VX IT, to replace existing doors. The vented surface area is approx. 85% perforated. For enclosure width 600 mm, for enclosure height 2,000 mm
Article number
DK 5301.561
Product description
To replace existing doors. The vented surface area is approx. 85% perforated.
Material
Sheet steel
Surface finish
Spray-finished
Colour
Door: RAL 7035 | Comfort handle VX: RAL 9005
Supply includes
Door with comfort handle for semi-cylinders with security lock 3524 E | 3 x 130° hinges, fitted on the inside | Assembly parts
Assembly instruction
For a door opening angle of 180° when baying, a 180° baying hinge is required
Note
Door opening angle for stand-alone siting: max. 165°
To fit
Enclosure type: VX IT | Width: = 600 mm | Height: = 2,000 mm
Packs of
1 pc(s).
Weight/pack
13.2 kg
PCF per pack (cradle-to-gate)
50.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
EAN
4028177955103
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
Sheet steel door, one-piece, ventilated for VX IT, to replace existing doors. The vented surface area is approx. 85% perforated. For enclosure width 600 mm, for enclosure height 2,000 mm
Feature: Ventilated 85% perforated surface. Business Impact: Improves enclosure airflow, reduces internal hotspots, and supports cooling strategies for IT and control cabinets. Application: Ideal for VX IT enclosures where ventilation and thermal management are priorities. The benefit translates to lower cooling costs and enhanced reliability in factory floors. Feature: Sheet steel construction with spray-finished surface. Business Impact: Combines rigidity and durable finish for long service life in harsh environments. Application: Suitable for white- or light-gray VX IT rooms where corrosion resistance and aesthetic consistency matter. Feature: Color-certified finish (Door: RAL 7035; Comfort handle VX: RAL 9005). Business Impact: Ensures visual uniformity across enclosures and simplifies maintenance planning. Application: Industrial data centers, machine rooms, and control cabinets. Feature: Supplied with comfort handle, security lock 3524 E, and 3 x 130° hinges. Business Impact: Streamlined installation and secure access out-of-the-box, reducing field labor and risk. Application: Ready-to-install door kit for VX IT configurations. Feature: 180° baying hinge option and stand-alone siting note. Business Impact: Flexible installation options, enabling full door opening in baying scenarios and safe operation in standalone layouts. Application: Modular rack layouts and standalone enclosures. Feature: PCF cradle-to-gate 50.3 kg CO2 eq (Cat B). Business Impact: Demonstrates environmental responsibility and supports sustainability reporting. Application: Green procurement programs and life-cycle assessments. Feature: Fits VX IT enclosure width 600 mm and height 2,000 mm. Business Impact: Precise fit reduces modification work, accelerates commissioning. Application: Standard VX IT sizing, eliminating guesswork during door replacement. Feature: EAN 4028177955103; ETIM EC000747; ECLASS 27182204. Business Impact: Improves cataloging accuracy and interoperability with ERP and procurement workflows. Application: Industrial purchasing, BOM management, and maintenance planning.
Get a Quick Quote for a Rittal 5301561
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301561?
Enquire Now
FAQs
The 5301561 is designed for VX IT enclosures with a width of 600 mm and a height of 2,000 mm. It ships as a complete door kit, including a comfort handle, security lock 3524 E, and 3 x 130° hinges. If baying is required, a 180° baying hinge is recommended to achieve full opening.
Key specs include material: sheet steel with a spray-finished surface, vented surface area at about 85% perforated, color: door RAL 7035 and VX comfort handle RAL 9005, weight 13.2 kg per pack, and 1 piece per pack. It fits VX IT enclosure dimensions 600 mm by 2,000 mm and is supplied with three hinges and assembly parts.
Environmental consideration is reflected in the cradle-to-gate PCF value of 50.3 kg CO2 eq (Cat B). It carries standard product classifications ETIM EC000747 and ECLASS 27182204, which support interoperability in procurement systems and data-driven sustainability reporting.
Yes. The door is suitable for stand-alone siting with a maximum opening angle of 165°, and when bayed, requires a 180° baying hinge to achieve full 180° opening. This provides installation flexibility for varied enclosure layouts and maintenance workflows.
The kit includes the door with comfort handle for semi-cylinders with security lock 3524 E, 3 x 130° hinges fitted on the inside, and necessary assembly parts. Installation is straightforward for VX IT enclosures; refer to the assembly instruction to confirm hinge alignment and 180° baying requirements for full door operation.
