Rittal 5301612 Door for VX IT enclosures - IP20
Part Number: 5301612
Quick Summary
Rittal 5301612 Door for VX IT enclosures enhances modular cabinet layouts by replacing doors. This design helps engineers avoid downtime during upgrades and simplifies maintenance by providing a single, ready-to-fit door that matches VX IT dimensions. It aligns with IP 20 protection per IEC 60 529 and supports classifications such as ETIM EC000747 and ECLASS 27182204. The spray-finished sheet-steel construction resists fingerprints and corrosion in harsh industrial environments. This durability translates to longer service life and lower maintenance costs across bayed configurations. By pairing with a 3x180° hinge and Comfort handle VX, it reduces installation time and improves ergonomic access for technicians.
Product Information
Extended Description

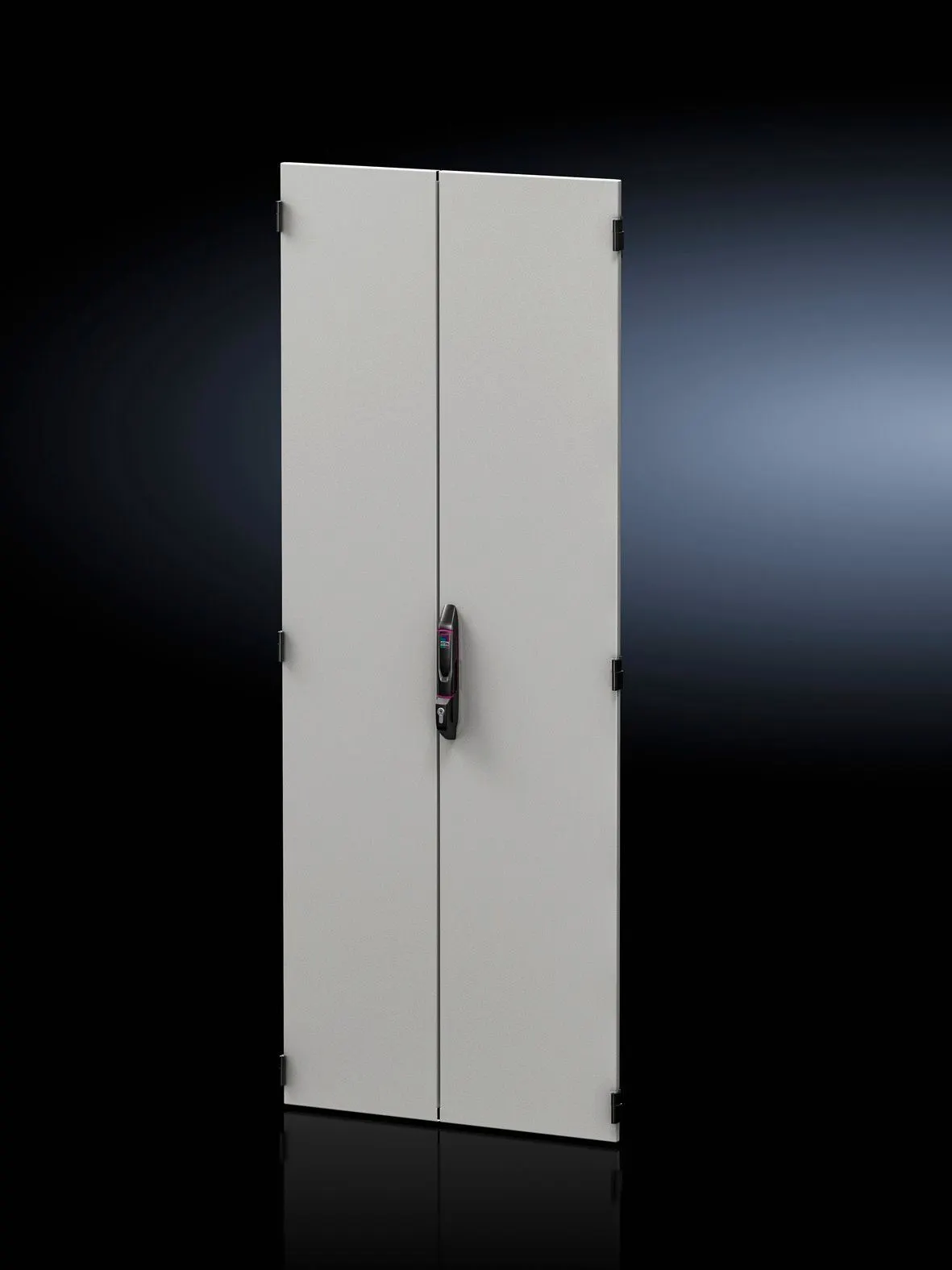

5301612 Rittal: Sheet steel door, vertically divided, solid for VX IT, for enclosure width 800 mm, for enclosure height 2,000 mm, sheet steel, spray-finished, RAL 7035, handle and hinges: RAL 9005
Article number
DK 5301.612
Product description
To replace existing doors. The minimal rotation radius of the individual doors allows the distance between individual bayed enclosure suites to be reduced.
Material
Sheet steel
Surface finish
Spray-finished
Colour
RAL 7035 | Comfort handle VX, hinges: RAL 9005
Supply includes
Door, vertically divided, with comfort handle VX for semi-cylinders with security lock 3524 E, right | 3 x 180° hinges, fitted on each half of the door | Assembly parts
Assembly instruction
For a door opening angle of 180° when baying, a 180° baying hinge is required
Note
Door opening angle for stand-alone siting: max. 240°
IP protection category to IEC 60 529
IP 20
To fit
Enclosure type: VX IT | Width: = 800 mm | Height: = 2,000 mm
Packs of
1 pc(s).
EAN
4028177955134
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
Sheet steel door, vertically divided, solid for VX IT, for enclosure width 800 mm, for enclosure height 2,000 mm, sheet steel, spray-finished, RAL 7035, handle and hinges: RAL 9005
Feature: Sheet steel construction with vertical door split for VX IT enclosures. Business impact: provides robust, long-lasting performance in demanding environments, reducing replacement frequency and maintenance costs. Application: ideal for 800 mm wide, 2000 mm high VX IT bays where structural integrity and consistent aesthetics matter. Feature: Spray-finished surface in RAL 7035 with comfort handle VX and hinges in RAL 9005. Business impact: improves operator ergonomics and reduces fingerprinting or corrosion concerns, lowering service downtime and cleaning effort. Application: suitable for production floors and data centers requiring easy cleaning and durable appearance. Feature: Compatibility with VX IT width and height, 800 mm x 2,000 mm, including 3 x 180° hinges, right-hand option, and assembly parts. Business impact: simplifies ordering, ensures correct fit, and speeds on-site assembly. Application: supports rapid deployment of bayed enclosures with predictable performance. Feature: Baying capability with 180° baying hinge requirement and 240° stand-alone opening limit. Business impact: enables high-density enclosure layouts while preserving access and ventilation. Application: essential for modular racking in compact installations. Feature: Included components and documentation (assembly parts, right-hand hinges, comfort handle VX). Business impact: reduces procurement complexity and installation steps, shortening project timelines. Application: supports installers needing a complete, ready-to-fit door solution with clear assembly guidance.
Get a Quick Quote for a Rittal 5301612
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5301612?
Enquire Now
FAQs
The DK 5301.612 door is designed for VX IT enclosures with width 800 mm and height 2,000 mm. It includes 3 x 180° hinges, a right-hand option, and assembly parts. For baying, a 180° baying hinge is required; stand-alone openings may reach a maximum of 240°. This ensures correct fit and reliable operation in clustered cabinet lines.
Key specs include a sheet steel construction, spray-finished surface in RAL 7035, and hardware finished in RAL 9005. The door provides IP 20 protection per IEC 60 529 and is rated for VX IT enclosure compatibility (800 mm wide, 2,000 mm high). The ETIM and ECLASS classifications (EC000747, 27182204) support procurement and data exchange.
The door features a minimal rotation radius for individual doors, enabling closer spacing between bayed enclosure suites. This design enables higher-density layouts, reducing overall footprint and improving rack visibility and access while maintaining safe operating clearances in busy control rooms.
For baying, you need a 180° baying hinge to achieve full 180° opening between adjacent doors. Stand-alone installations permit up to 240° opening. Ensure correct hinge configuration, right-hand orientation, and included assembly parts. Following the provided assembly instructions minimizes commissioning time and ensures consistent door operation.
The door meets IP 20 protection and aligns with ETIM EC000747 and ECLASS 27182204 classifications, aiding standardized data exchange. The GTIN 4028177955134 and EAN are provided for simple cataloging, and the included documentation supports efficient ordering, installation, and lifecycle maintenance.
