Rittal 5302001 Air Baffle Plate - Dynamic, RAL 9005
Part Number: 5302001
Quick Summary
Rittal 5302001 air baffle plate separates hot and cold zones in enclosures for aisle containment and LCP systems. This helps reduce energy waste and uneven cooling caused by cross-flow between zones. Note: the data references ETIM 9 EC000331 and ECLASS 8.0 27189272 classifications; explicit CE or IP ratings are not listed—confirm certification details with the manufacturer. By integrating with VX IT 19" mounting angles, the solution supports reliable partitioning, improving climate-control performance while maintaining cabinet accessibility and serviceability. This combination delivers measurable business value through optimized cooling energy, easier maintenance, and scalable partitioning for growing automation deployments.
Product Information
Extended Description

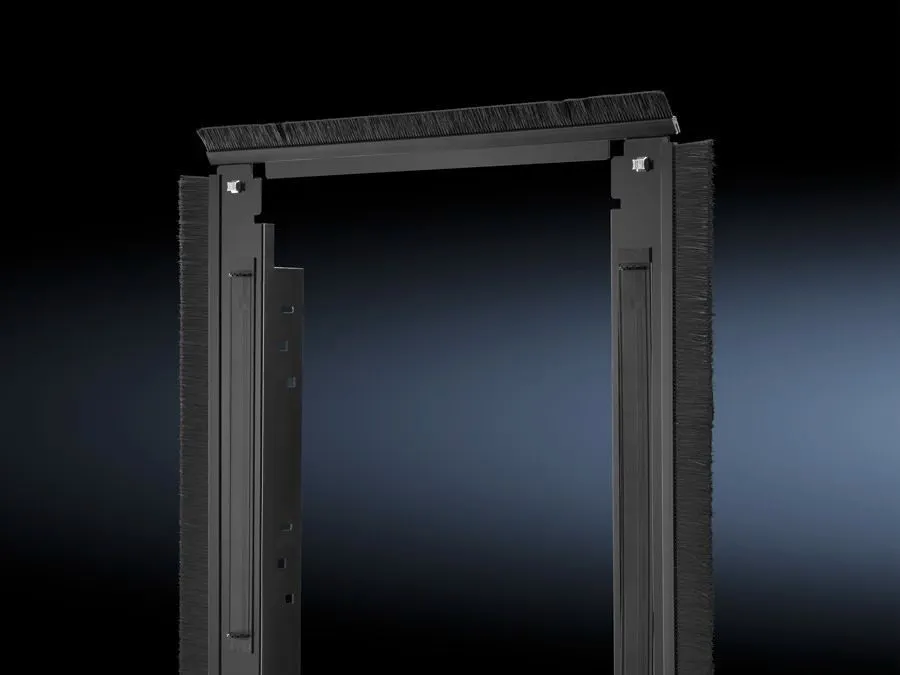

5302001 Rittal: Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 800x1200 mm, RAL 9005
Article number
DK 5302.001
Product description
For selectively boosting the energy efficiency of a climate control system.
Benefits
Vertical brush strip for collision-free shielding with installed rail systems on the outer mounting level.
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Blanking panel: Plastic, ULÂ 94-HB, halogen-free | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RALÂ 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts | 4 blanking panels, 482.6 mm (19"), 1 U
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width:Â = 800 mm | Height:Â = 1,200 mm
Packs of
1 pc(s).
Customs tariff number
73269098
EAN
4028177955165
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 800x1200 mm, RAL 9005
Feature: Dynamic air separation plate for VX IT 19" mounting angles. Business Impact: Enables precise hot/cold zone partitioning, reducing cooling load and improving climate-control efficiency in industrial cabinets. Application: Suitable for aisle containment or LCP systems in data centers and manufacturing facilities. Feature: WxD of 800x1200 mm with RAL 9005 finish. Business Impact: Provides a robust, corrosion-resistant solution with a consistent appearance, reducing maintenance and replacement costs over time. Application: Enclosures requiring standard size and color matching for compliant installations in controlled environments. Feature: Complete assembly set including vertical and horizontal trim panels, brush strips, foam pieces, and blanks. Business Impact: Facilitates rapid on-site installation with minimal parts search, shortening project timelines and lowering labor costs. Application: Ideal for retrofit projects or new builds needing a ready-to-install partitioning kit. Feature: Materials and certifications per data sheet: sheet steel, plastic blanking panels (UL 94-HB, halogen-free), brush strips (UL 94-HB), spray finish. Business Impact: Combines mechanical strength with heat-resistant, flame-retardant components to meet safety and compliance expectations. Application: Suitable for climate-control partitions in controlled environments requiring robust construction. Feature: Installation guidance notes: vertical trim panels with brush strip can be mounted on both front and rear 19" angles. Business Impact: Maximizes flexibility for partition geometry and retrofits, reducing the need for custom fabrication. Application: Fast, adaptable integration into existing VX IT mounting rails for immediate performance gains. Feature: Includes 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 PU foam pieces, assembly parts, and 4 blanking panels. Business Impact: Ensures a complete, install-ready kit minimizes supplier coordination and accelerates delivery schedules. Application: Streamlines project planning for controlled-environment enclosures.
Get a Quick Quote for a Rittal 5302001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302001?
Enquire Now
FAQs
The 5302001 air baffle plate is specifically designed for VX IT 19" mounting angles and includes two vertical and two horizontal trim panels to enable partitioning. The vertical trim panels with brush strips can be fitted on both the front and rear mounting angles, allowing flexible layouts for aisle containment or LCP configurations. The kit’s dimensions, 800x1200 mm, ensure a proper fit within standard VX IT enclosures and align with 19" rack spacing requirements.
The product creates a defined separation between hot and cold zones, reducing cross-flow and improving climate-control efficiency. This translates to lower cooling energy consumption, more even temperatures, and higher overall system reliability. The solution also supports rapid installation with a complete set of trim panels, brush strips, and foam pieces, enabling faster project timelines and consistent partitioning across multiple cabinets.
The supply includes 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 cellular PU foam pieces, assembly parts, and 4 blanking panels sized to 482.6 mm (19") with 1 U height. This comprehensive kit is designed for straightforward on-site assembly with VX IT mounting rails, minimizing additional parts sourcing and simplifying project planning.
The air baffle plate assembly uses sheet steel for structural components, with blanking panels made from plastic (UL 94-HB, halogen-free) and brush strips also in plastic (UL 94-HB). The surface is spray-finished, and the color is RAL 9005. These materials provide durability, flame resistance, and a durable, maintenance-friendly finish suitable for demanding industrial environments.
The data references ETIM 9 EC000331 and ECLASS 8.0 27189272 classifications for product specification and interoperability. Explicit CE or IP ratings are not listed in the provided data, so verify certification details with Rittal for your specific application and regional requirements. The product is positioned for standard industrial use with established classification references to aid procurement and integration.
