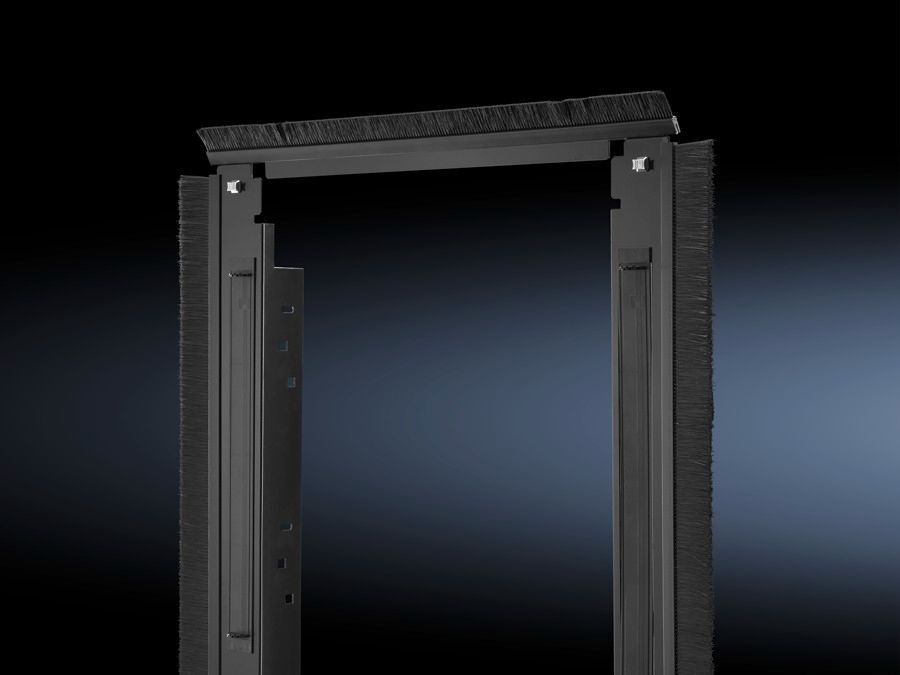

Rittal 5302005 Air Baffle Plate - Dynamic 800x2000 RAL 9005
Part Number: 5302005
Quick Summary
Air baffle plate from Rittal 5302005 isolates hot and cold zones inside enclosures, enabling aisle containment and LCP system integration. For engineers facing energy-inefficient climate control, the dynamic panel delivers predictable separation that reduces cross-heat transfer and lowers cooling loads. The solution aligns with ETIM 9 EC000331 and ECLASS 8.0 27189272 classifications, and uses UL 94-HB plastics with a spray-finished surface in RAL 9005 for safety and durability. By fitting this kit to VX IT 19" mounting rails, you gain modularity and easier maintenance, while the included trim panels and brush strips support tighter seals and faster installation.
Product Information
Extended Description
5302005 Rittal: Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 800x2000 mm, RAL 9005
Article number
DK 5302.005
Product description
For selectively boosting the energy efficiency of a climate control system.
Benefits
Vertical brush strip for collision-free shielding with installed rail systems on the outer mounting level.
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Blanking panel: Plastic, UL 94-HB, halogen-free | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts | 6 blanking panels, 482.6 mm (19"), 1 U
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width: = 800 mm | Height: = 2,000 mm
Packs of
1 pc(s).
Weight/pack
8.12 kg
PCF per pack (cradle-to-gate)
30.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177955202
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 800x2000 mm, RAL 9005
Feature: Dynamic air baffle plate provides precise zoning between hot and cold areas. Business Impact: Improves climate control efficiency, lowers energy consumption, and reduces operating costs. Application: Ideal for enclosures with aisle containment or LCP systems in industrial automation settings. Feature: VX IT 19" mounting compatibility and adjustable partitioning. Business Impact: Simplifies retrofit projects and upgrades by enabling front or rear mounting as needed. Application: Data centers, machine rooms, and control panels requiring flexible zoning. Feature: Material and safety specs—sheet steel body with plastic blanking panels and brush strips (UL 94-HB, halogen-free). Business Impact: Enhances fire safety, durability, and compliance while maintaining clean room-like seals. Application: Harsh industrial environments with temperature cycling. Feature: Complete packing and installation hardware—two vertical trim panels, two horizontal trim panels, four brush strips, four PU foam pieces, and assembly parts. Business Impact: Reduces part counting and assembly time, accelerating deployment. Application: New builds and retrofits with VX IT rails. Feature: Sustainability metrics—PCF 30.9 kg CO2 eq per pack (Cat B). Business Impact: Supports greener procurement and lifecycle assessments. Application: Corporate ESG reporting and supplier compliance. Feature: Assembly instruction notes—vertical trim panels may be fitted on front and rear mounting angles. Business Impact: Improves partitioning flexibility and reduces field modification time. Application: On-site installations requiring on-the-fly zoning changes.
Get a Quick Quote for a Rittal 5302005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302005?
Enquire Now
FAQs
The DK 5302.005 air baffle plate is designed for VX IT 19" mounting angles and comes with 2 vertical and 2 horizontal trim panels, plus 4 brush strips and 6 blanking panels to create a clean partition. The assembly instructions indicate the vertical trim panels may be fitted on both front and rear mounting angles, enabling partitioning without additional hardware. Follow the included steps to secure the panels, attach brush strips for airtight seals, and verify alignment before commissioning.
This plate is intended to separate hot and cold zones inside enclosures using aisle containment or when integrated with an LCP (low-cost partition) system. It supports energy-efficient climate control by reducing cross-heat transfer, making it suitable for data centers, automation cabinets, and industrial control panels where precise thermal zoning improves cooling performance and reliability.
The product adheres to ETIM 9 EC000331 and ECLASS 8.0 27189272 classifications, with UL 94-HB rated plastics for the blanking panels and brush strips. The spray-finished surface in RAL 9005 adds durability, while the overall design supports compliant enclosure partitioning in industrial environments. These references help with technical data sheets and procurement classifications.
Each pack weighs 8.12 kg and contains all required components for a single installation: 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 PU foam pieces, assembly parts, and 6 blanking panels (19", 1U). The pack quantity is 1 per order, simplifying on-site handling and reducing the need for multiple shipments during enclosure upgrades or new builds.
By isolating hot and cold zones, the plate reduces mixing and enhances cooling efficiency, which translates to lower energy consumption and potentially smaller cooling system capacity. The PCF value is 30.9 kg CO2 eq per pack (Category B), supporting sustainability reporting and eco-friendly procurement decisions while maintaining robust enclosure performance.
