Rittal 5302006 Air baffle plate - dynamic/aisle containment
Part Number: 5302006
Quick Summary
Air baffle plate for VX IT 19" mounting angles separates hot and cold zones inside enclosures, ideal for aisle containment. Engineers often struggle with energy waste when hot and cold zones are not properly separated, driving higher cooling costs. This plate uses UL 94-HB rated plastics and halogen-free design, supporting safer installations; in practice, many projects require CE conformity and IP-rated enclosures. By enabling effective partitioning, it improves climate-control efficiency and reduces energy use, while remaining compatible with VX IT 19 mounting angles.
Product Information
Extended Description

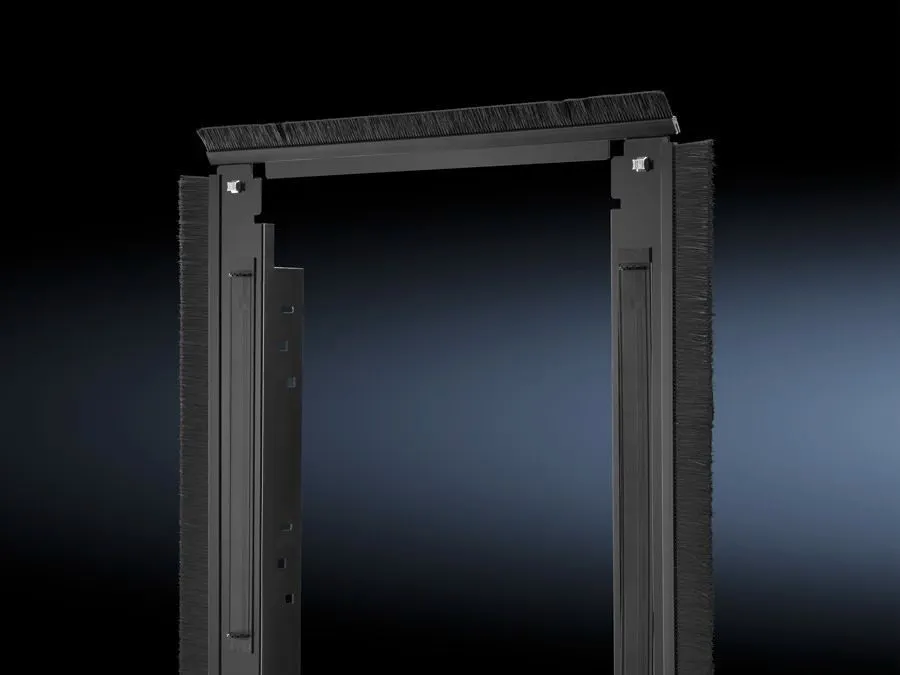

5302006 Rittal: Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 600x2200 mm, RAL 9005
Article number
DK 5302.006
Product description
For selectively boosting the energy efficiency of a climate control system.
Benefits
Vertical brush strip for collision-free shielding with installed rail systems on the outer mounting level.
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Blanking panel: Plastic, UL 94-HB, halogen-free | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width: = 600 mm | Height: = 2,200 mm
Packs of
1 pc(s).
Weight/pack
2.92 kg
PCF per pack (cradle-to-gate)
11.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177955219
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 600x2200 mm, RAL 9005
Feature: Dynamic air separation plate designed to partition hot and cold zones within a cabinet. Benefit: Improves climate control efficiency and reduces cooling load, enabling more predictable IT equipment temperatures in aisle-contained enclosures. Application: Suitable for data centers and industrial cabinets using aisle containment or LCP systems, delivering measurable energy savings and operational reliability. Feature: Complete kit includes 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips and 4 PU foam pieces. Benefit: Fast, seal-focused installation that minimizes air leakage and simplifies retrofits. Application: Front and rear partitioning on VX IT mounting angles for flexible layouts. Feature: Material mix with sheet steel body, UL 94-HB plastic components, and halogen-free construction. Benefit: Safer, compliant installations with reduced fire risk. Application: Environments demanding flame-resistance and halogen-free materials. Feature: Size and weight specify WxD 600x2200 mm and weight per pack 2.92 kg. Benefit: Easy handling and standard cabinet compatibility, minimizing installation time. Application: Fit within common 19" rack dimensions for rapid deployment. Feature: Assembly instruction notes front/rear mounting on 482.6 mm (19") angles. Benefit: Flexible retrofitting and scalable partitioning without extensive rework. Application: Configurable for diverse enclosure layouts.
Get a Quick Quote for a Rittal 5302006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302006?
Enquire Now
FAQs
Installation uses the front and rear 482.6 mm (19") mounting angles. The kit includes two vertical trim panels, two horizontal panels, brush strips and PU foam pieces to seal gaps. Fit the vertical panels on the mounting rails and attach brush strips to create a tight seal, then secure the horizontal panels to complete the partition. Follow the included assembly instructions for best results and verify alignment with existing 19" rails for a stable partition.
By separating hot and cold zones, the plate reduces cross-ventilation and concentrates cooling where it’s needed. This typically lowers overall climate-control load, improves IT equipment temperature stability, and can reduce energy consumption in cabinets with aisle containment or LCP systems. The combination of brush seals and PU foam pieces minimizes leaks, enhancing efficiency without extensive redesign.
Yes. The DK 5302.006 air baffle plate is designed for aisle containment and LCP system applications, providing dynamic separation of hot and cold air within VX IT 19" enclosures. Its 600x2200 mm footprint fits standard cabinet heights, and the included components support modular assembly on existing 19" mounting angles, helping data centers and industrial facilities meet targeted airflow management.
The product uses UL 94-HB rated plastics and halogen-free materials for the non-metal components, supporting safer, compliant installations. While UL 94-HB ensures flame resistance, customers should verify CE conformity and any IP/ SIL requirements specific to their enclosure environment. The product also aligns with ETIM EC000331 and ECLASS 27189272 classifications for procurement systems.
The air baffle plate contributes to energy savings by improving climate-control efficiency, potentially reducing cooling costs over the life of the cabinet. It features a durable steel body and long-lasting plastics with minimal moving parts, translating to low maintenance. When used in matched VX IT mounting setups, installation time is compact, reducing downtime during retrofits and upgrades.
