Rittal 5302007 Air Baffle Plate - Dynamic 800x2200
Part Number: 5302007
Quick Summary
Air baffle plate from Rittal separates hot and cold zones inside enclosures for aisle containment. For engineers grappling with uneven cooling and rising energy costs, proper zoning is essential to protect sensitive components and reduce energy waste. It aligns with ETIM 9 EC000331 and ECLASS 8.0 27189272, supporting accurate procurement data and system interoperability. The solution fits VX IT 19-inch mounting angles and supports LCP configurations, enabling fast, modular partitioning without invasive modifications. With durable sheet steel construction and halogen-free plastics, it also preserves safety and serviceability. By enabling precise airflow control while maintaining access for maintenance, it delivers measurable business value—lower operating costs, longer component life, and scalable climate-control performance.
Product Information
Extended Description

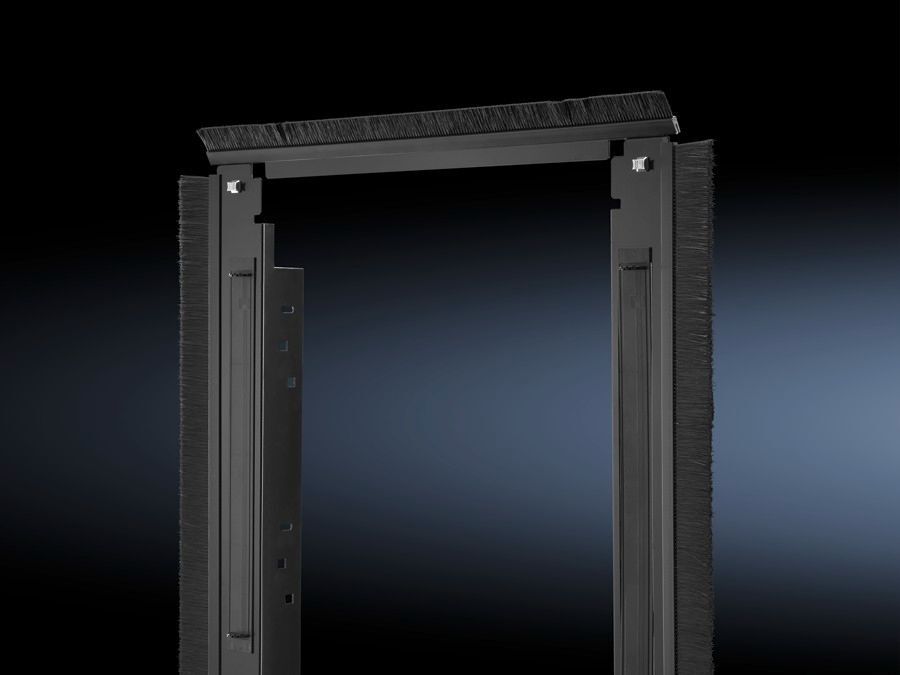

5302007 Rittal: Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 800x2200 mm, RAL 9005
Article number
DK 5302.007
Product description
For selectively boosting the energy efficiency of a climate control system.
Benefits
Vertical brush strip for collision-free shielding with installed rail systems on the outer mounting level.
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Blanking panel: Plastic, UL 94-HB, halogen-free | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts | 6 blanking panels, 482.6 mm (19"), 1 U
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width: = 800 mm | Height: = 2,200 mm
Packs of
1 pc(s).
Weight/pack
8.5 kg
PCF per pack (cradle-to-gate)
32.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177955226
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 800x2200 mm, RAL 9005
Dynamic airflow separation creates distinct hot and cold zones, reducing intermixing and lowering the climate control load. This translates to lower energy consumption and cooler component temperatures, especially when rooms use aisle containment or LCP configurations. It directly supports VX IT 19-inch mounting angles and 800x2200 mm partitions, enabling scalable zoning in modular enclosures. Comprehensive fit and fast installation: the package includes 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 PU foam pieces, assembly parts, and 6 blanking panels (19-inch, 1U). This reduces field labor and ensures consistent partitioning across units. Practical benefit: faster commissioning and fewer call-backs due to misalignment. Material and safety: the core is sheet steel with plastic components (UL 94-HB) and halogen-free materials, providing robust mechanical performance and fire-retardant characteristics in electrical cabinets. Benefit: improved safety and compliance with internal fire-safety standards. Installation flexibility: vertical trim panels can be mounted on front or rear 19-inch mounting angles, allowing partitioning to be tailored to cabinet layout and service access. Sustainability and life-cycle: at 8.5 kg per pack and 32.4 kg CO2 eq per pack (Cat B), the solution balances performance with environmental considerations and logistics. The RAL 9005 color and spray finish help maintain long-term aesthetics in challenging environments.
Get a Quick Quote for a Rittal 5302007
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302007?
Enquire Now
FAQs
The DK 5302.007 is designed for VX IT 19-inch mounting angles and includes two vertical trim panels and two horizontal trim panels to enable front or rear partitioning. It also ships with assembly parts and blanking panels, facilitating precise enclosure zoning with standard 19-inch rack infrastructure.
The plate creates distinct hot and cold zones, reducing intermixing and lowering the climate-control load. This improves cooling efficiency and can lower energy consumption; the product is designed to complement aisle containment and LCP systems, delivering measurable reductions in operating costs over time.
Included items are 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 cellular PU foam pieces, assembly parts, and 6 blanking panels at 1U per 19-inch section, enabling comprehensive partitioning without additional purchases.
Yes. The air baffle plate is specifically designed to separate hot/cold zones inside enclosures for aisle containment and can be deployed within LCP configurations, supporting efficient climate control in data centers and industrial cabinets.
The product aligns with ETIM 9 EC000331 and ECLASS 8.0 27189272 for data standardization and interoperability. It also carries a global EAN (4028177955226) to streamline sourcing and catalog integration.
