Rittal 5302008 Air Baffle Plate - VX IT 19, 600x2450
Part Number: 5302008
Quick Summary
Rittal air baffle plate for VX IT 19" enclosures separates hot and cold zones for efficient climate control. Without proper partitioning, airflow mixing increases energy use and stresses cooling systems. It aligns with ETIM EC000331 and ECLASS 27189272 classifications and uses UL 94-HB-rated plastics for safety. This solution supports aisle containment and LCP system layouts, delivering tangible business value through lower operating costs and improved reliability. Designed for retrofit or new builds, it combines robust materials with easy installation to minimize downtime while maximizing enclosure performance.
Product Information
Extended Description

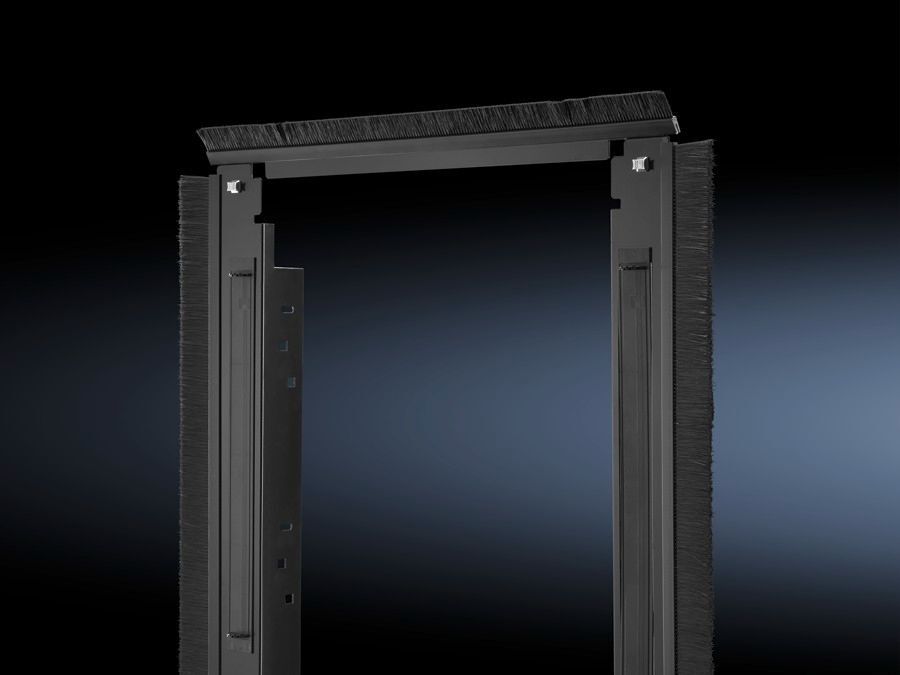

5302008 Rittal: Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 600x2450 mm, RAL 9005
Article number
DK 5302.008
Product description
For selectively boosting the energy efficiency of a climate control system.
Benefits
Vertical brush strip for collision-free shielding with installed rail systems on the outer mounting level.
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Blanking panel: Plastic, ULÂ 94-HB, halogen-free | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RALÂ 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width:Â = 600 mm | Height:Â = 2,450 mm
Packs of
1 pc(s).
Weight/pack
2.52 kg
PCF per pack (cradle-to-gate)
9.6Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177955233
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, dynamic, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxD: 600x2450 mm, RAL 9005
Feature: Dynamic air baffle plate creates a controlled partition between hot and cold zones. Business impact: reduces ambient air mixing, improving climate-control efficiency and lowering energy consumption. Application: ideal for VX IT 19" enclosures using aisle containment or LCP configurations. Feature: Complete mounting set with 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 PU foam pieces, and assembly parts. Business impact: expedites installation with minimal tools and ensures a tight, maintenance-friendly seal. Application: fits front and rear 482.6 mm (19") mounting angles for partitioning. Feature: 600x2450 mm footprint and RAL 9005 spray-finished surface. Business impact: uniform aesthetics, durable finish, and easy integration into existing enclosures. Application: supports consistent appearance in industrial environments. Feature: Material mix—sheet steel, plastic blanking panels (UL 94-HB, halogen-free) and brush strips (UL 94-HB). Business impact: robust construction with enhanced fire safety. Application: suitable for demanding cabinet environments. Feature: PCF 9.6 kg CO2 eq per pack (Cat B) and weight 2.52 kg per pack. Business impact: measurable sustainability profile and predictable shipping weight for logistics planning. Application: aligns with internal carbon reporting and packaging optimization.
Get a Quick Quote for a Rittal 5302008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302008?
Enquire Now
FAQs
Begin by confirming the enclosure is compatible with 19" mounting angles (482.6 mm). Mount the two vertical trim panels on the front and rear rails, then attach the two horizontal panels. Install the four brush strips and the four PU foam pieces to seal gaps. Use the included assembly parts to secure panels and ensure the unit sits flush with the enclosure face for optimum hot/cold separation.
The plate creates a defined barrier that prevents hot exhaust from mixing with cooled intake air, reducing the cooling load on climate-control equipment. This targeted partitioning minimizes energy consumption, lowers operating costs, and extends the service life of cooling components, especially in cabinets with dense equipment layouts or high heat flux.
Yes. The design explicitly supports aisle containment and LCP configurations. The vertical and horizontal trim panels integrate with VX IT 19" mounting rails, enabling effective partitioning in aisle-contained enclosures and enabling modular integration with LCP layouts for scalable cooling solutions.
The plate uses UL 94-HB rated plastics for flame performance and halogen-free materials. It also aligns with ETIM EC000331 and ECLASS 27189272 classifications to aid procurement systems. While explicit CE or SIL markings aren’t listed in the data, the component adheres to common industry safety and classification standards for climate-control components.
Each pack includes two vertical trim panels, two horizontal trim panels, four brush strips, four PU foam pieces, and assembly parts. The weight per pack is 2.52 kg, and packs are sold as single units. This packaging supports straightforward shipping and handling during cabinet retrofit or new installations.
