Rittal 5302010 Air baffle plate - VX IT 19 mounting angles
Part Number: 5302010
Quick Summary
Rittal 5302010 Air baffle plate provides a precise barrier to separate hot and cold zones inside enclosures. In climate-controlled installations, improper partitioning can let warm and cool air mix, reducing efficiency and driving up energy costs. The part leverages UL 94-HB fire-retardant materials and aligns with industry data standards such as ETIM EC000331 and ECLASS 27189272 to support procurement and interoperability. As an enclosure upgrade, it enables aisle containment and efficient LCP system integration. Manufactured with a corrosion-resistant spray finish in RAL 9005, it supports VX IT 19" mounting angles for quick retrofits, improving maintenance access and reducing downtime. The kit’s integration-friendly design helps shorten install time while delivering durable, compliant partitioning for demanding industrial environments.
Product Information
Extended Description

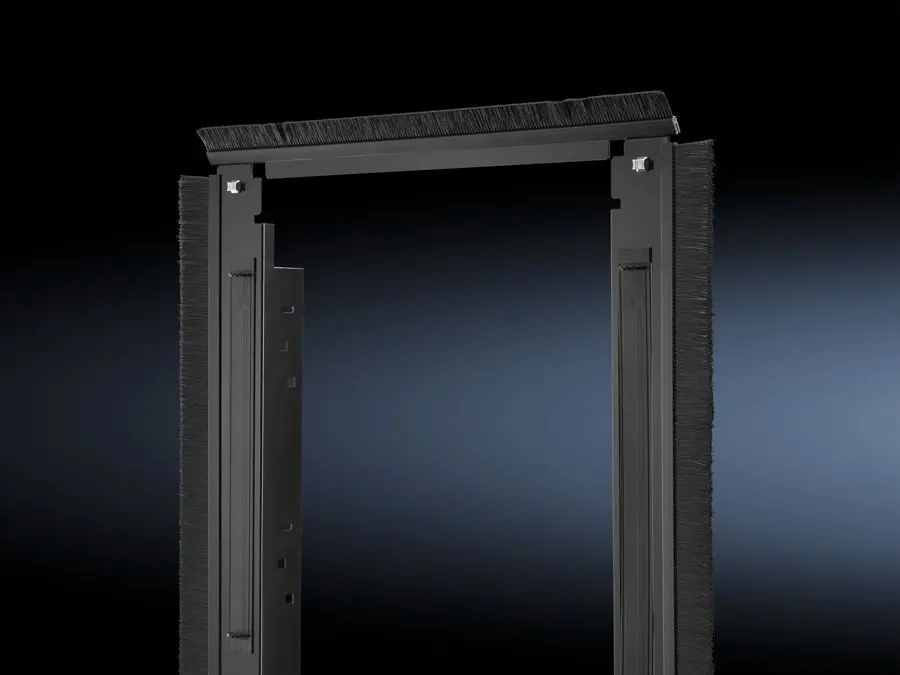

5302010 Rittal: Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 600x1200 mm, RAL 9005
Article number
DK 5302.010
Benefits
To selectively boost the energy efficiency of your climate control system
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Brush strip: Plastic, UL 94-HB | Brush strip fibres: Plastic PA6, halogen-free | Brush strip mounting body: Plastic PVC, contains halogen | Blanking panel: Plastic, fire protection: self-extinguishing to UL 94 HB, halogen-free
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width: = 600 mm | Height: = 1,200 mm
Packs of
1 pc(s).
Customs tariff number
94039910
EAN
4028177955257
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 600x1200 mm, RAL 9005
Feature → Business Impact → Application: The air baffle plate itself acts as a dedicated thermal divider, delivering targeted separation of hot and cold air streams. This directly improves climate control efficiency, reducing cooling loads and energy consumption in data centers, automation cabinets, and electrical enclosures. Application: Use in aisles containment projects or when deploying LCP systems to maintain stable temperatures around critical equipment. Feature → Business Impact → Application: The assembly includes vertical and horizontal trim panels plus brush strips and PU foam pieces, enabling a complete partition kit. Impact: accelerates installation, reduces on-site labor, and minimizes field customization. Application: Ideal for retrofit projects where rapid deployment and predictable performance are required. Feature → Business Impact → Application: Material composition combines sheet steel with halogen-free brush strips and compliant plastics, ensuring mechanical strength and fire safety. Impact: enhances durability in harsh environments while supporting regulatory compliance. Application: Suitable for high-dust, high-traffic enclosures common in manufacturing floors. Feature → Business Impact → Application: RAL 9005 spray finish provides color consistency and corrosion resistance. Impact: protects aesthetics and longevity, easing facility-standard audits. Application: Matches standard enclosure aesthetics and simplifies maintenance routines. Feature → Business Impact → Application: The unit is designed for VX IT 19" mounting angles with a WxH of 600×1200 mm. Impact: guarantees compatibility and a clean integration path with existing rack infrastructure. Application: Fits standard 600×1200 mm partitions in modular enclosures, reducing the need for custom fabrication. Feature → Business Impact → Application: Documentation and data alignment (ETIM EC000331, ECLASS 27189272) streamline procurement and BOM management. Impact: lowers procurement risk and speeds purchasing cycles. Application: Ideal for engineering teams seeking tight integration with MRO catalogs and ERP systems.
Get a Quick Quote for a Rittal 5302010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302010?
Enquire Now
FAQs
The assembly uses the VX IT 19" mounting angles, with vertical and horizontal trim panels that align to standard 482.6 mm (19") racks. Include brush strips and PU foam pieces for a tight seal. Follow the supplied assembly instructions to ensure proper partitioning and airflow control, minimizing gaps that could bypass the barrier.
Expect improved separation of hot and cold air streams, leading to reduced cooling loads and energy consumption. The self-extinguishing UL 94-HB material supports fire safety, while the 600x1200 mm footprint matches standard VX IT partitions, delivering reliable, consistent climate control.
Yes. The design is specifically intended to partition enclosures for aisle containment and LCP system configurations. It supports efficient climate zoning, enabling more precise temperature control around critical equipment and improving overall system efficiency.
Key specifications include UL 94-HB fire-retardant material, plus data-standards alignment with ETIM EC000331 and ECLASS 27189272 to aid procurement and interoperability. CE marking is not listed in the data; verify local compliance requirements with the supplier for regulated environments.
By improving climate control efficiency and reducing energy load, you can realize lower operational costs and enhanced equipment reliability. Quick installation minimizes downtime, and standardized components simplify future maintenance, supporting long-term ROI through energy savings and improved uptime in automation cabinets.
