Rittal 5302013 Air Baffle Plate - VX IT 19in Aisle Containment
Part Number: 5302013
Quick Summary
Rittal 5302013 Air Baffle Plate is used to separate hot/cold zones inside enclosures with aisle containment. This helps prevent cross-heat transfer and reduces load on climate control, especially in high-density cabinets. While many industrial enclosures carry CE-like certifications and IP-related features, verify the exact rating for this model in the datasheet. Designed for VX IT 19" mounting and aisle containment, it supports energy-efficient climate control and aligns with traceable environmental data. That translates to lower operating costs and improved uptime for critical automation systems. Users appreciate the straightforward installation and clear compatibility with VX IT 19" mounting angles. The product ships with complete trims, brushes, and blanking panels.
Product Information
Extended Description

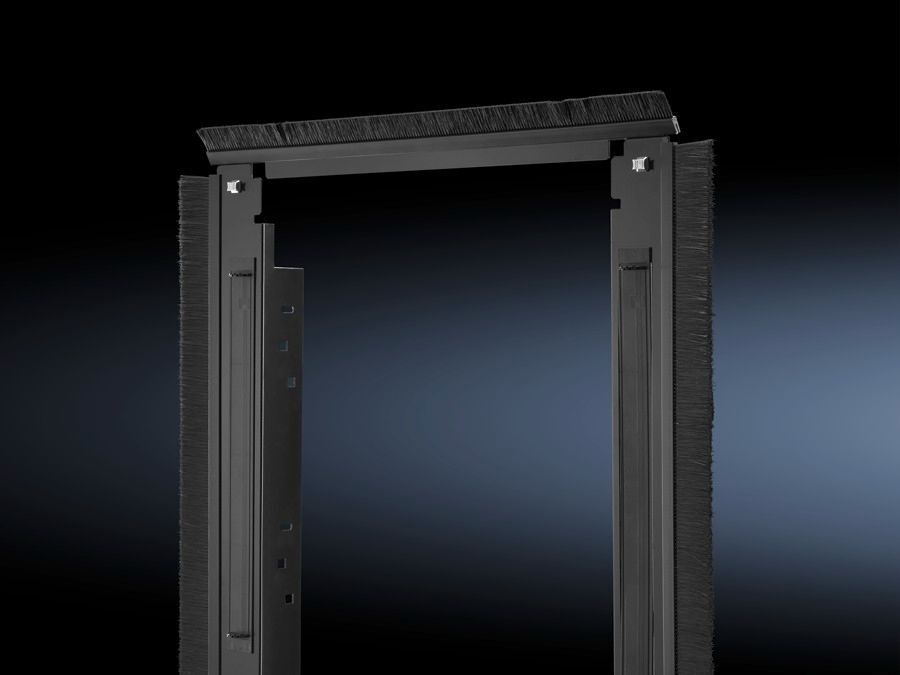

5302013 Rittal: Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 800x1800 mm, RAL 9005
Article number
DK 5302.013
Benefits
To selectively boost the energy efficiency of your climate control system
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Blanking panel: Plastic, ULÂ 94-HB, halogen-free | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RALÂ 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts | 6 blanking panels, 482.6 mm (19"), 1 U
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width:Â = 800 mm | Height:Â = 1,800 mm
Packs of
1 pc(s).
Weight/pack
8 kg
PCF per pack (cradle-to-gate)
30.5Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177955288
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 800x1800 mm, RAL 9005
Feature → Business Impact → Application: Air baffle plate isolates hot and cold zones within an enclosure, reducing heat transfer and lowering cooling energy consumption; applied to aisle containment or LCP systems to stabilize cabinet temperatures and extend equipment life. Feature → Improved installation efficiency → Application: VX IT 19in mounting angles compatibility with 800x1800 mm footprint enables quick, reliable partitioning without altering enclosure geometry. Feature → Complete kit included → Application: Supplied with vertical and horizontal trim panels, brush strips, PU foam pieces, and blanking panels ensures a tight seal and reduces retrofit downtime. Feature → Durable materials and finish → Application: Sheet steel core with plastic, UL 94-HB components and spray-finished surface in RAL 9005 delivers robust performance in industrial environments. Feature → Environmental and cost impact → Application: PCF values and low CO2 footprint per pack support sustainability goals while delivering measurable energy savings over the system lifetime. Feature → Installation guidance → Application: Assembly instructions allow front or rear mounting of vertical trim panels for flexible partitioning, improving adaptability to different enclosure layouts.
Get a Quick Quote for a Rittal 5302013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302013?
Enquire Now
FAQs
To install the 5302013 Air Baffle Plate, align the 800x1800 mm panel with the VX IT 19" mounting angles and secure the vertical and horizontal trim panels as described in the assembly instructions. The kit includes brushes and foam pieces to seal gaps; mount may be front or rear as needed for effective hot/cold zone partitioning.
Energy savings depend on enclosure size, climate control approach, and how well the hot and cold zones are isolated. By reducing heat transfer between zones, the cooling system experiences lower load, fans run less aggressively, and compressors cycle less frequently. In practice, users report more stable temperatures and reduced energy consumption when integrated with aisle containment or LCP systems.
Yes, the 5302013 Air Baffle Plate is designed for aisle containment and LCP configurations, making it suitable for both data centers and industrial cabinets. Its VX IT 19in mounting compatibility and 800x1800 mm footprint enable efficient partitioning without expanding the enclosure footprint. For best results, pair with the included trim panels and brush seals.
This product is documented with ETIM 9 EC000331 and ECLASS 8.0 27189272 classifications, which support procurement systems and data accuracy. Customs tariff is 73269098 and EAN 4028177955288. Please verify CE, IP, or SIL certifications on the datasheet for your regulatory needs, as these may vary by market.
Maintenance centers on keeping brush seals and foam pieces intact to maintain isolation. The kit includes replacement pieces, and modular trim panels ease on-site replacement. ROI comes from lower energy use, fewer cooling cycles, and extended equipment life due to more stable enclosure temperatures.
