Rittal 5302016 Air Baffle Plate - VX IT mounting RAL 9005
Part Number: 5302016
Quick Summary
Air baffle plate from Rittal 5302016 separates hot and cold zones inside enclosures for aisle containment and LCP systems. Without effective separation, cooling energy is wasted and hot/cold air mixing increases equipment wear. Certification details are not specified in the data; verify SIL, CE or IP rating requirements with Rittal to ensure site compliance. Designed for VX IT mounting angles, it helps improve climate control efficiency and reduces energy costs in industrial cabinets. Its spray-finished surface, RAL 9005 color, and 600x2000 mm footprint match standard VX IT openings and facilitate quick, tool-friendly installation in existing enclosures. Engineers appreciate the included assembly parts and clear instructions, which streamline partitioning without specialist tools.
Product Information
Extended Description

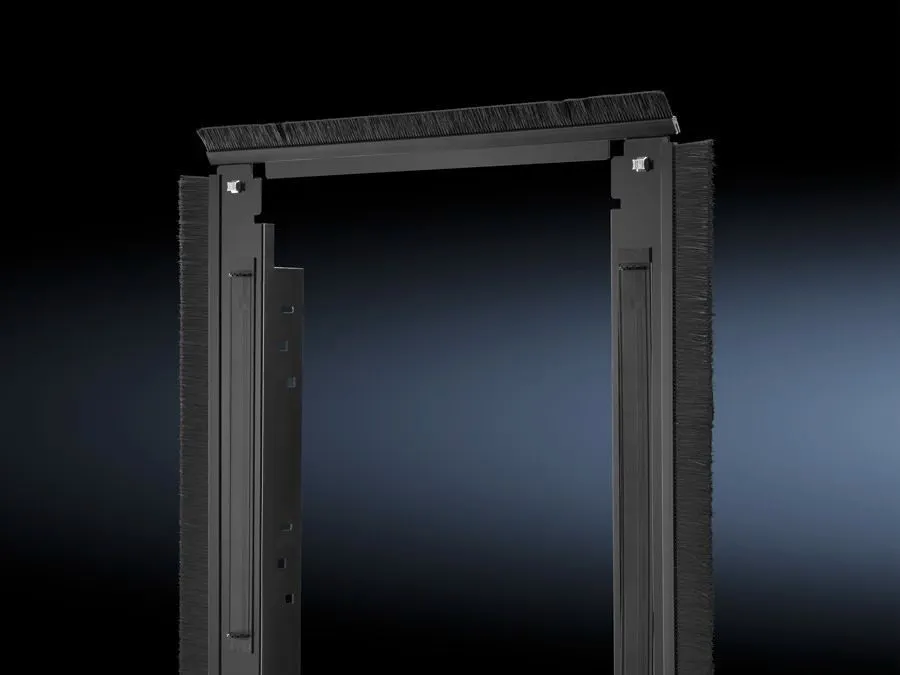

5302016 Rittal: Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 600x2000 mm, RAL 9005
Article number
DK 5302.016
Benefits
To selectively boost the energy efficiency of your climate control system
Applications
To separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system.
Material
Sheet steel | Blanking panel: Plastic, UL 94-HB, halogen-free | Brush strip: Plastic, UL 94-HB
Surface finish
Spray-finished
Colour
RAL 9005
Supply includes
2 vertical trim panels | 2 horizontal trim panels | 4 brush strips | 4 cellular PU foam pieces | Assembly parts
Assembly instruction
The vertical trim panels with brush strip may be fitted on both the front and rear 482.6 mm (19") mounting angles for partitioning.
To fit
Width: = 600 mm | Height: = 2,000 mm
Packs of
1 pc(s).
Weight/pack
2.66 kg
PCF per pack (cradle-to-gate)
10.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177955318
ETIM 9
EC000331
ECLASS 8.0
27189272
Product description
Air baffle plate, for VX IT 19" mounting angles, standard, to separate the hot/cold zones within an enclosure with aisle containment or when using an LCP system. WxH: 600x2000 mm, RAL 9005
Feature: The air baffle plate provides a defined separation plane between hot and cold zones inside an enclosure. This partitioning reduces air mixing, lowering cooling loads and enabling more energy-efficient climate control. Application: It is designed for aisle containment configurations or when used with an LCP system in Rittal VX IT enclosures. Business impact: Lower energy consumption, improved system reliability, and reduced risk of hot spot formation in critical equipment installations. Feature: Durable partitioning components include sheet steel for the core, plastic blanking panels and brush strips rated UL 94-HB. Business impact: Ensures long-term durability and predictable performance in harsh environments, reducing maintenance costs. Application: Supports reliable partitioning in industrial cabinets with frequent access. Feature: Fits 600 mm width and 2,000 mm height, with two vertical trim panels, two horizontal trim panels, four brush strips and four PU foam pieces. Installation is guided by assembly parts and the note that vertical trims may be fitted on front or rear 19" mounting angles. Business impact: Streamlines upgrades and minimizes downtime during cabinet partitioning. Application: Works with VX IT mounting angles for fast, tool-friendly installation. Feature: Spray-finished surface in RAL 9005 provides a durable, corrosion-resistant finish. Business impact: Consistent appearance and resilience in challenging environments, reducing maintenance overhead. Application: Ideal for standardized VX IT enclosures. Feature: Sustainability metrics include PCF per pack of 10.1 kg CO2 eq (Cat B) and pack weight of 2.66 kg. Business impact: Supports environmental reporting and pragmatic logistics planning during procurement. Application: Aligns with green-building and industrial sustainability goals.
Get a Quick Quote for a Rittal 5302016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302016?
Enquire Now
FAQs
The 5302016 is designed for VX IT enclosure configurations and ships with two vertical trim panels, two horizontal trim panels, four brush strips, four PU foam pieces, and assembly parts. The vertical panels may be fitted on front or rear 19" mounting angles, enabling flexible partitioning within standard VX IT frames and minimizing modification work during upgrades.
By creating a defined hot/cold separation, the plate reduces air mixing, lowers cooling loads, and can improve overall energy efficiency of the climate control system. The included components and durable materials help maintain partition integrity over time, supporting consistent enclosure performance and potentially extending equipment life in demanding environments.
Yes. The air baffle plate is specifically intended to separate hot and cold zones within enclosures for aisle containment or LCP configurations. Its 600x2000 mm footprint and RAL 9005 finish are aligned with standard VX IT installations, enabling effective integration into existing containment strategies and contributing to more predictable thermal management.
The provided data does not specify SIL, CE, or IP ratings for this product. It does note UL 94-HB ratings for related plastic components and provides material and finish details. For site compliance and regulatory requirements, confirm applicable certifications with Rittal before use in critical systems.
The pack includes 2 vertical trim panels, 2 horizontal trim panels, 4 brush strips, 4 cellular PU foam pieces, and assembly parts, with a total weight of 2.66 kg per pack. Installation follows the VX IT mounting angle guidelines, with vertical trims usable on both front and rear angles, allowing a straightforward upgrade path that minimizes enclosure downtime.
