Rittal VX 5302.020 - Wiring & Connectivity Rail(Zinc-plated)
Part Number: 5302020
Quick Summary
Rittal VX 5302.020 is a combination rail for cable routing and strain relief on VX IT frames. Engineers often wrestle with cluttered cabling and insufficient strain relief in compact VX enclosures. The data references ETIM EC000322 and ECLASS 27400604 as standard classifications, with zinc-plated sheet steel construction and a 600×600 mm footprint. Designed for easy installation and flexibility, it can be mounted on the inside or outside of the enclosure frame and ships as four assembly parts for scalable maintenance. This combination rail improves reliability and reduces maintenance costs by providing organized cabling layouts and dependable strain relief for demanding industrial environments.
Product Information
Extended Description
5302020 Rittal: Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 600 mm, for enclosure depth 600 mm
Article number
VX 5302.020
Product description

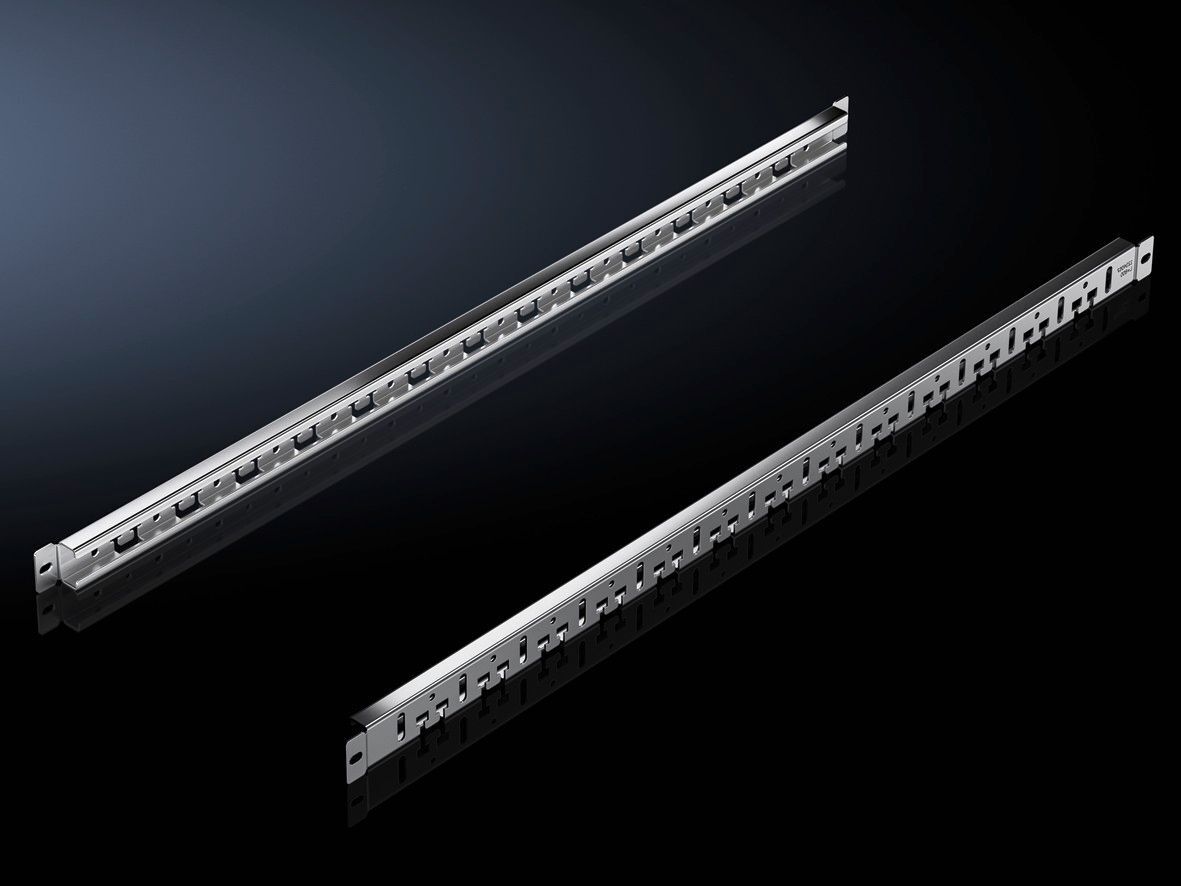

Combination of a C rail for cable clamping with cable clamps and a cable guide rail with T-heads for cable routing. The cables can optionally be secured to the combination rail with cable clamps, cable ties or velcro fasteners to be relieved of strain.
Benefits
May be installed on either the outside or inside of the enclosure frame
Applications
For cable routing and strain relief of routed cables on the VX frame structure
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Direct screw-fastening between the vertical uprights of the enclosure frame
To fit
Enclosure type: VX | VX IT | TX CableNet | Width: = 600 mm | Depth: = 600 mm
Packs of
4 pc(s).
Weight/pack
1.508 kg
PCF per pack (cradle-to-gate)
5.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952522
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 600 mm, for enclosure depth 600 mm
The VX 5302.020 rail combines a C rail for cable clamping with a cable guide rail that uses T-heads for routing, enabling secure cable organization and reduced movement. This directly lowers termination stress and accelerates serviceability, especially in VX IT frame structures used in 600×600 mm enclosures. The assembly supports optional securing with cable clamps, ties, or Velcro fasteners, delivering flexible strain relief and predictable cable pull in harsh industrial environments. Constructed from sheet steel with zinc-plated finish, the unit offers durable corrosion resistance and long service life in field installations. Direct screw-fastening between the vertical uprights provides robust mounting and quick retrofit capability, minimizing downtime during enclosure upgrades. Pack configuration and sustainability metrics are favorable: packs of four, weight per pack 1.508 kg, and PCF 5.7 kg CO2 eq (Cat B), supporting efficient logistics and environmental reporting. Compatibility with VX, VX IT, and TX CableNet enclosures (600×600 mm) simplifies procurement and standardization, while including assembly parts streamlines on-site installation and maintenance planning.
Get a Quick Quote for a Rittal 5302020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302020?
Enquire Now
FAQs
Install by direct screw-fastening between the vertical uprights of the enclosure frame. The kit ships with assembly parts and is designed for fast, repeatable mounting on 600 mm wide VX IT frames.
Yes. It fits VX, VX IT, and TX CableNet enclosures with a 600 mm width and 600 mm depth, and can be mounted inside or outside the frame for flexible routing.
The rail is made from sheet steel with a zinc-plated surface, providing corrosion resistance and durability in industrial environments.
Packs of 4 pieces per box, weight per pack 1.508 kg, and PCF 5.7 kg CO2 eq (Cat B). This supports efficient logistics and cradle-to-gate environmental reporting.
It supports inside or outside mounting on the VX frame, and the assembly parts enable straightforward retrofits without reworking the entire enclosure wiring.
