Rittal 5302021 VX IT Combination Rail - 800x800 Compatibility
Part Number: 5302021
Quick Summary
Rittal 5302021 VX IT Combination Rail for cable routing and strain relief enables reliable cable management on VX IT enclosure frames. Engineers often struggle with cluttered wiring and insufficient strain relief in 800 mm wide, 800 mm deep cabinets. While the data sheet does not list explicit CE or IP certifications, the product aligns with standard industry classifications such as ETIM 9 EC000322 and ECLASS 8.0 27400604 for interoperability. It is designed to be installed inside or outside the enclosure frame and supports cable clamps, ties, or Velcro fasteners to relieve routed cables. This combination rail delivers faster installation, easier maintenance, and improved long-term reliability, supporting efficient, scalable IT and automation infrastructure.
Product Information
Extended Description

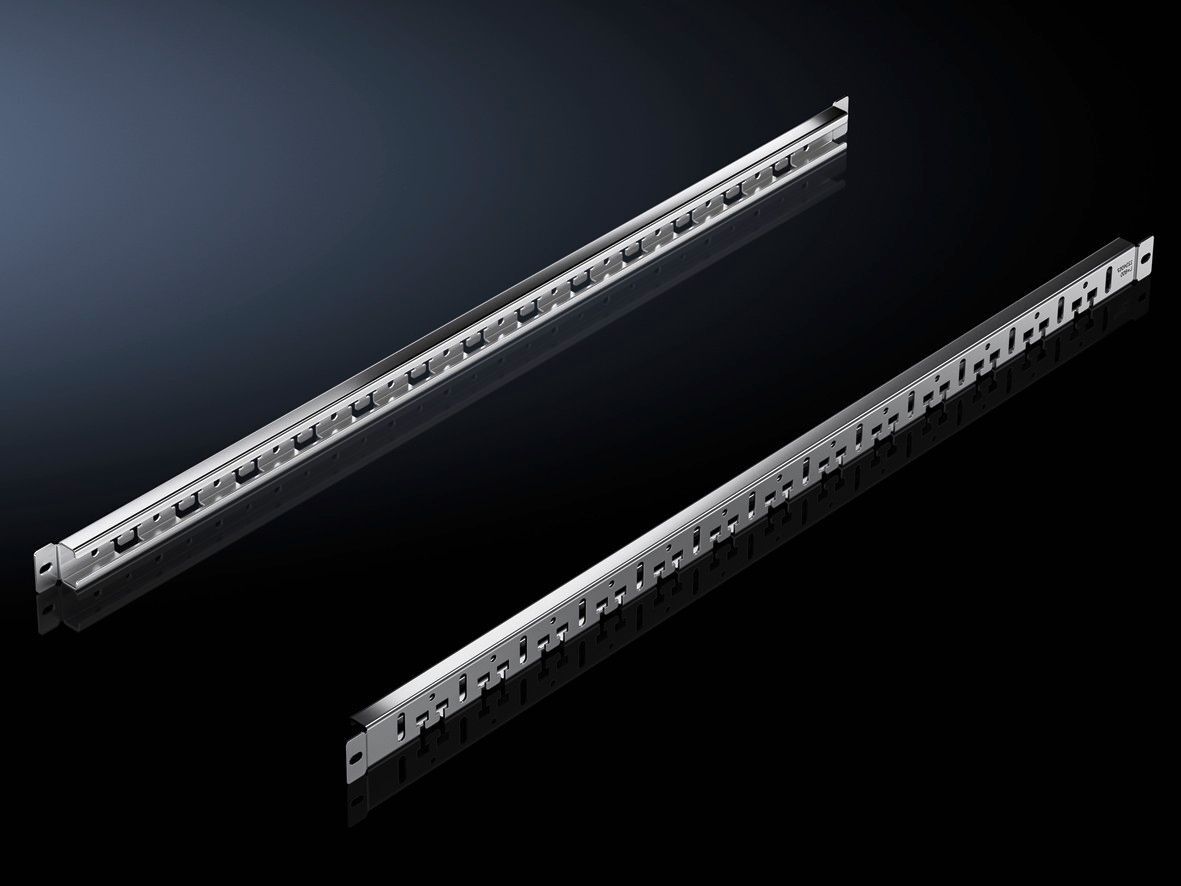

5302021 Rittal: Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 800 mm, for enclosure depth 800 mm
Article number
VX 5302.021
Product description
Combination of a C rail for cable clamping with cable clamps and a cable guide rail with T-heads for cable routing. The cables can optionally be secured to the combination rail with cable clamps, cable ties or velcro fasteners to be relieved of strain.
Benefits
May be installed on either the outside or inside of the enclosure frame
Applications
For cable routing and strain relief of routed cables on the VX frame structure
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Direct screw-fastening between the vertical uprights of the enclosure frame
To fit
Enclosure type: VX | VX IT | TX CableNet | Width: = 800 mm | Depth: = 800 mm
Packs of
4 pc(s).
Weight/pack
2.08 kg
PCF per pack (cradle-to-gate)
7.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952539
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 800 mm, for enclosure depth 800 mm
Feature: Combination rail integrates a C rail for cable clamping with a cable guide rail that features T-heads for routing. Benefit: Provides secure fixation and orderly cabling, reducing movement and wear, which translates to lower maintenance costs in VX frame systems. Application: Ideal for VX IT enclosure frames at 800 by 800 mm, enabling neat, service-friendly cable paths. Feature: Flexible installation options with direct screw-fastening between vertical uprights. Benefit: Simplifies retrofits and on-site updates without disassembling panels, accelerating changeovers in production lines. Application: Suitable for evolving automation layouts in 800 mm wide VX/VX IT installations. Feature: Material and finish—sheet steel, zinc-plated. Benefit: Durable, corrosion-resistant construction that withstands harsh industrial environments, improving long-term reliability. Application: Enclosures exposed to metalworking, manufacturing, and process environments. Feature: Pack configuration and weight—packs of 4, weight per pack 2.08 kg; PCF per pack 7.9 kg CO2 eq (Cat B). Benefit: Predictable material handling and a known carbon footprint for sustainability reporting. Application: Suitable for project scoping and lifecycle analyses. Feature: Compatibility and installation scope—fits VX, VX IT, TX CableNet enclosures with width and depth of 800 mm. Benefit: Streamlines purchasing and compatibility planning, reducing risk of mismatches. Application: Standardized 800x800 VX IT installations. Feature: Supply includes assembly parts. Benefit: Reduces the need for separate parts sourcing, shortening lead times. Application: Commissioning in new builds or upgrades where quick deployment matters.
Get a Quick Quote for a Rittal 5302021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302021?
Enquire Now
FAQs
The 5302021 VX IT combination rail is designed for VX, VX IT, and TX CableNet enclosures with an enclosure width and depth of 800 mm. It combines a cable clamping C rail with a T-head cable guide, enabling secure routing and strain relief within these frames. Installation is possible inside or outside the enclosure frame, using direct screw-fastening between uprights.
It integrates a C rail for clamping with a cable guide rail featuring T-heads, allowing orderly routing and securing of cables with clamps, ties, or Velcro. This design reduces cable movement and stress on routed cables, improving reliability and simplifying maintenance in VX IT enclosure systems.
Yes. The rail is installed by direct screw-fastening between the vertical uprights of the enclosure frame, with the option to mount on either the inside or outside of the frame. This flexibility supports quick retrofits and can adapt to limited space or evolving layouts without removing panels.
The rail is made from sheet steel and zinc-plated for corrosion resistance. This combination provides durability in harsh industrial environments, extending service life and maintaining cable management integrity in plants with higher humidity, dust, or temeprature variations.
The product is shipped in packs of four, with a weight of 2.08 kg per pack and a PCF of 7.9 kg CO2 eq (Cat B). This enables predictable logistics planning and contributes to lifecycle assessments and sustainability reporting, supporting longer-term cost of ownership and compliance goals.
