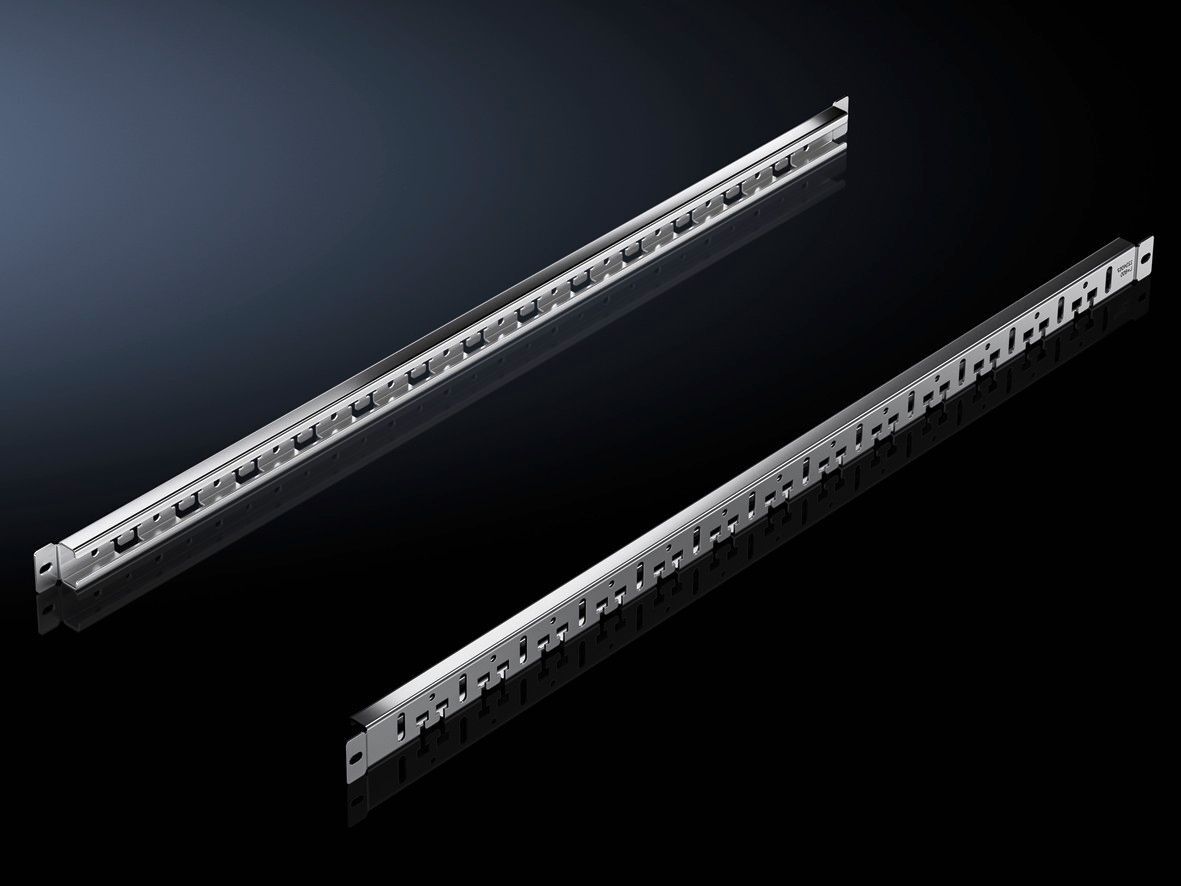

Rittal VX 5302.022 Combination Rail Cable routing 1,000 mm
Part Number: 5302022
Quick Summary
Rittal VX 5302.022 Combination Rail enables cable routing and strain relief on VX IT enclosures. Engineers often contend with cluttered cable paths and stressed harnesses that slow service and raise risk of damage. While many enclosure accessories support basic routing, this rail provides versatile mounting options and a robust zinc-plated sheet-steel construction suitable for demanding environments. Its compatibility with VX and VX IT frames, plus easy inside-or-outside mounting, translates to faster installation, simpler maintenance, and reduced total cost of ownership. For projects requiring efficient cable management and reliable strain relief, this accessory adds critical value to VX frame installations and other VX family configurations.
Product Information
Extended Description
5302022 Rittal: Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 1,000 mm, for enclosure depth 1,000 mm
Article number
VX 5302.022
Product description
Combination of a C rail for cable clamping with cable clamps and a cable guide rail with T-heads for cable routing. The cables can optionally be secured to the combination rail with cable clamps, cable ties or velcro fasteners to be relieved of strain.
Benefits
May be installed on either the outside or inside of the enclosure frame
Applications
For cable routing and strain relief of routed cables on the VX frame structure
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Direct screw-fastening between the vertical uprights of the enclosure frame
To fit
Enclosure type: VX | VX IT | TX CableNet | Width: = 1,000 mm | Depth: = 1,000 mm
Packs of
4 pc(s).
Weight/pack
2.6 kg
PCF per pack (cradle-to-gate)
9.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177952546
ETIM 9
EC000322
ECLASS 8.0
27400604
Product description
Combination rail for VX IT, for cable routing and strain relief of routed cables on the VX frame structure, for enclosure width 1,000 mm, for enclosure depth 1,000 mm
Feature → Business Impact → Application: The VX 5302.022 combines a C rail for cable clamping with a cable guide rail that uses T-heads for organized routing, reducing cable wear and improving airflow around routed paths. This directly boosts reliability and maintenance efficiency in VX IT frame installations, especially where dense cable layouts are common. Feature → Business Impact → Application: It can be installed on either the outside or inside of the enclosure frame, offering flexible retrofit options and minimizing disruption during upgrades. Feature → Business Impact → Application: Direct screw-fastening between vertical uprights enables rapid installation and strong long-term mounting stability, reducing labor time and rework in field deployments. Feature → Business Impact → Application: Packs of four with a weight of 2.6 kg per pack simplify stocking, logistics, and procurement for IT and industrial automation projects. Feature → Business Impact → Application: Sheet steel with a zinc-plated finish delivers corrosion resistance in harsh environments, supporting long service life in factory floors and outdoor cabinet installations. Feature → Business Impact → Application: To fit VX, VX IT, and TX CableNet enclosures at 1,000 mm width and 1,000 mm depth, ensuring broad compatibility across standard VX frames and configurations. Sustainability/PCF: PCF of 9.9 kg CO2 eq per pack (Cat B) highlights a lower environmental footprint per assembly, important for greener data-center and industrial projects. Industry context: The combination rail supports common enclosure standards while enabling predictable installation workflows, reducing risk during commissioning and enabling scalable cable management across multi-panel VX systems.
Get a Quick Quote for a Rittal 5302022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 5302022?
Enquire Now
FAQs
Yes. The VX 5302.022 is designed to fit VX, VX IT, and TX CableNet enclosures with a 1,000 mm width and 1,000 mm depth. It ships as a set of four packs and includes assembly parts, enabling straightforward integration between enclosure vertical uprights.
Install between the vertical uprights of the enclosure frame using direct screw-fastening. The kit supports mounting on either the inside or outside of the frame, and assembly parts are included to simplify initial setup and future retrofits.
The product combines a clamping C rail with a cable guide rail that uses T-heads, delivering organized routing and reliable strain relief for routed cables. This reduces wear, improves serviceability, and helps maintain consistent cable paths in dense VX frame layouts.
In typical industrial practice, VX accessories are designed to support standard enclosures and safety requirements such as CE marking and compatibility with IP-rated systems when installed within compliant cabinets. For environmental considerations, the PCF data for packs is 9.9 kg CO2 eq (Cat B), useful for sustainability reporting.
The product is supplied in packs of four, with a weight of 2.6 kg per pack, enabling straightforward inventory planning and scalable deployment across multiple VX frame projects.
